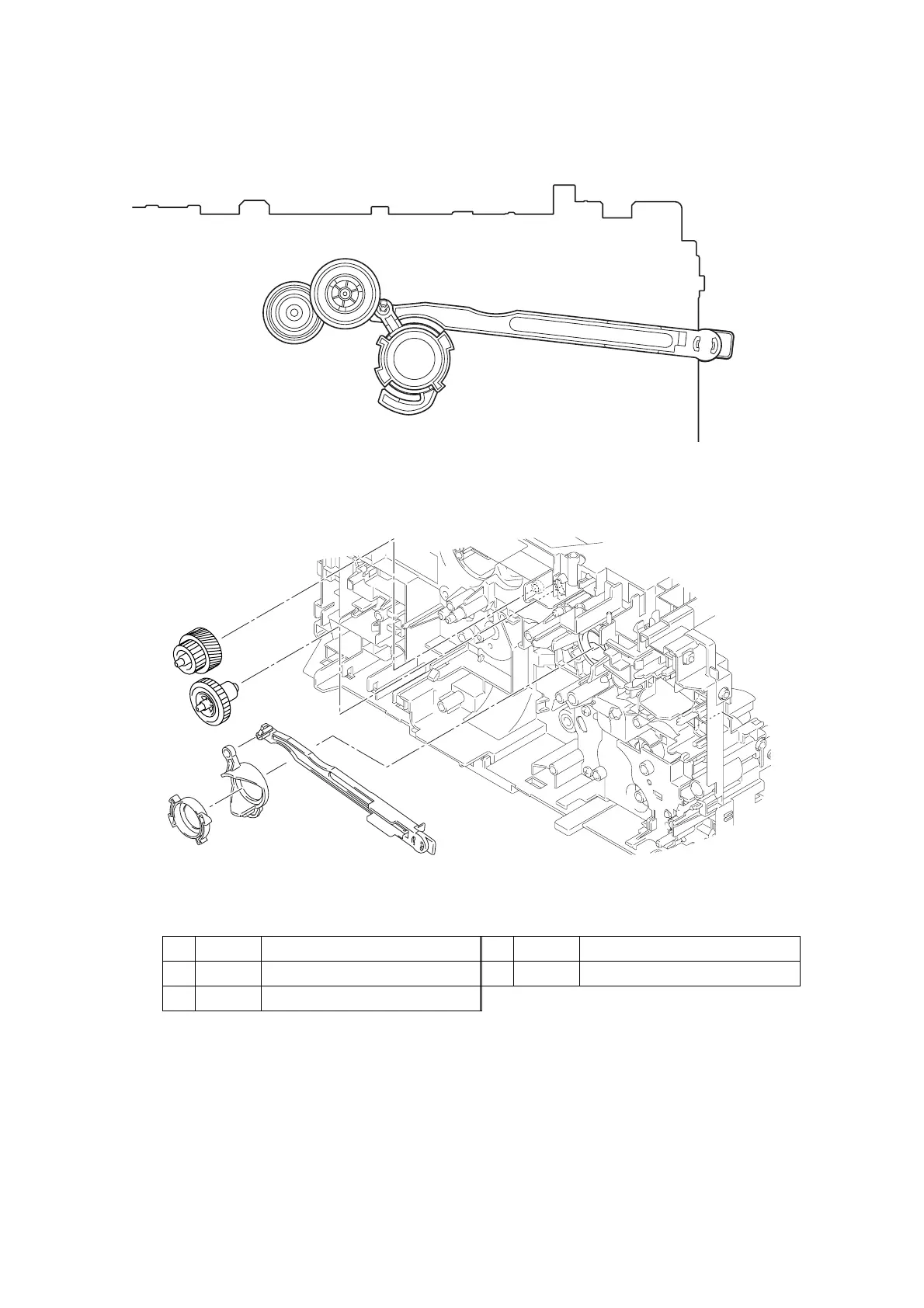

■ Development part
<Layout view>
Fig. 3-6
<Development view>
Fig. 3-7
<Name of gears>
* These parts are subject to change without prior notice
9 LY2064 Develop joint link 12 LY2063 DEV gear 33
10 LY2458 Develop joint lift cam 13 LY2062 DEV gear 21/45R
11 LU2041 Develop joint lift disk
