3-27
Confidential
(3) Remove the two Eject pinch roller L ASSY and the two Eject pinch roller R ASSY from
the Inner chute ASSY.
(4) Remove the four Exit pinch roller springs from the Eject pinch roller L ASSY and the
Eject pinch roller R ASSY.

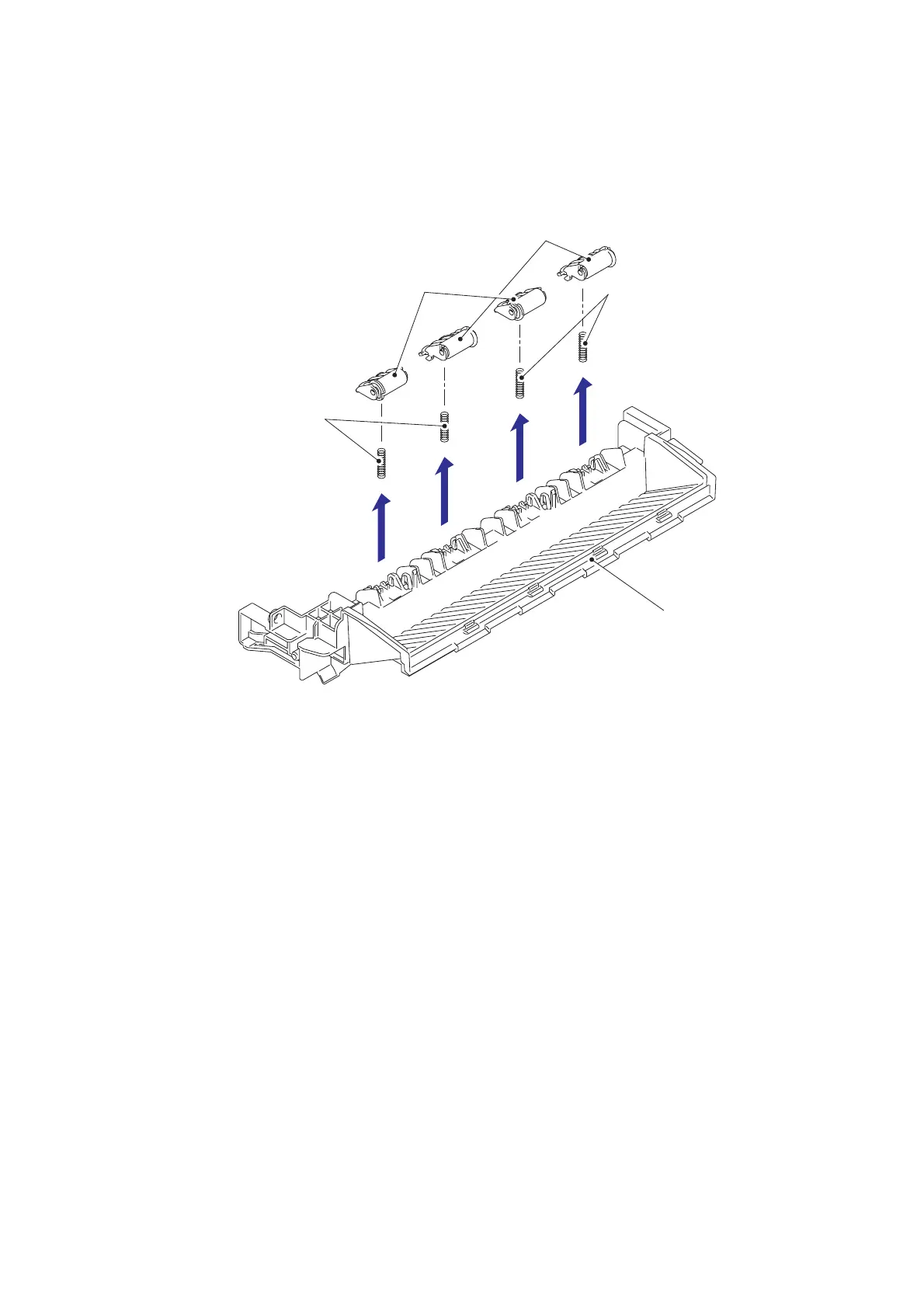

Fig. 3-21
Eject pinch roller R ASSY
Eject pinch roller L ASSY
Exit pinch roller springs
Exit pinch roller springs
Inner chute ASSY
