Brother MFC-8810DW Service Manual

3-14
Confidential

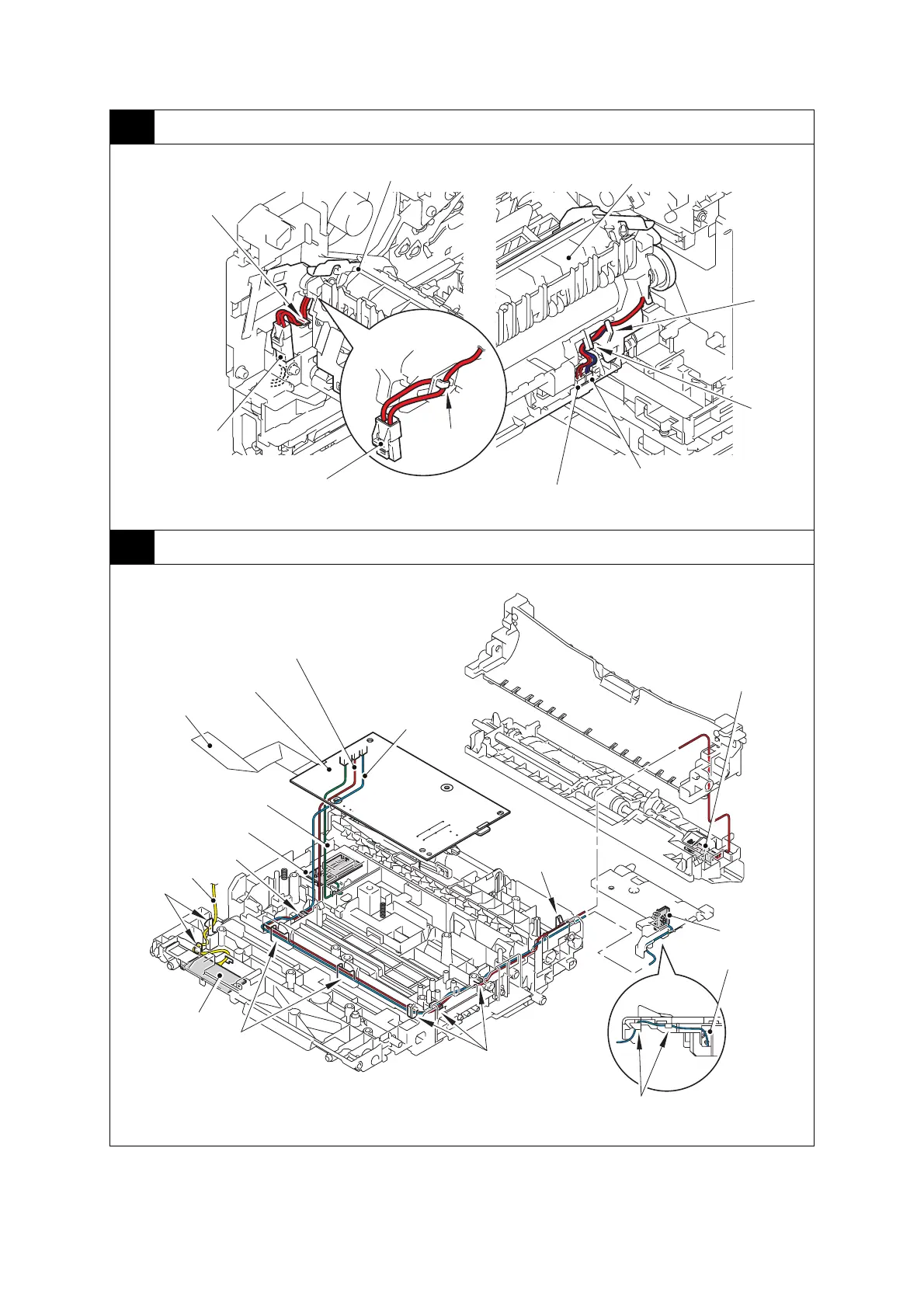

3 Fuser unit
4 High-voltage power supply PCB ASSY
Harness colors may be changed for any reason.
Fuser unit
Hook
Fuser unit
Heater harness (WH)
Center thermistor harness
(GR x 2)
Hook
Hook
Side thermistor harness
(WH x 2)
Low-voltage-
heater harness
Hook
High-voltage power
supply PCB ASSY
T1 paper feed sensor harness
(RD, BL, WH)
MP paper empty sensor
harness (RD, BL, WH)
Main HVPS flat cable
Registration front/rear
sensor harness (RD, BL, WH)
Hook
Hooks
Hooks
Hooks
T1 paper feed
sensor PCB ASSY
Registration front/rear
sensor PCB ASSY
Hook
MP paper empty
sensor PCB ASSY
Hooks
Eject sensor
PCB ASSY
Eject sensor
harness (RD, BL, WH)

Brother MFC-8810DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 1200 x 1200 dpi
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 50, 000 pages
Memory	128 MB
Fax Speed	33.6 kbps
Processor	400 MHz
Connectivity	USB, Ethernet, Wi-Fi Direct
Scanning Resolution	Up to 19200 x 19200 dpi (Interpolated)
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Maximum Paper Size	Legal (8.5" x 14")
Print Speed	Up to 40 ppm
