Brother MFC-8810DW Service Manual

3-60
Confidential

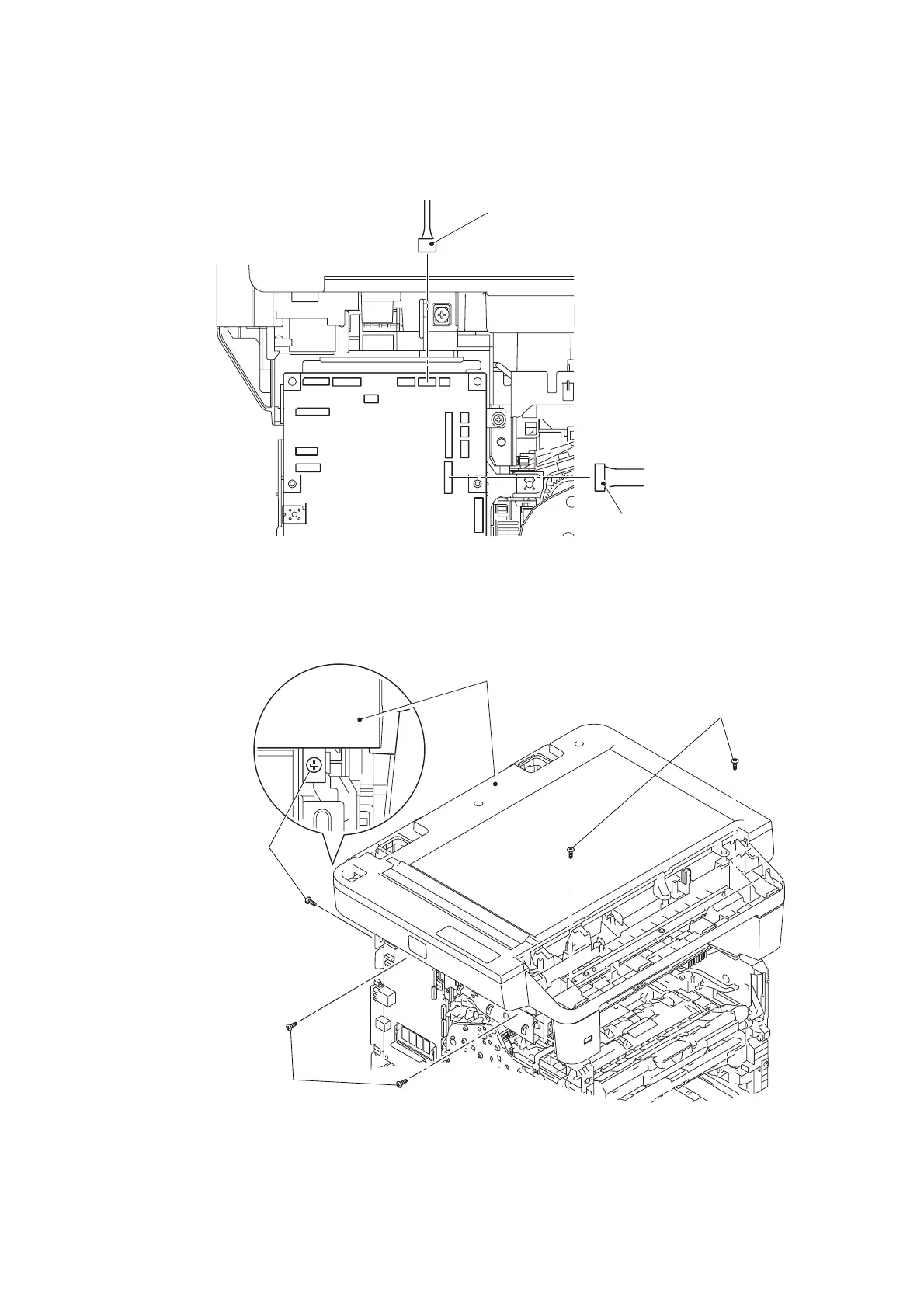

9.11 Document scanner unit
(1) Disconnect the document scanner motor harness and the panel PCB harness, and
release these harnesses from the securing fixtures.
Fig. 3-79
Harness routing: Refer to “1.Main PCB ASSY” and “10.Panel PCB ASSY” .
(2) Remove the five taptite bind B M4x12 screws from the document scanner unit.
Fig. 3-80
Panel PCB harness
Document scanner motor harness
Taptite bind B M4x12
Document scanner unit
Taptite bind B M4x12
Taptite bind B M4x12

Brother MFC-8810DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 1200 x 1200 dpi
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 50, 000 pages
Memory	128 MB
Fax Speed	33.6 kbps
Processor	400 MHz
Connectivity	USB, Ethernet, Wi-Fi Direct
Scanning Resolution	Up to 19200 x 19200 dpi (Interpolated)
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Maximum Paper Size	Legal (8.5" x 14")
Print Speed	Up to 40 ppm
