Brother MFC-8810DW Service Manual

3-43
Confidential
9.9.10 Upper ADF chute

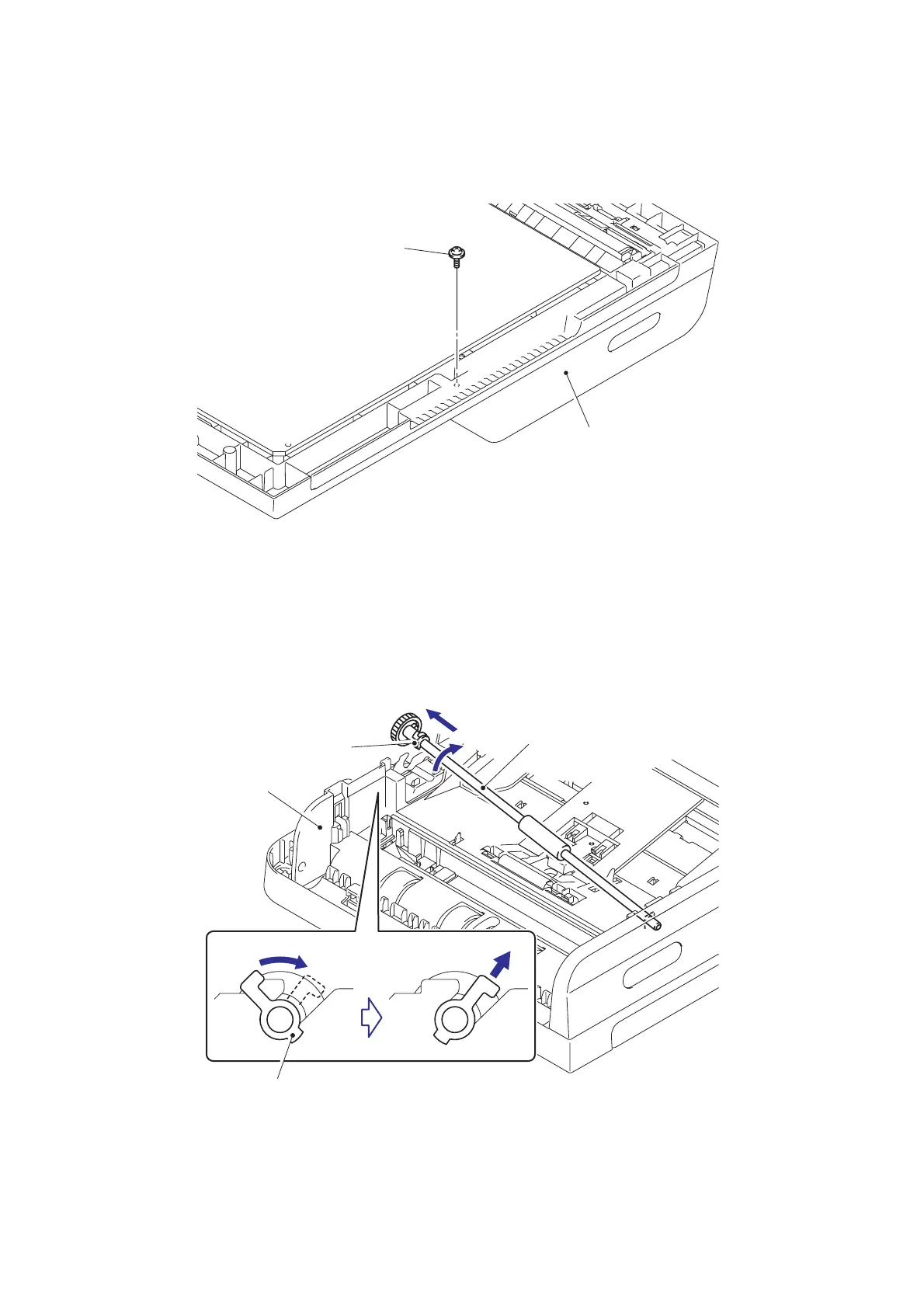

(1) Reverse the ADF unit.
(2) Remove the taptite cup B M3x10 screw from the ADF unit.
Fig. 3-46
(3) Turn the ADF unit back to the normal direction.
(4) Turn the conductive bushing in the direction of the arrow to release the lock. (Duplex
scanning models only)
(5) Remove the other end of the conductive bushing to remove the document feed roller
ASSY 2 from the ADF unit. (Duplex scanning models only)
Fig. 3-47
Upper ADF chute
Taptite cup B M3x10
Document feed roller ASSY 2
ADF unit
Conductive bushing
Conductive bushing

Brother MFC-8810DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 1200 x 1200 dpi
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 50, 000 pages
Memory	128 MB
Fax Speed	33.6 kbps
Processor	400 MHz
Connectivity	USB, Ethernet, Wi-Fi Direct
Scanning Resolution	Up to 19200 x 19200 dpi (Interpolated)
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Maximum Paper Size	Legal (8.5" x 14")
Print Speed	Up to 40 ppm
