Brother MFC-8810DW Service Manual

3-23
Confidential

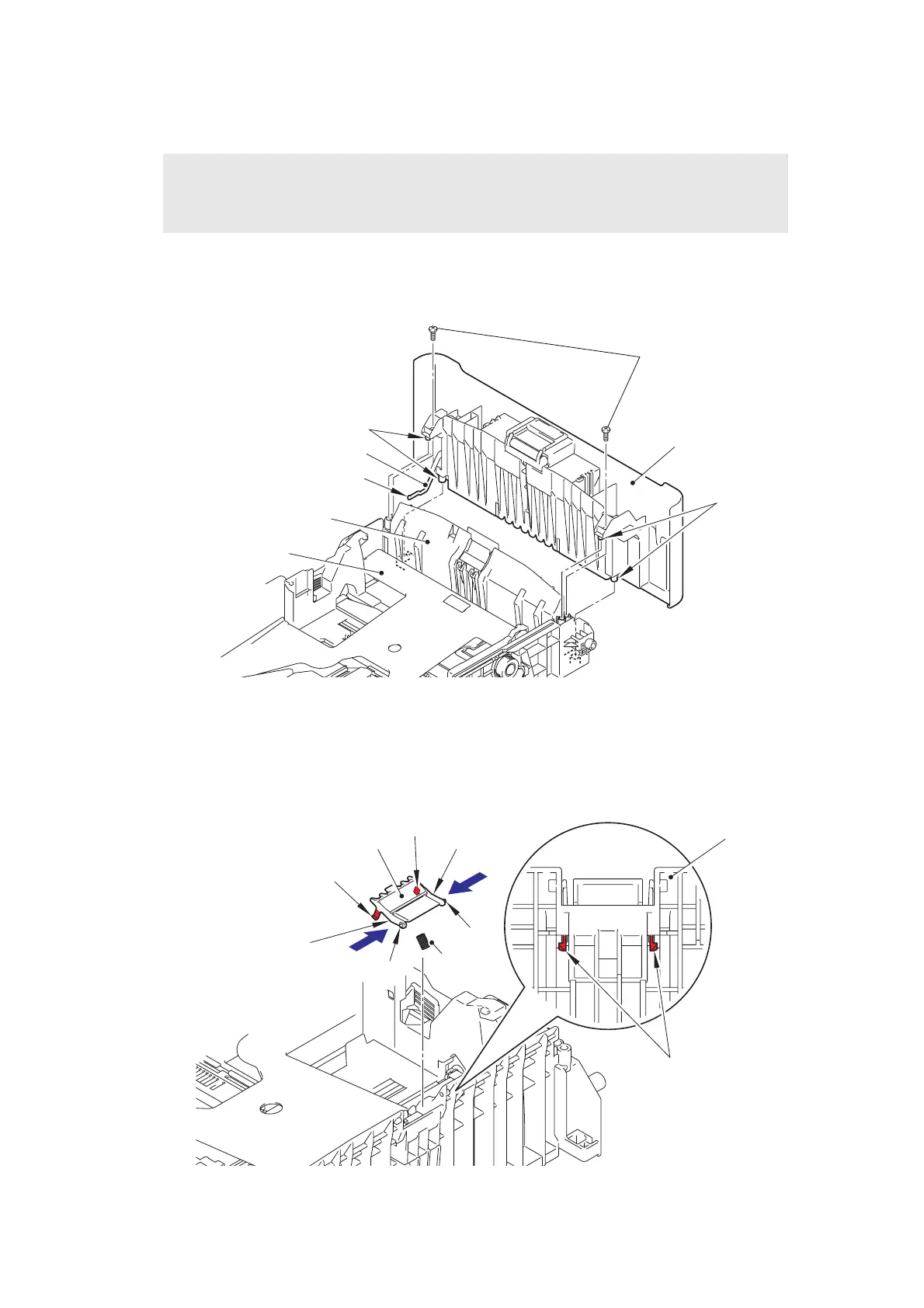

9.2 Paper tray 1
(1) Remove the two taptite bind B M4x12 screws from the paper tray 1.
(2) Lift the plate to remove "A" on the T1 tray indicator from the plate, remove the four
bosses, and then remove the T1 tray cover from the paper tray 1.
Fig. 3-14
(3) Release the two hooks on the T1 separation pad ASSY from the paper tray 1.
(4) Push both arms of the T1 separation pad ASSY in the direction of the arrows to remove
both pins, and then remove the T1 separation pad ASSY from the paper tray 1.
(5) Remove the T1 separation pad spring from the T1 separation pad ASSY.
Fig. 3-15
Note:
• Paper tray 1 (250 sheets, 500 sheets): T1, Paper tray 2 (500 sheets): T2
• The illustration shows paper tray 1 (500 sheets).
Taptite bind B M4x12
T1 tray indicator
Paper tray 1
“A”
Plate
T1 tray cover
Bosses
Bosses
T1 separation pad ASSY
Hook
Arm
T1 separation
pad spring
Hooks
Paper tray 1
Arm
Pin
Pin
Hook

Brother MFC-8810DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 1200 x 1200 dpi
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 50, 000 pages
Memory	128 MB
Fax Speed	33.6 kbps
Processor	400 MHz
Connectivity	USB, Ethernet, Wi-Fi Direct
Scanning Resolution	Up to 19200 x 19200 dpi (Interpolated)
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Maximum Paper Size	Legal (8.5" x 14")
Print Speed	Up to 40 ppm
