Brother MFC-8810DW Service Manual

3-70
Confidential
9.16 NCU PCB ASSY
(1) Remove the screw pan (S/P washer) M3.5x6 DA screw and washer 5 to remove the
NCU earth harness. Release the NCU harness and the NCU earth harness from the
securing fixtures.
(2) Remove the two taptite bind B M4x12 screws to remove the NCU unit from the joint
cover.
(3) Remove the screw pan (S/P washer) M3.5x6 DA screw and washer 5 to remove the
NCU shield cover.
(4) Remove the two taptite cup S M3x6 SR screws to remove the NCU PCB ASSY.

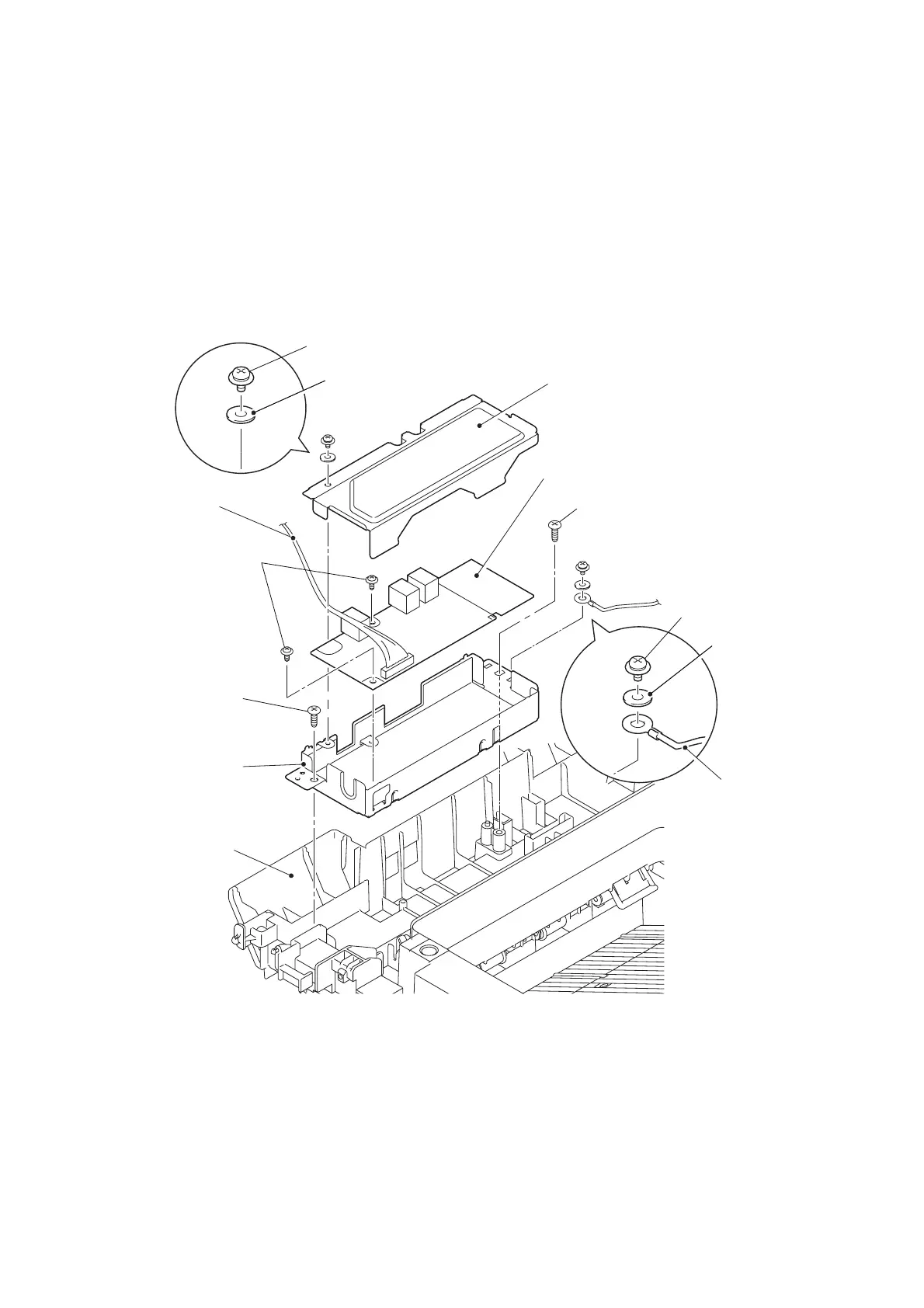

Fig. 3-96
Harness routing: Refer to “8.NCU PCB ASSY / Speaker unit”.
NCU shield cover
Screw pan (S/P washer)
M3.5x6 DA
Taptite cup S M3x6 SR
Taptite bind B M4x12
NCU unit
Joint cover
Screw pan (S/P washer)
M3.5x6 DA
NCU PCB ASSY
NCU earth harness
NCU harness
Taptite bind B M4x12
Washer 5
Washer 5

Brother MFC-8810DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 1200 x 1200 dpi
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 50, 000 pages
Memory	128 MB
Fax Speed	33.6 kbps
Processor	400 MHz
Connectivity	USB, Ethernet, Wi-Fi Direct
Scanning Resolution	Up to 19200 x 19200 dpi (Interpolated)
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Maximum Paper Size	Legal (8.5" x 14")
Print Speed	Up to 40 ppm
