Brother MFC-8810DW Service Manual

3-95
Confidential
9.32 Develop clutch 51R / Develop one way clutch 53
(1) Remove the develop idle gear 53 from the main frame L ASSY.
(2) Remove the develop shaft gear 22 from the main frame L ASSY.
(3) Release the develop clutch harness from the securing fixtures, and remove the develop
clutch 51R from the main frame L ASSY.
(4) Remove the develop one way clutch 53 from the main frame L ASSY.

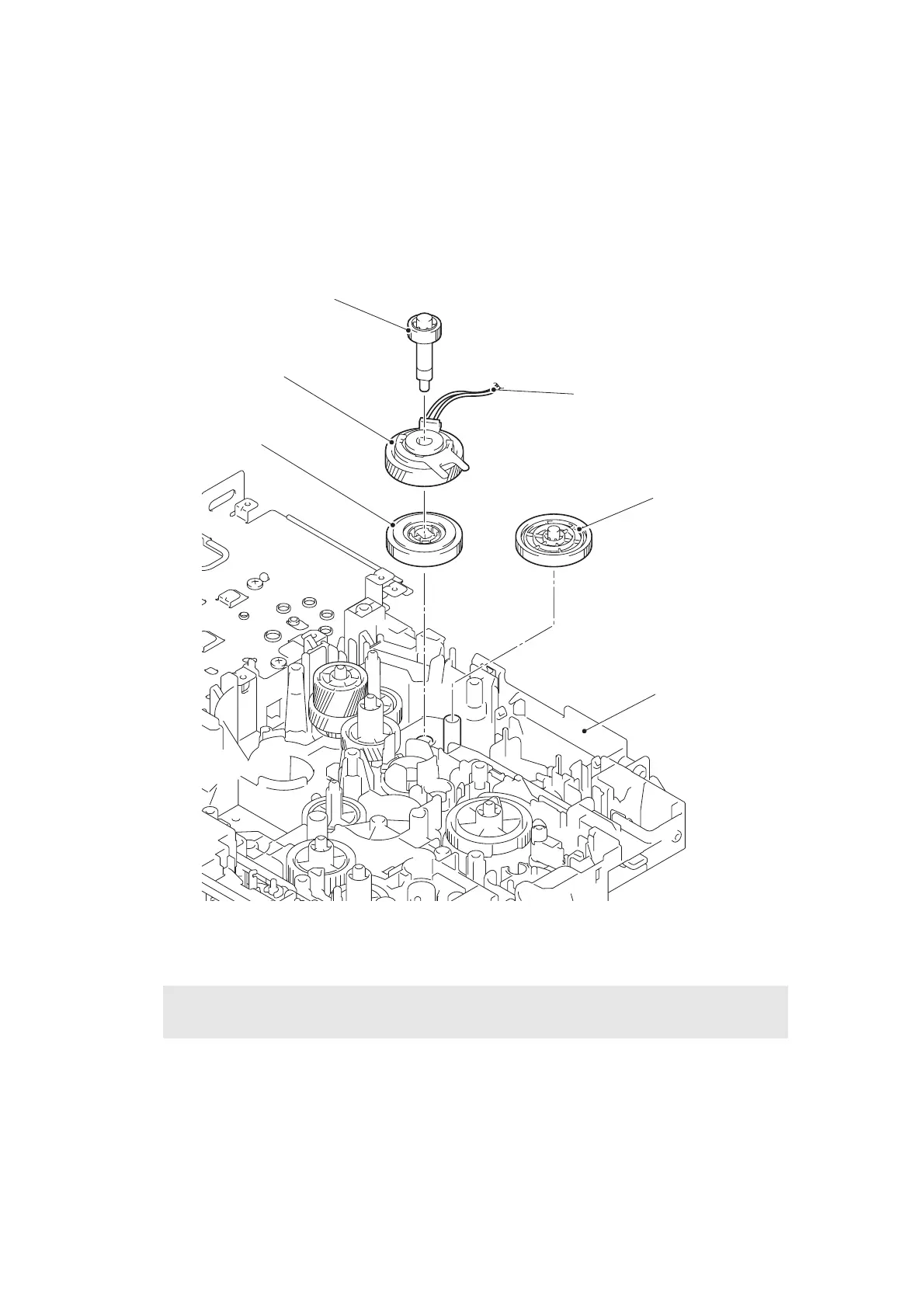

Fig. 3-124
Harness routing: Refer to “2.Relay front PCB ASSY”.
Assembling Note:
• Attach the develop one way clutch 53 so that it faces as shown in the illustration above.
Develop clutch harness
Develop shaft gear 22
Develop one way clutch 53
Develop clutch 51R
Develop idle gear 53
Main frame L ASSY

Brother MFC-8810DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 1200 x 1200 dpi
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 50, 000 pages
Memory	128 MB
Fax Speed	33.6 kbps
Processor	400 MHz
Connectivity	USB, Ethernet, Wi-Fi Direct
Scanning Resolution	Up to 19200 x 19200 dpi (Interpolated)
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Maximum Paper Size	Legal (8.5" x 14")
Print Speed	Up to 40 ppm
