Brother MFC-8810DW Service Manual

3-117
Confidential

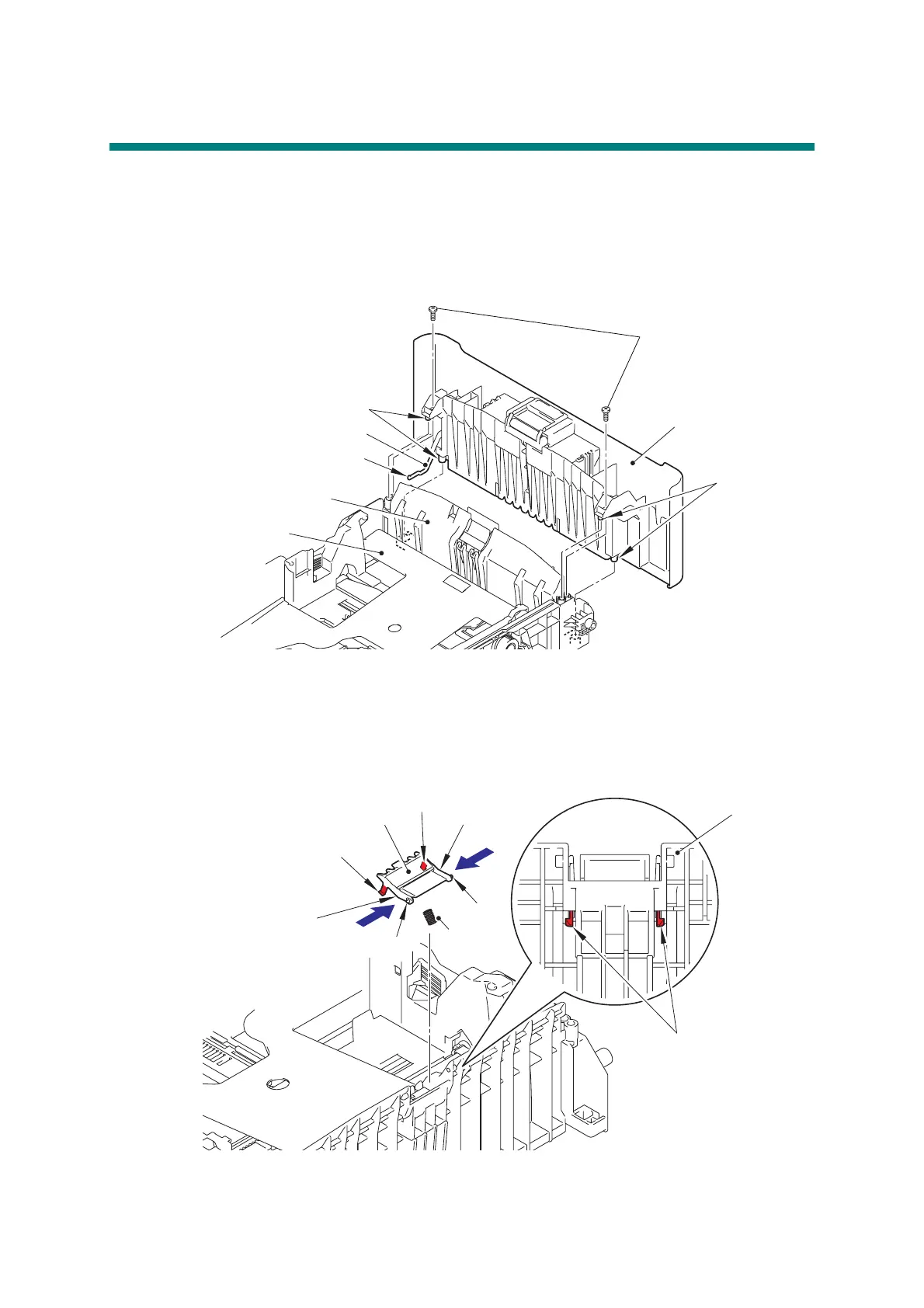

10. DISASSEMBLY PROCEDURE (LT UNIT)
10.1 Paper tray 2
(1) Remove the two taptite bind B M4x12 screws from paper tray 2.
(2) Lift the plate to remove "A" on the T2 tray indicator from the plate, remove the four
bosses, and remove the T2 tray cover from paper tray 2.
Fig. 3-146
(3) Release the two hooks on the T2 separation pad ASSY from paper tray 2.
(4) Push both arms of the T2 separation pad ASSY in the direction of the arrows to remove
both pins, and remove the T2 separation pad ASSY from paper tray 2.
(5) Remove the T2 separation pad spring from the T2 separation pad ASSY.
Fig. 3-147
Taptite bind B M4x12
T2 tray indicator
Paper tray 2
“A”
Plate
T2 tray cover
Bosses
Bosses
T2 separation pad ASSY
Hook
Arm
T2 separation
pad spring
Hooks
Paper tray 2
Arm
Pin
Pin
Hook

Brother MFC-8810DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 1200 x 1200 dpi
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 50, 000 pages
Memory	128 MB
Fax Speed	33.6 kbps
Processor	400 MHz
Connectivity	USB, Ethernet, Wi-Fi Direct
Scanning Resolution	Up to 19200 x 19200 dpi (Interpolated)
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Maximum Paper Size	Legal (8.5" x 14")
Print Speed	Up to 40 ppm
