Brother MFC-8810DW Service Manual

3-93
Confidential
9.30 Toner sensor PCB ASSY
(1) Remove the MP sector gear spring from the main frame L ASSY.
(2) Release the toner sensor harness from the securing fixtures.
(3) Release the two hooks to remove the toner sensor PCB ASSY from the main frame L
ASSY.
(4) Release the two hooks to remove the toner LED holder from the toner sensor PCB
ASSY.

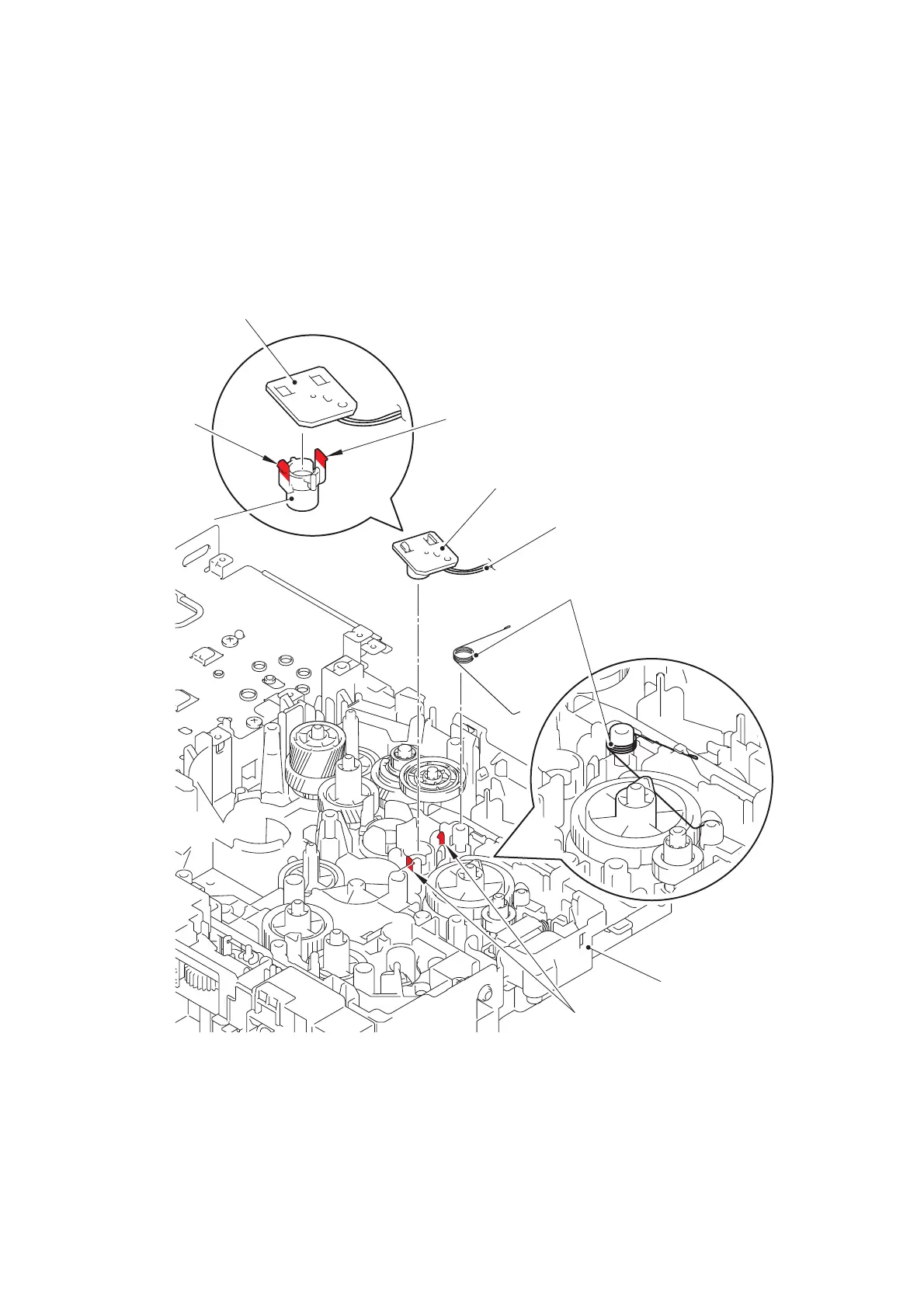

Fig. 3-122
Harness routing: Refer to “2.Relay front PCB ASSY”.
Toner sensor PCB ASSY
Hook
Toner LED
holder
Hook
Toner sensor PCB ASSY
Toner sensor harness
MP sector gear spring
Main frame L ASSY
Hooks

Brother MFC-8810DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 1200 x 1200 dpi
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 50, 000 pages
Memory	128 MB
Fax Speed	33.6 kbps
Processor	400 MHz
Connectivity	USB, Ethernet, Wi-Fi Direct
Scanning Resolution	Up to 19200 x 19200 dpi (Interpolated)
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Maximum Paper Size	Legal (8.5" x 14")
Print Speed	Up to 40 ppm
