Brother MFC-8810DW Service Manual

3-96
Confidential

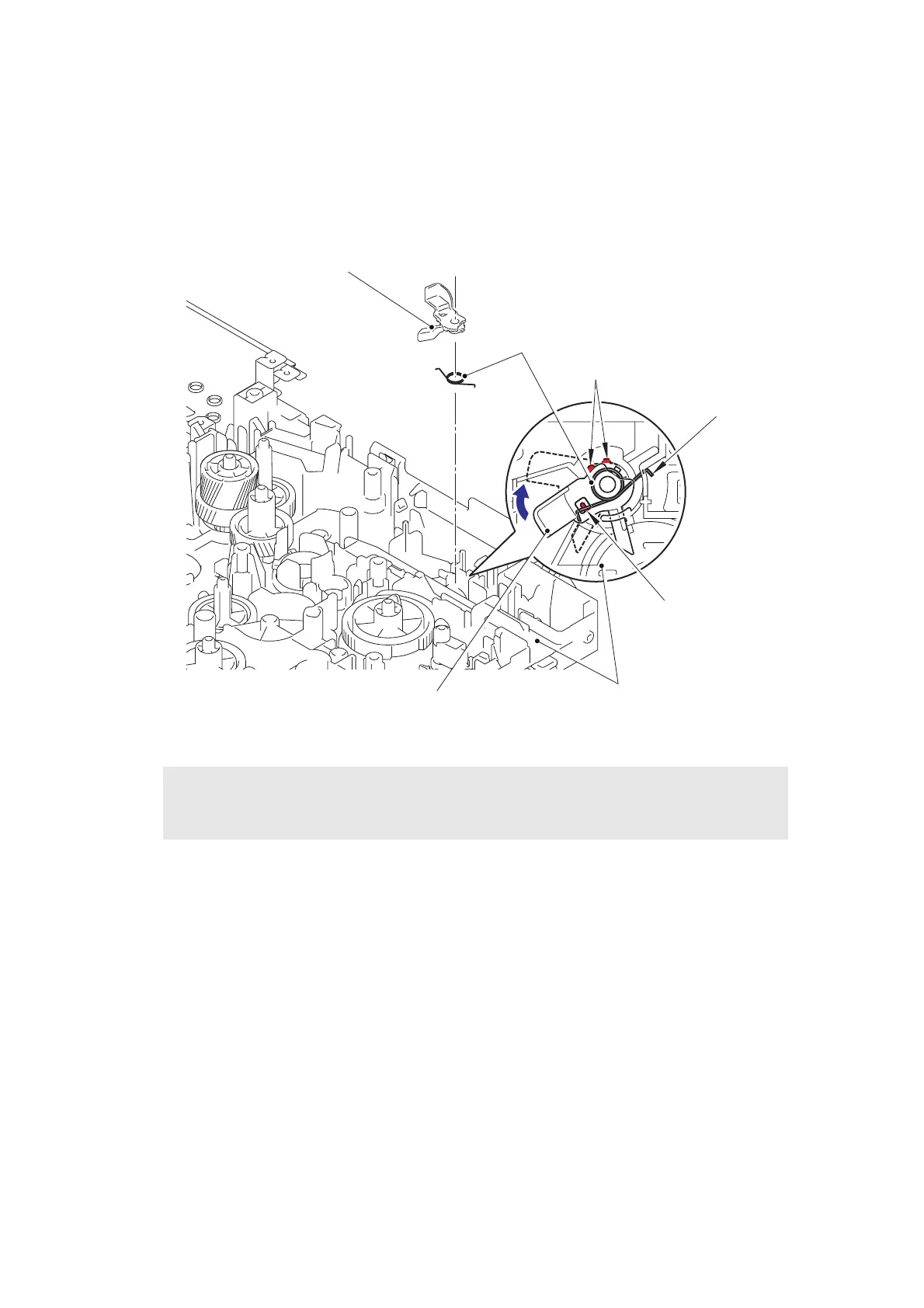

9.33 New toner actuator
(1) Remove "A" on the new toner actuator spring from the main frame L ASSY. Turn the new
toner actuator in the direction of the arrow, and release the hook to remove the new
toner actuator from the main frame L ASSY.
(2) Remove the new toner actuator spring from the new toner actuator.
Fig. 3-125
Assembling Note:
• When attaching the new toner actuator, pay attention to the direction, as shown in the
illustration above.
“A”
Hook
New toner actuator
Main frame L ASSY
New toner actuator spring
New toner actuator
Hooks
