Brother MFC-8810DW Service Manual

3-114
Confidential
9.45 Registration front/rear sensor PCB ASSY / Registration front actuator /
Registration rear actuator / Registration actuator spring
(1) Release the low-voltage power supply harness from the securing fixtures.
(2) Release the two hooks, and remove the paper feed frame from the feed chute.

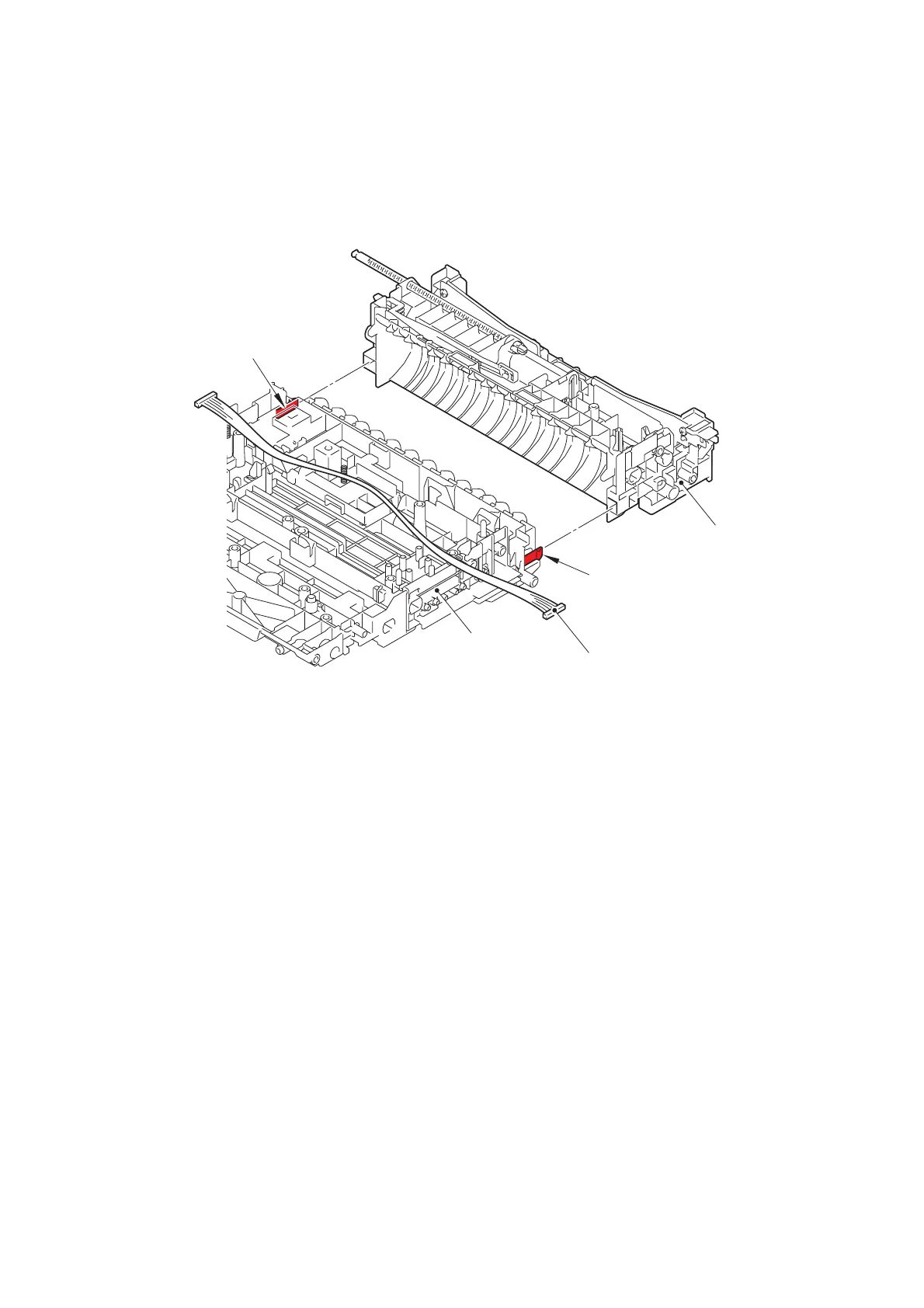

Fig. 3-143
Harness routing: Refer to “7.Low-voltage power supply PCB ASSY”.
Paper feed frame
Hook
Low-voltage power supply harness
Feed chute
Hook
