Brother MFC-8810DW Service Manual

3-101
Confidential
9.37 Back cover sensor
(1) Release the back cover sensor harness from the securing fixtures.
(2) Release the two hooks, and remove the back cover sensor from the main frame L ASSY.

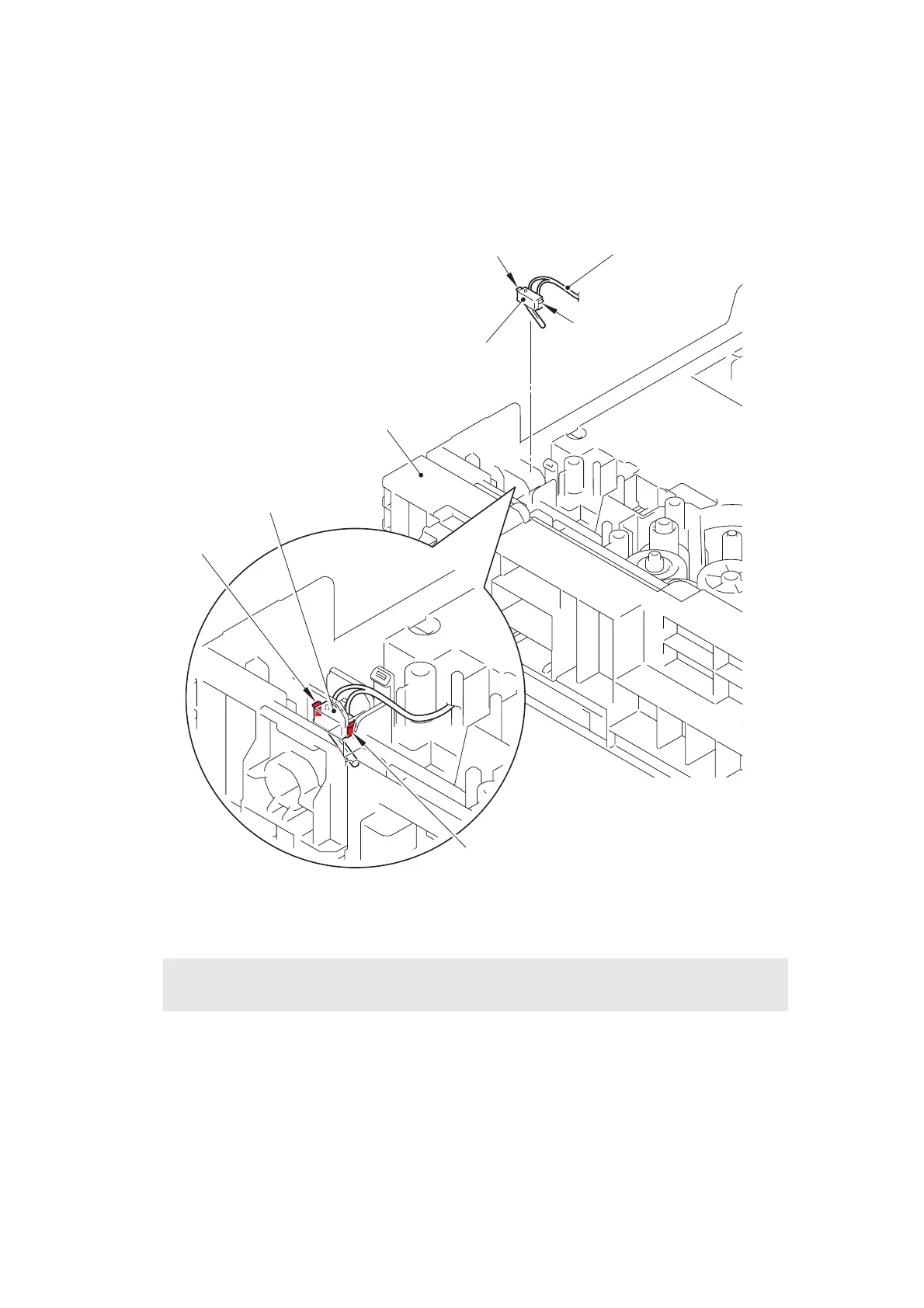

Fig. 3-130
Harness routing: Refer to “1.Main PCB ASSY”.
Assembling Note:
• When attaching the back cover sensor, insert it at an angle from the right side.
Hook
Hook
Hook
Back cover sensor
Back cover sensor
Hook
Back cover sensor harness
Main frame L ASSY
