Brother MFC-8810DW Service Manual

3-28
Confidential

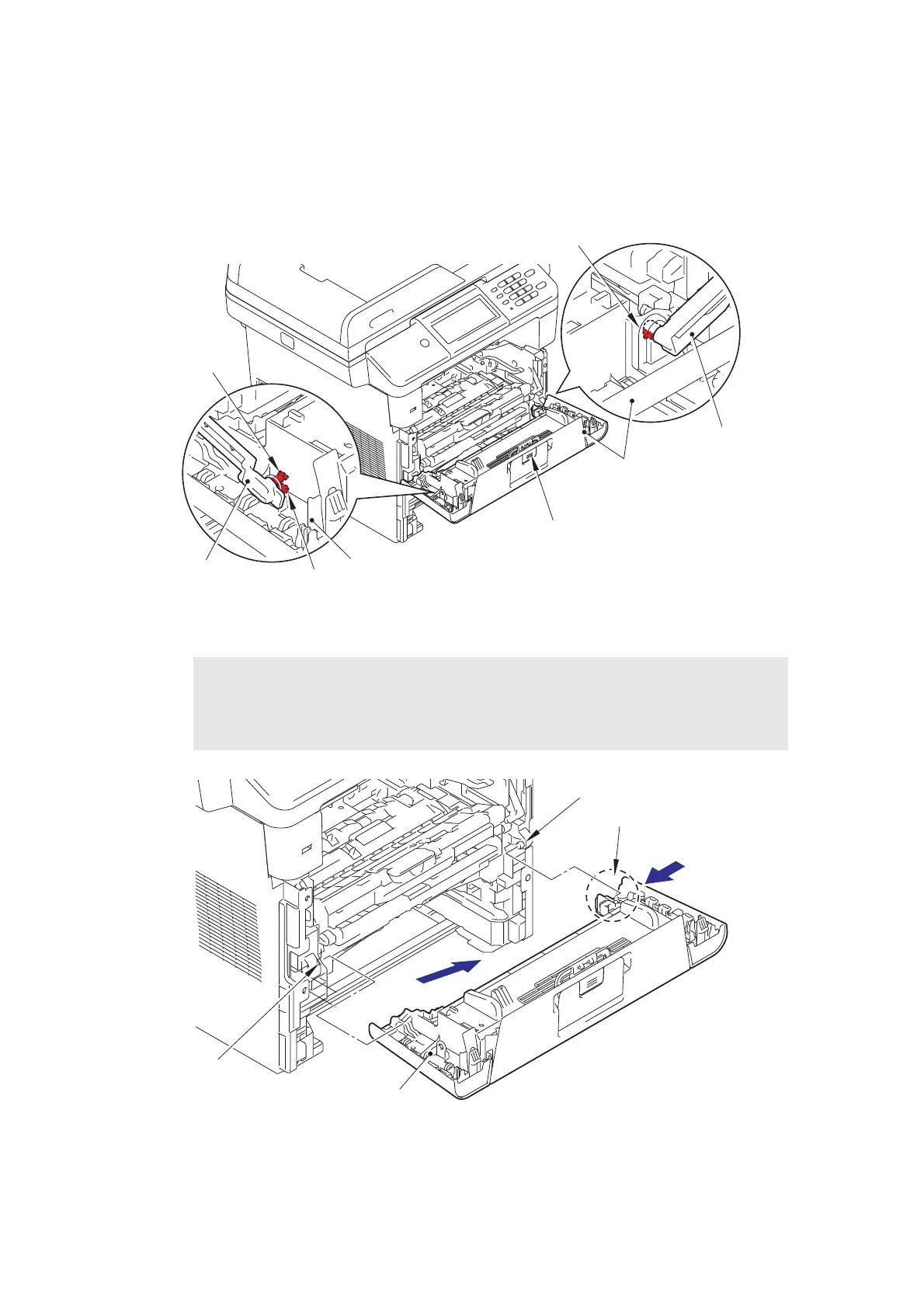

9.6 Front cover ASSY
(1) Push the front cover release button, and open the front cover ASSY.
(2) Release the two hooks, and remove the develop joint link from the front cover ASSY.
(3) Release the hook, and remove the nip release link from the front cover ASSY.
Fig. 3-22
(4) Remove the two bosses, and remove the front cover ASSY from the machine.
Fig. 3-23
(5) Remove the two bosses, and remove the paper stopper from the front cover ASSY.
Note:
• When removing the front cover ASSY, push "A" on the front cover ASSY in the
direction of arrow 4a, and slide the front cover ASSY in the direction of arrow 4b to
remove it.
Nip release link
Develop joint link
Front cover ASSY
Front cover
release button
Hook
Front cover ASSY
Hook
Hook
“A”
Boss
Boss
Front cover ASSY
4a
4b

Brother MFC-8810DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 1200 x 1200 dpi
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 50, 000 pages
Memory	128 MB
Fax Speed	33.6 kbps
Processor	400 MHz
Connectivity	USB, Ethernet, Wi-Fi Direct
Scanning Resolution	Up to 19200 x 19200 dpi (Interpolated)
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Maximum Paper Size	Legal (8.5" x 14")
Print Speed	Up to 40 ppm
