Brother MFC-8810DW Service Manual

3-56
Confidential
<Non touch panel models>

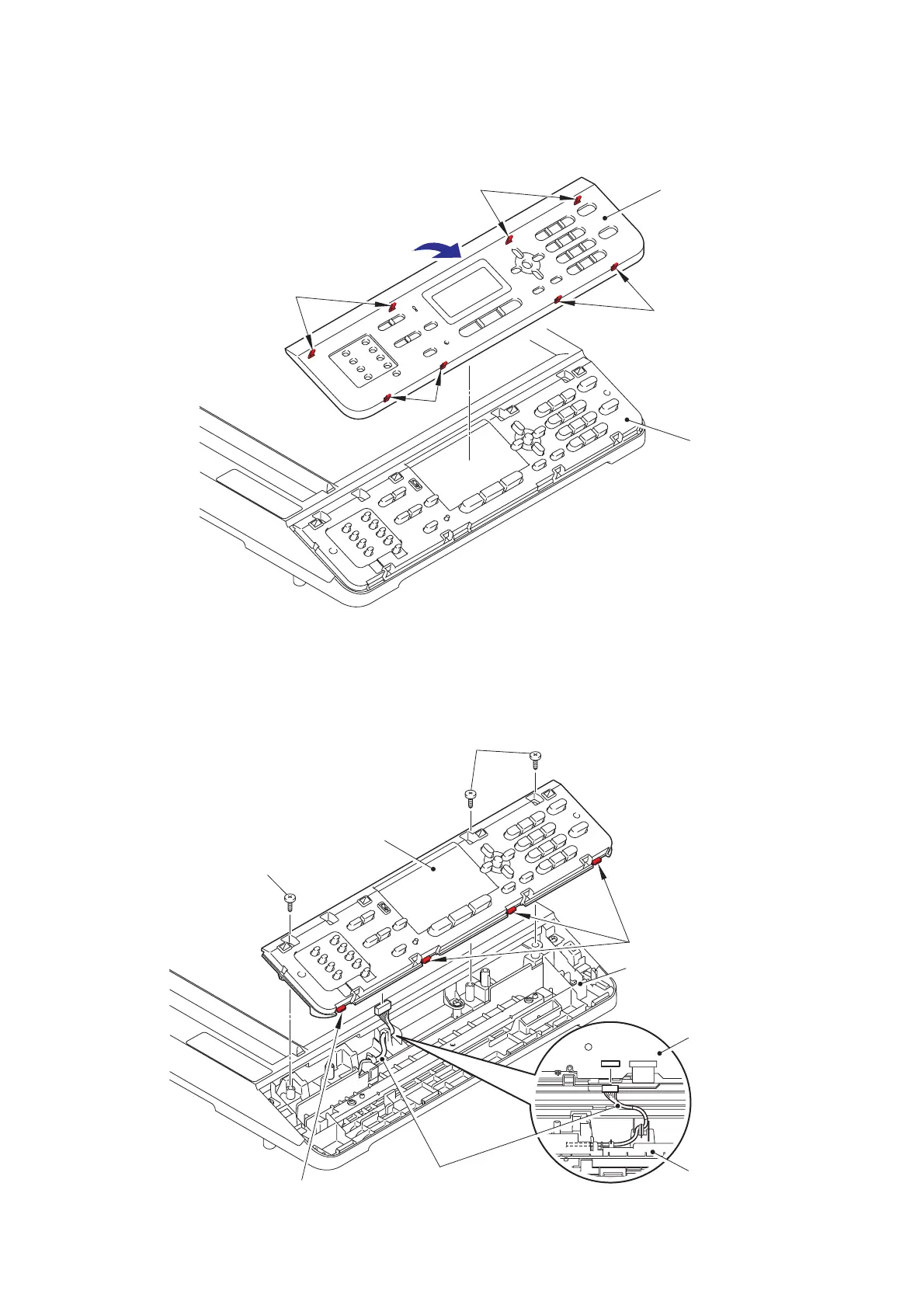

(1) Release the eight hooks, and remove the panel cover from the control panel ASSY.
Fig. 3-71
(2) Remove the three taptite bind B M4x12 screws from the control panel ASSY.
(3) Release the four hooks, and remove the control panel ASSY from the machine.
(4) Remove the panel PCB harness from the panel PCB ASSY.
Fig. 3-72
Hooks
Hooks
Hooks
Hooks
Panel cover
Control panel
ASSY
Taptite bind B M4x12
Control panel ASSY
Taptite bind B M4x12
Hooks
Machine
Panel PCB ASSY
Machine
Panel PCB harness
Hook

Brother MFC-8810DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 1200 x 1200 dpi
Automatic Duplex Printing	Yes
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 50, 000 pages
Memory	128 MB
Fax Speed	33.6 kbps
Processor	400 MHz
Connectivity	USB, Ethernet, Wi-Fi Direct
Scanning Resolution	Up to 19200 x 19200 dpi (Interpolated)
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Maximum Paper Size	Legal (8.5" x 14")
Print Speed	Up to 40 ppm
