Brother MFC-8950DW Service Manual

3-109
Confidential
9.43 T1 paper feed sensor PCB ASSY / T1 paper feed actuator / T1 paper feed
actuator spring
(1) Release the T1 paper feed sensor harness (white connector) from the securing fixtures.
(2) Remove the taptite bind B M3x10 screw, and release the hook to remove the T1 paper
feed actuator holder ASSY from the machine.

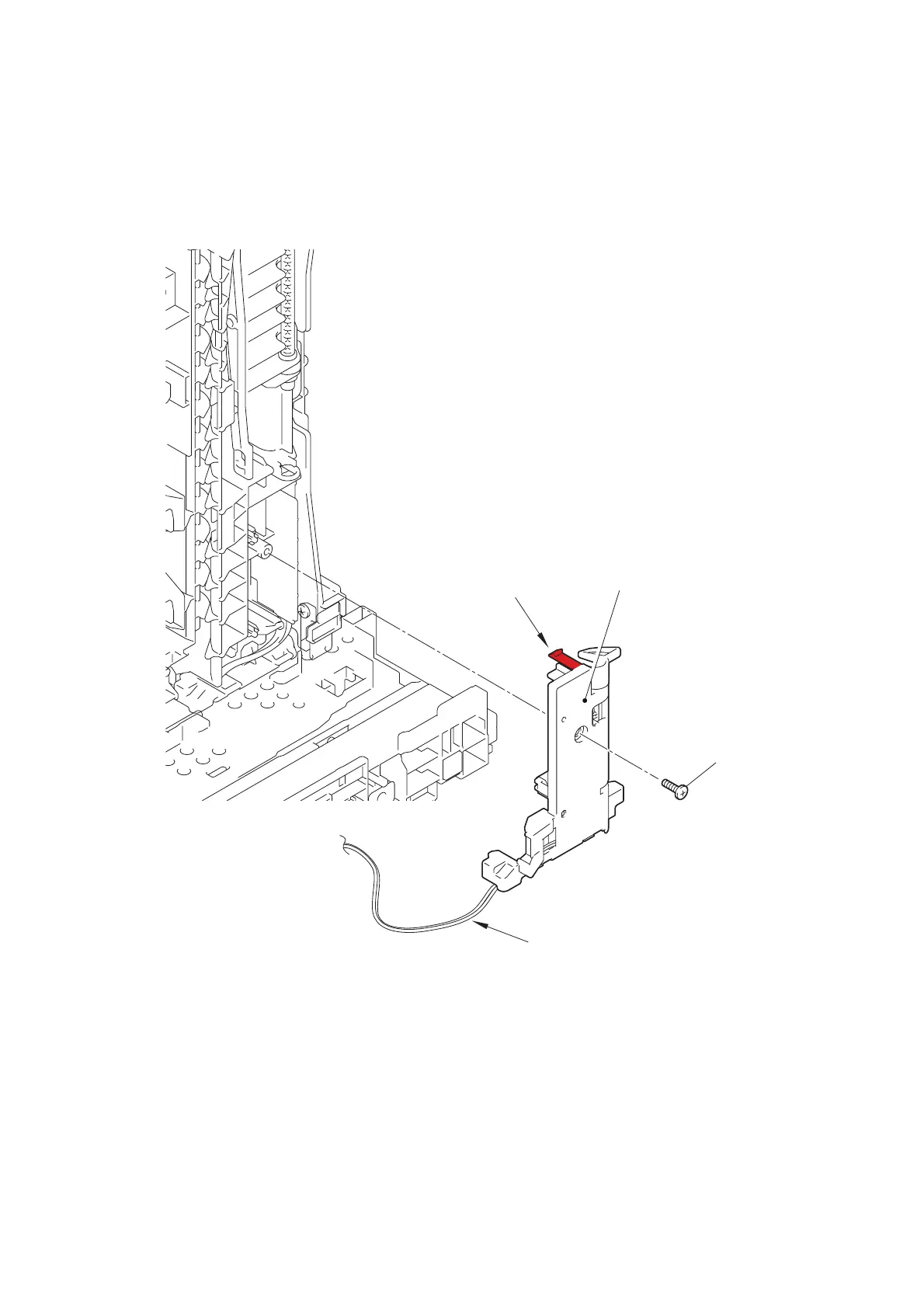

Fig. 3-138
Harness routing: Refer to “4.High-voltage power supply PCB ASSY”.
T1 paper feed actuator holder ASSY
Hook
Taptite bind B M3x10
T1 paper feed sensor harness

Brother MFC-8950DW Specifications

General

Type	all in one
Color	black
Tray Capacity	500
Automatic Document Feeder Capacity	50 sheets
Paper Size	letter, legal, executive, a4, a5, a6, b5, b6, custom sizes from 3" x 5" to 8.5" x 14"
Paper Handling	up to 500 sheets
Mono Print Speed	42 pages per minute
Print Resolution Mono	up to 1200 x 1200
Maximum Number of Pages Per Month	up to 100, 000
Scanner Type	flatbed
Scan Resolution	up to 19200 x 19200
Fax Function	yes
Cartridges	tn-720, tn-750, tn-780, dr-720
Number Of Cartridges	2
Internal Memory	yes
Network	wired, wireless
Connectivity	usb 2.0
OS Compatibility	windows or mac os
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	16.3 inches
Net Weight	39 pounds
