Brother MFC-L2713DW User Manual

3-92
Confidential
 Common to all models
(11) Remove the Taptite bind B M4x12 (11a) screw (for securing the Under bar), the Taptite cup
S M3x6 SR (11b) screw (for securing the Chute ground plate), the Taptite bind B M4x12
(11c) screw (for securing the Registration chute), and the Taptite cup S M3x8 SR (11d)
screw (for securing the Laser L FG plate).
(12)

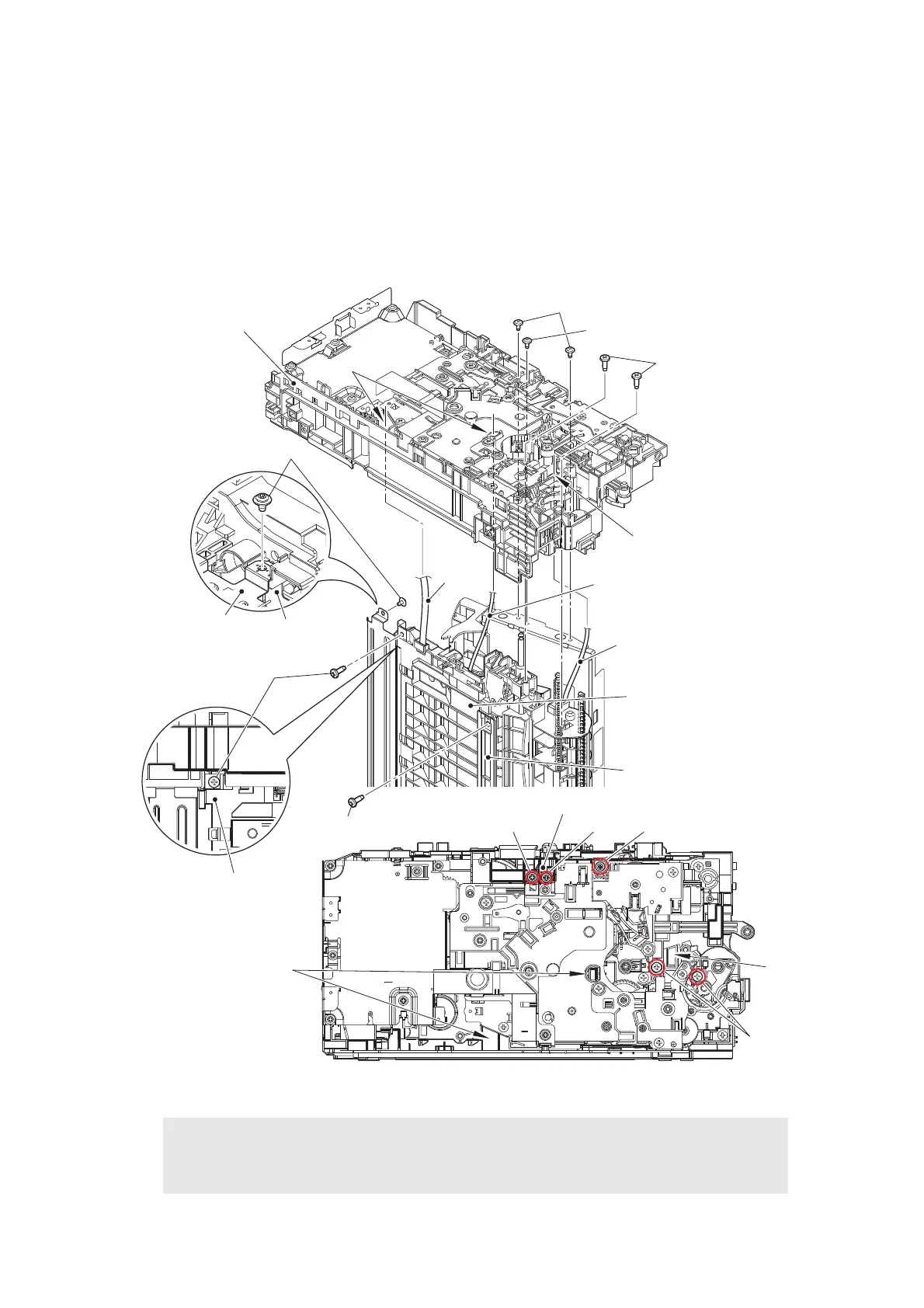

Remove the two Taptite bind B M4x12 (12a) screws and the two Taptite cup S M3x8 SR (12b)
screws, and remove the Frame L unit. Pull out the Paper feed sensor harness, the Cartridge
sensor harness (only for models without Toner box) and the LVPS harness from the Holes.
Fig. 3-91
Harness routing: Refer to “10. Frame L unit (Manual feed models)”.
Assembling Note:
• When assembling the Frame L unit, make sure that the Chute ground plate is above
the Main PCB FG plate 2.
Taptite cup S M3x8 SR (11d)
Taptite cup S M3x8 SR (12b)
Taptite bind B
M4x12 (12a)
Frame L unit
Taptite bind B M4x12 (11c)
Registration chute
Taptite cup S M3x6 SR (11b)
Chute ground plate
Taptite bind B M4x12 (11a)
Under bar
Registration chute
12b
Laser L FG plate
11d
12a
12b
<Upper side of Frame L>
Main PCB FG
plate 2
Holes
Hole
Paper feed sensor
harness
LVPS
harness
Holes
Hole
<Bottom side>
<Overhead view
of Frame L>
Cartridge sensor harness
(Only for models without Toner box)

Brother MFC-L2713DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 15, 000 pages
Memory	64 MB
Processor	600 MHz
Scan Resolution	Up to 1200 x 1200 dpi
Fax Speed	33.6 kbps
Dimensions	410 x 398.5 x 318.5 mm
Weight	11.8 kg
Print Speed	30 ppm
Display	2-line LCD
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
