Brother MFC-L8600CDW Service Manual

3-7
Confidential

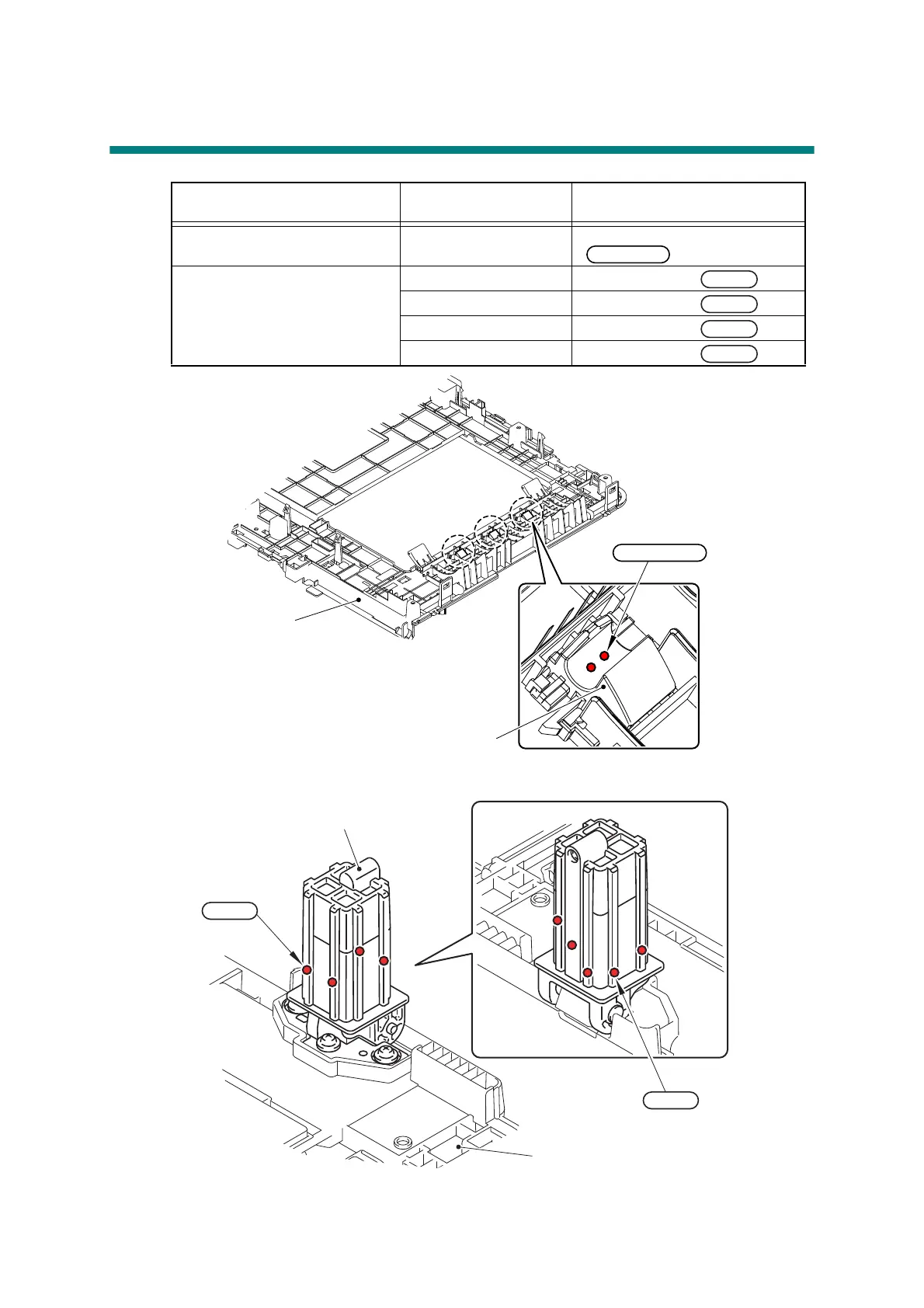

5. LUBRICATION
PG1.0 to 1.5: PG661 (W) (1.0 to 1.5 mm dia. ball)
BDX2.0: BDX-313 (A) (2.0 mm dia. ball)
The kind of the lubricating oil
(Maker name)
Lubrication point Quantity of lubrication
PG661 (W) (TORAY) Joint cover base
ASSY
1.0 to 1.5 mm dia. ball
BDX-313 (A) (Kanto Kasei) Hinge ASSY L 2.0 mm dia. ball
Hinge R (thin rib) 2.0 mm dia. ball
Hinge R (thick rib) 3.0 mm dia. ball
Back cover 2.0 mm dia. ball
PG1.0 to 1.5
BDX2.0
BDX2.0
BDX3.0
BDX2.0
PG1.0WR1.5
Joint cover base ASSY
Joint cover base ASSY
BDX2.0
BDX2.0
Hinge ASSY L
ADF unit
