9.24 ADF Separation Pad/

Separation Support Film (Legal Model Only)

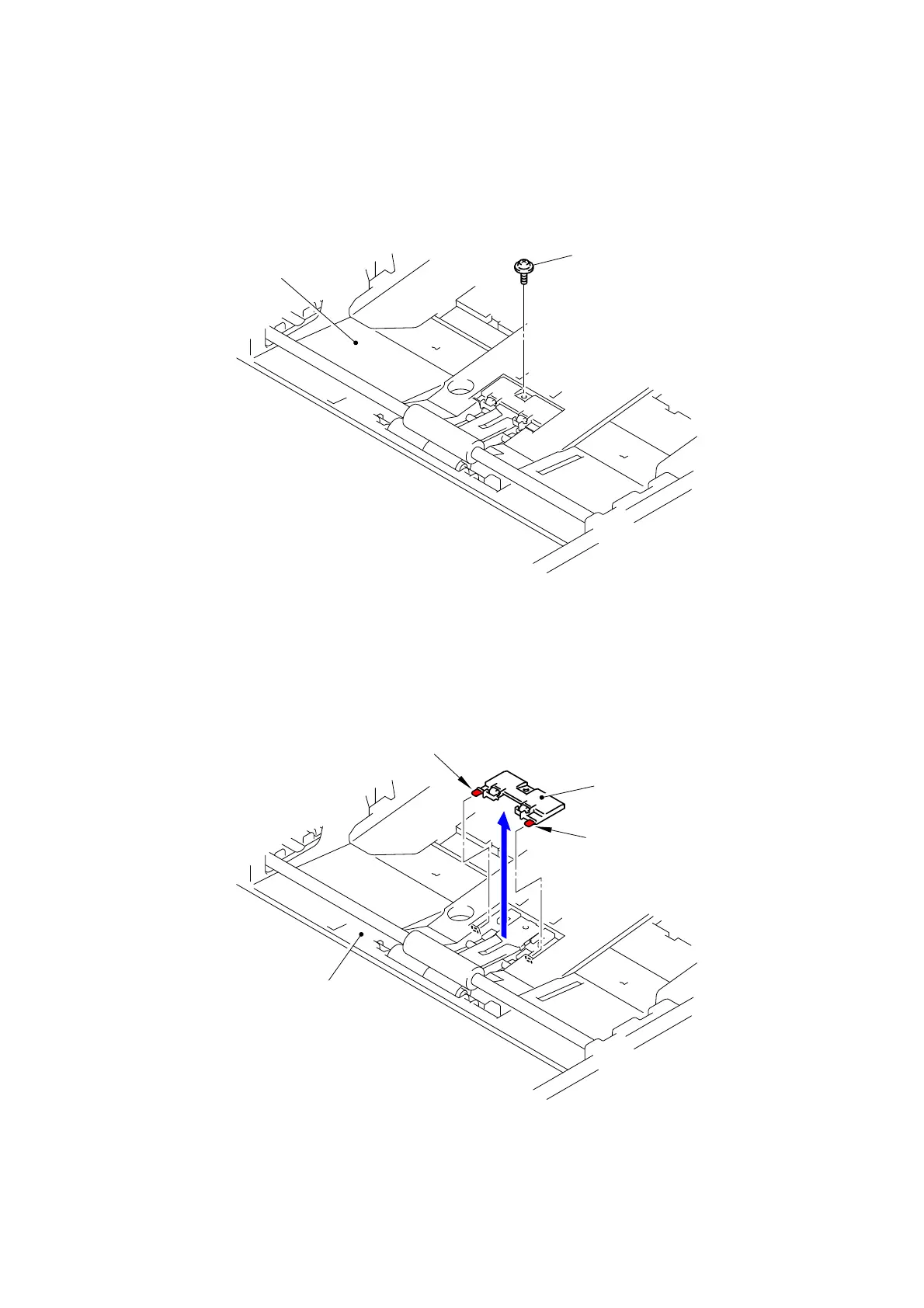

(1) Remove the Taptite cup B M3x10 screw from the Upper ADF chute.

Fig. 3-88

(2) Release the two Hooks and remove the Separation rubber holder ASSY from the Upper

ADF chute.

Fig. 3-89

Taptite cup B M3x10

Upper ADF chute

Hook

Separation rubber holder ASSY

Upper ADF chute
