3-108
Confidential

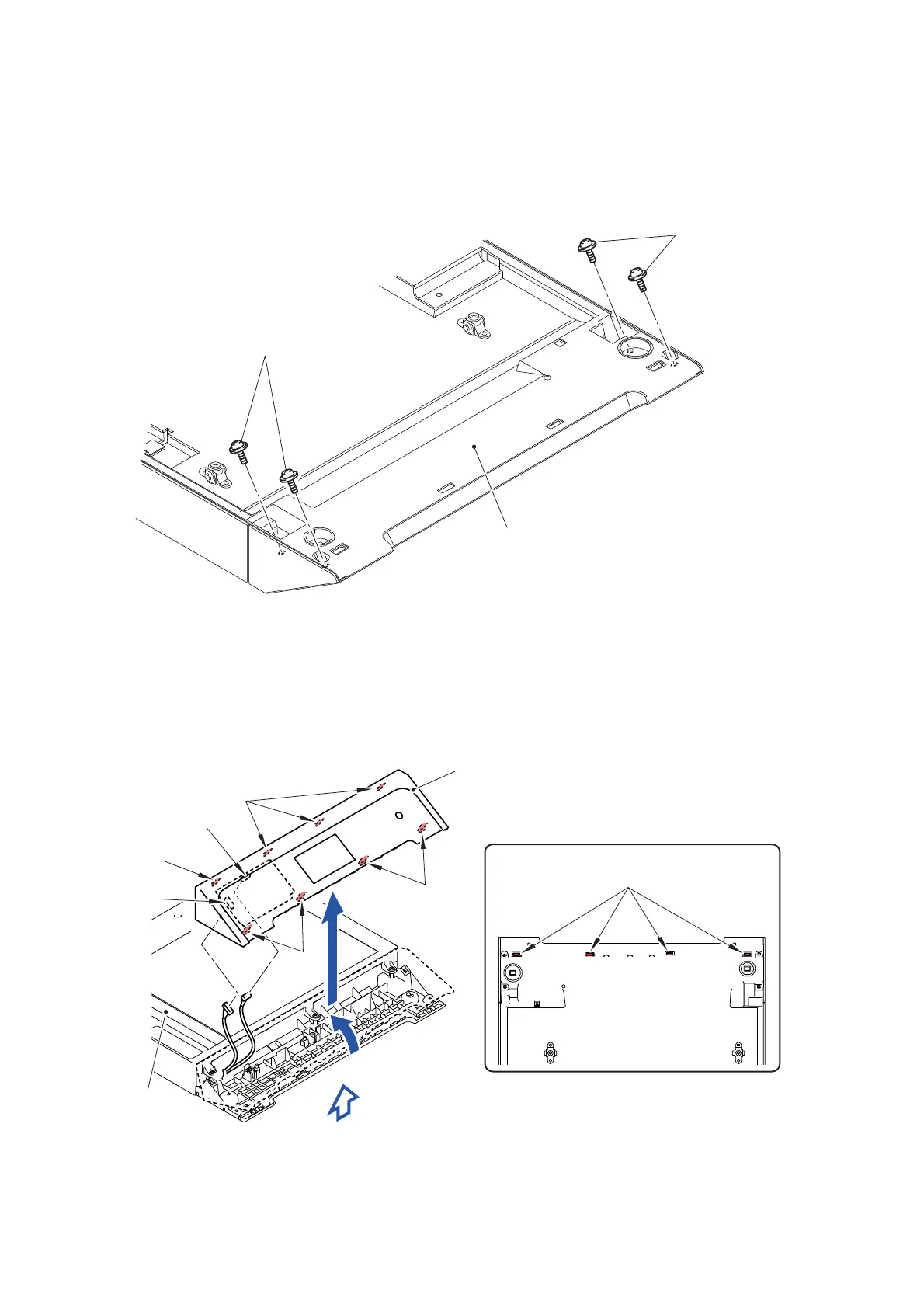

9.33 Control Panel ASSY/Document Scanner Unit
â–
A4 model
(1) Remove the four Taptite cup B M3x10 screws from the Control panel ASSY.
Fig. 3-135
(2) Release the four Hooks 1. Move the Control panel ASSY in the direction of the arrow and
release the other four Hooks.
(3) Remove the Control panel ASSY from the Document scanner unit.
(4) Disconnect the two Connectors (CN5 and CN7) from the Panel PCB unit.
Fig. 3-136
Taptite cup B M3x10
Taptite cup B
M3x10
Control panel ASSY
Hook
Hook 1
Hook 1
Control panel ASSY
Hook 1
CN5
Document
CN7
A view
<A view>
Hook
2a
2b
scanner unit
