Brother MFC-L8600CDW Service Manual

3-192
Confidential
10.6 T2 Paper Feed Frame Unit/T2 Edge Actuator

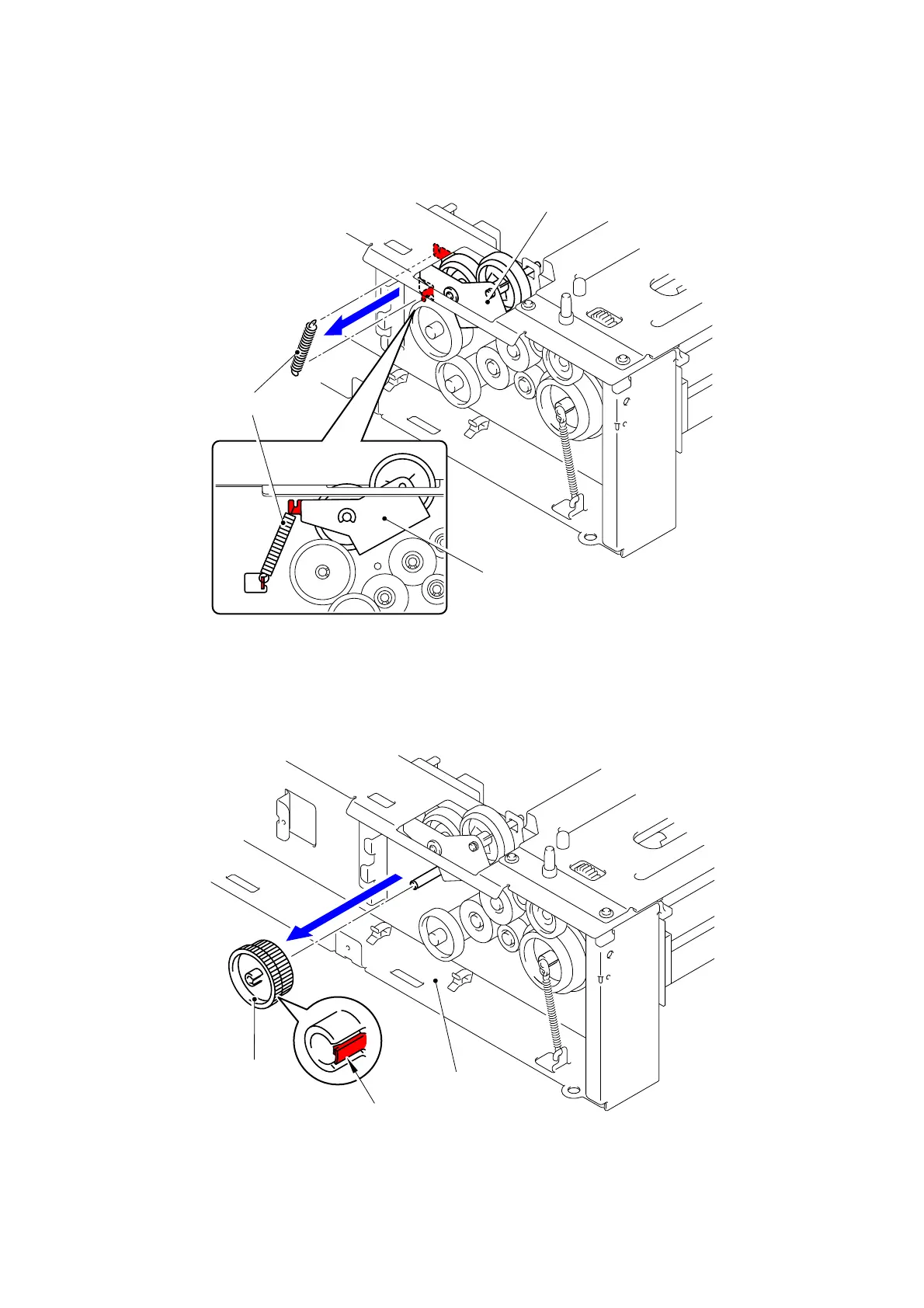

(1) Remove the Clutch spring from the Clutch arm ASSY.
Fig. 3-281
(2) Release the Hook and remove the Gear 45/40 from the T2 frame L unit.
Fig. 3-282
Clutch arm ASSY
Clutch arm ASSY
Clutch spring
<Left side>
Gear 45/40
T2 frame L unit
Hook
<Left side>
