3-189

Confidential

10.3 T2 Cover Left

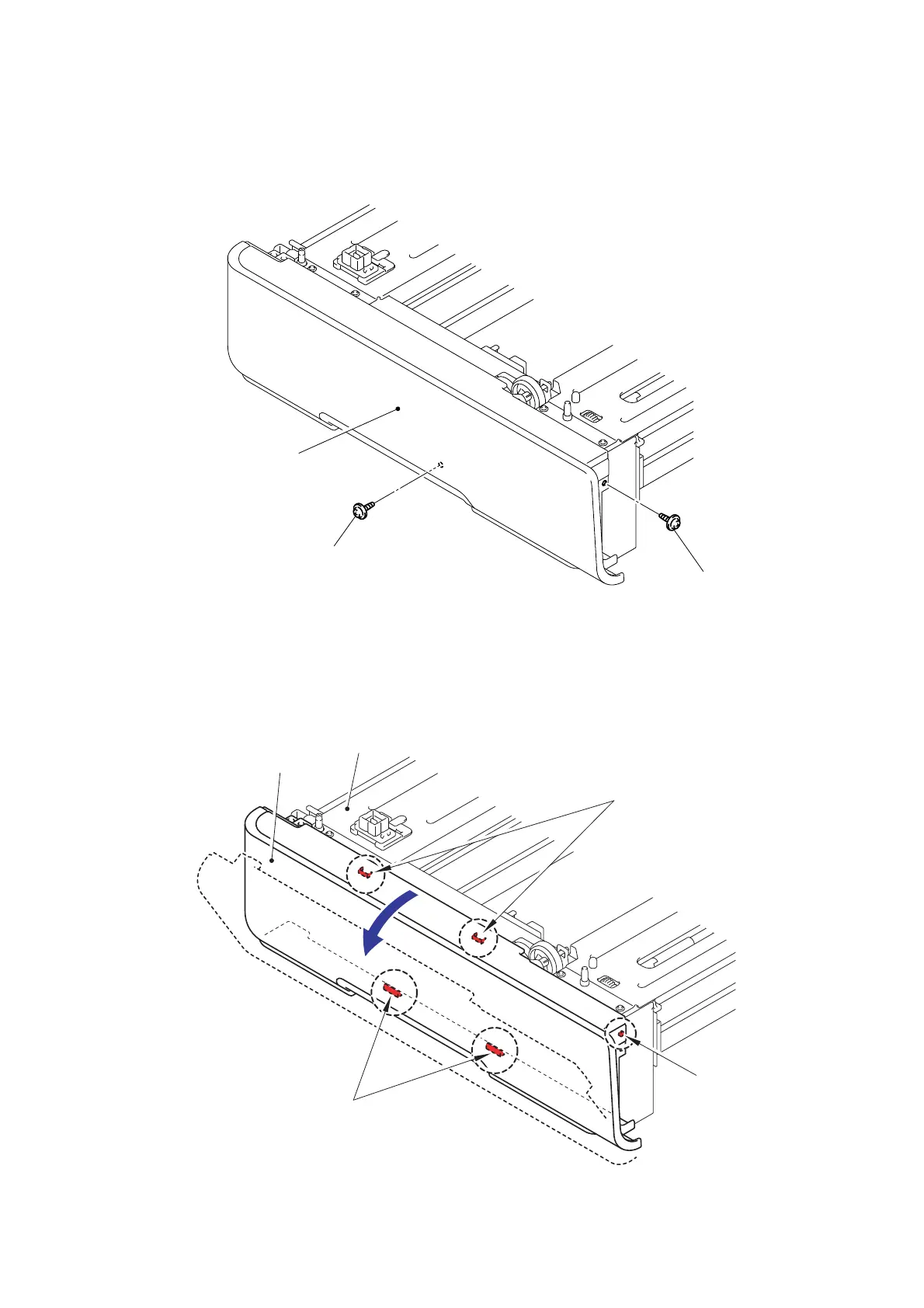

(1) Remove the two Taptite cup S M3x6 SR screws from the T2 cover left.

Fig. 3-275

(2) Release the one Pin and release the two Hooks at the top.

(3) Release the two Hooks at the bottom and remove the T2 cover left from the T2 frame L unit.

Fig. 3-276

Taptite cup S M3x6 SR

T2 cover left

Hook

T2 cover left

T2 frame L unit
