Brother MFC-L8600CDW Service Manual

3-35
Confidential
9.4 Cleaner Pinch Roller S ASSY
(1) Remove the Cleaner roller spring from the Hook of the Fuser cover ASSY.

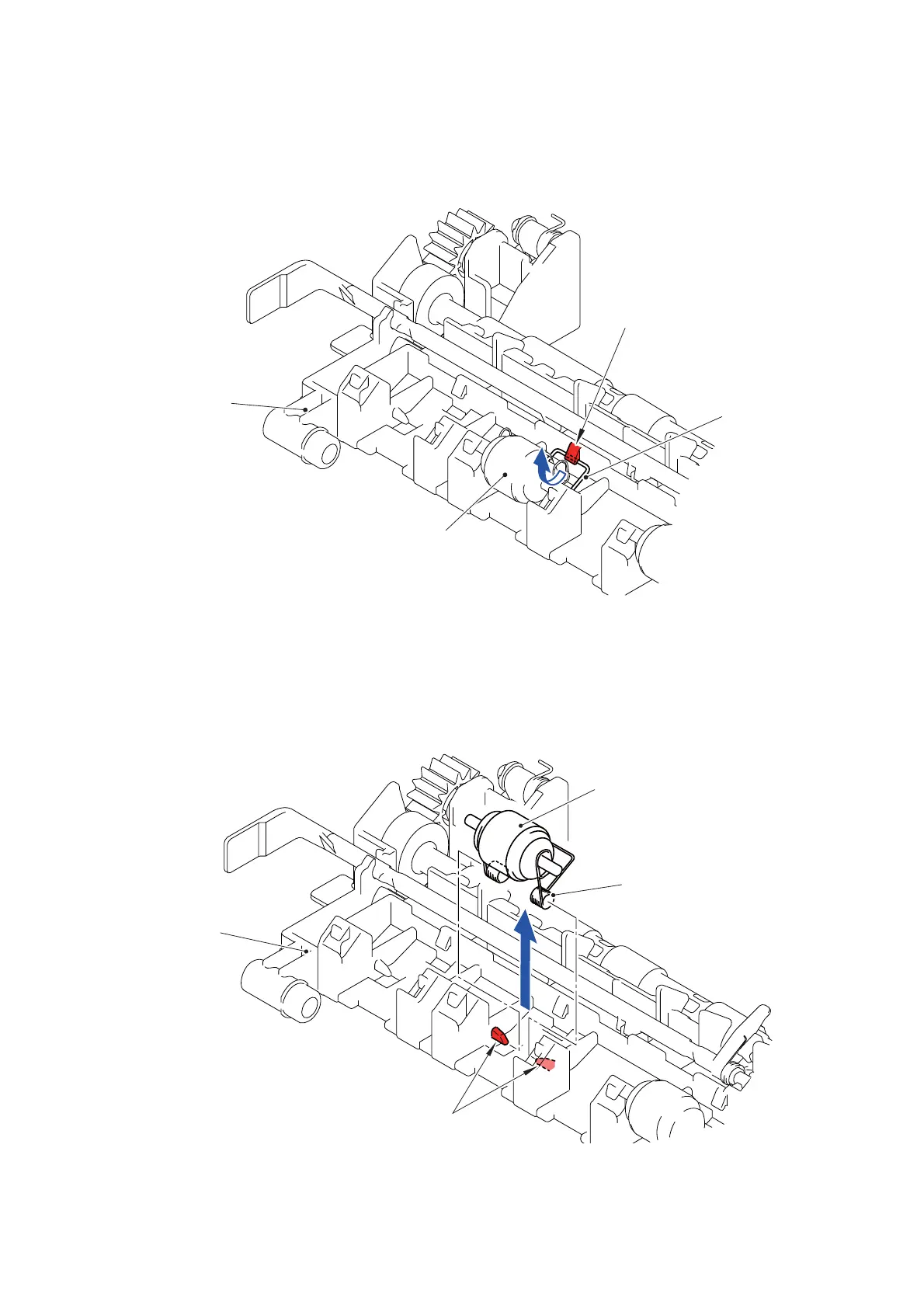

Fig. 3-12
(2) Remove the Cleaner roller spring from the two Pins of the Fuser cover ASSY.
Remove the Cleaner pinch roller S ASSY and Cleaner roller spring from the Fuser cover
ASSY.
Fig. 3-13
Hook
Cleaner pinch roller S ASSY
Cleaner
roller spring
Fuser cover ASSY
Cleaner roller spring
Pin
Cleaner pinch roller S ASSY
Fuser cover ASSY
