3-36

Confidential

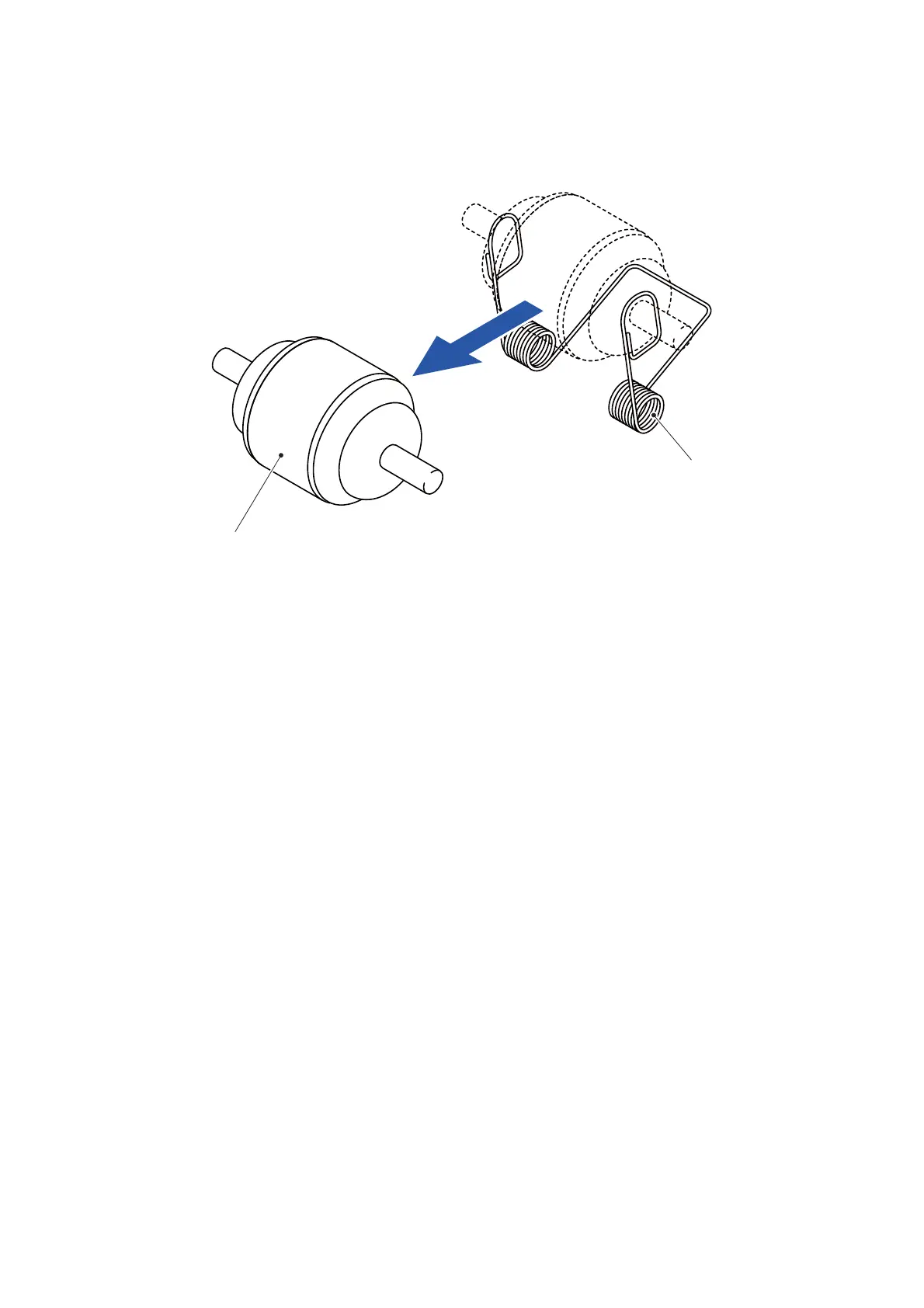

(3) Remove the Cleaner pinch roller S ASSY from the Cleaner roller spring.

Fig. 3-14

(4) Remove the other three Cleaner pinch roller S ASSYs in the same way.

Cleaner pinch roller S ASSY

Cleaner roller spring
