3-45

Confidential

9.8 Side Cover R

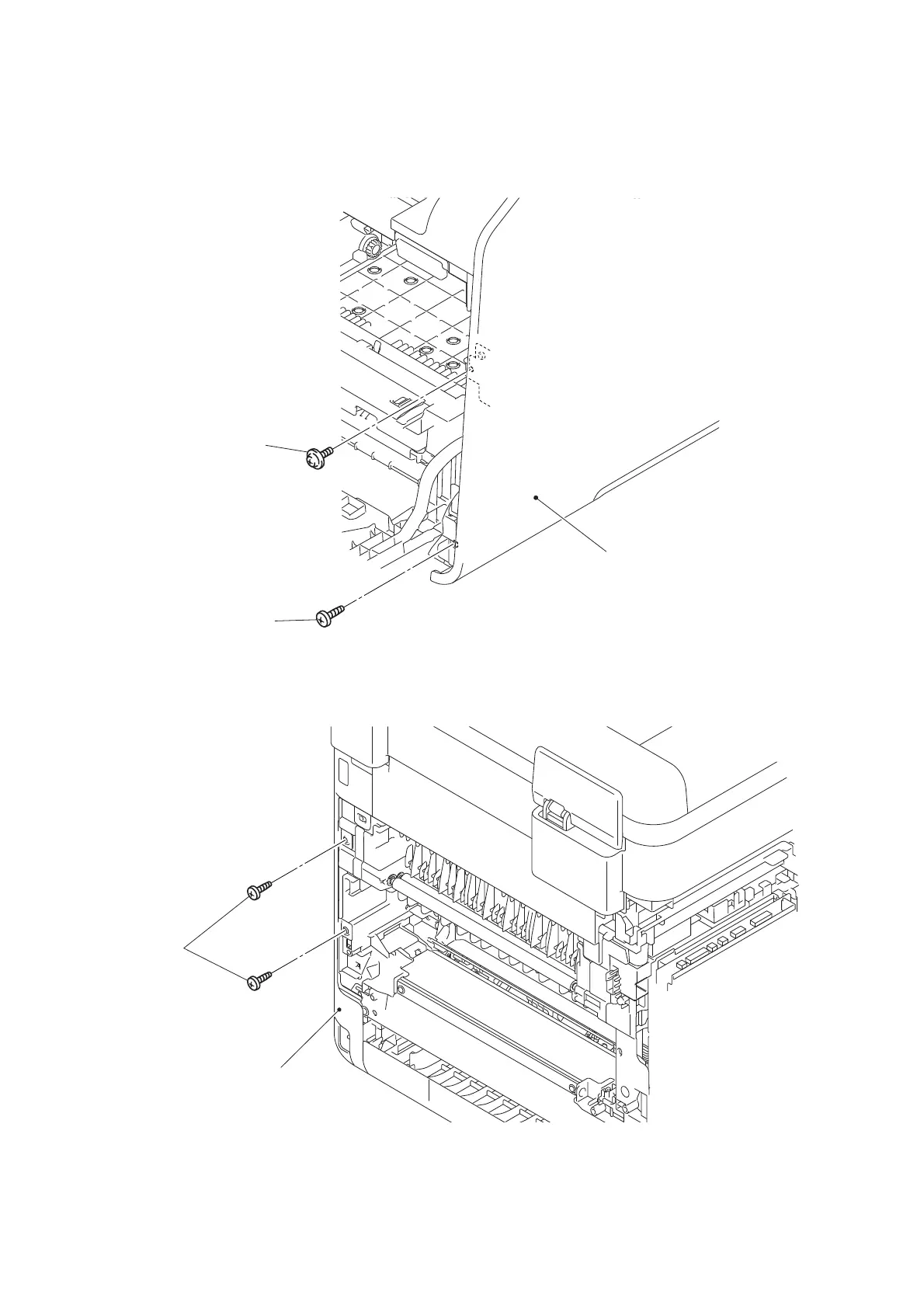

(1) Remove the one Taptite B 3x6 screw and the one Taptite bind B M4x12 screw from the

front of the Side cover R.

Fig. 3-28

(2) Remove the two Taptite bind B M4x12 screws from the back of the Side cover R.

Fig. 3-29

Taptite bind B M4x12

Taptite B 3x6

Side cover R

Taptite bind

B M4x12

Side cover R
