3-151

Confidential

9.51 Develop Release Drive Unit

(1) Release the wiring of the Develop release drive unit.

(2) Remove the three Taptite bind B M4x12 screws from the Develop release drive unit.

Release the three Hooks and remove the Develop release drive unit from the Main body.

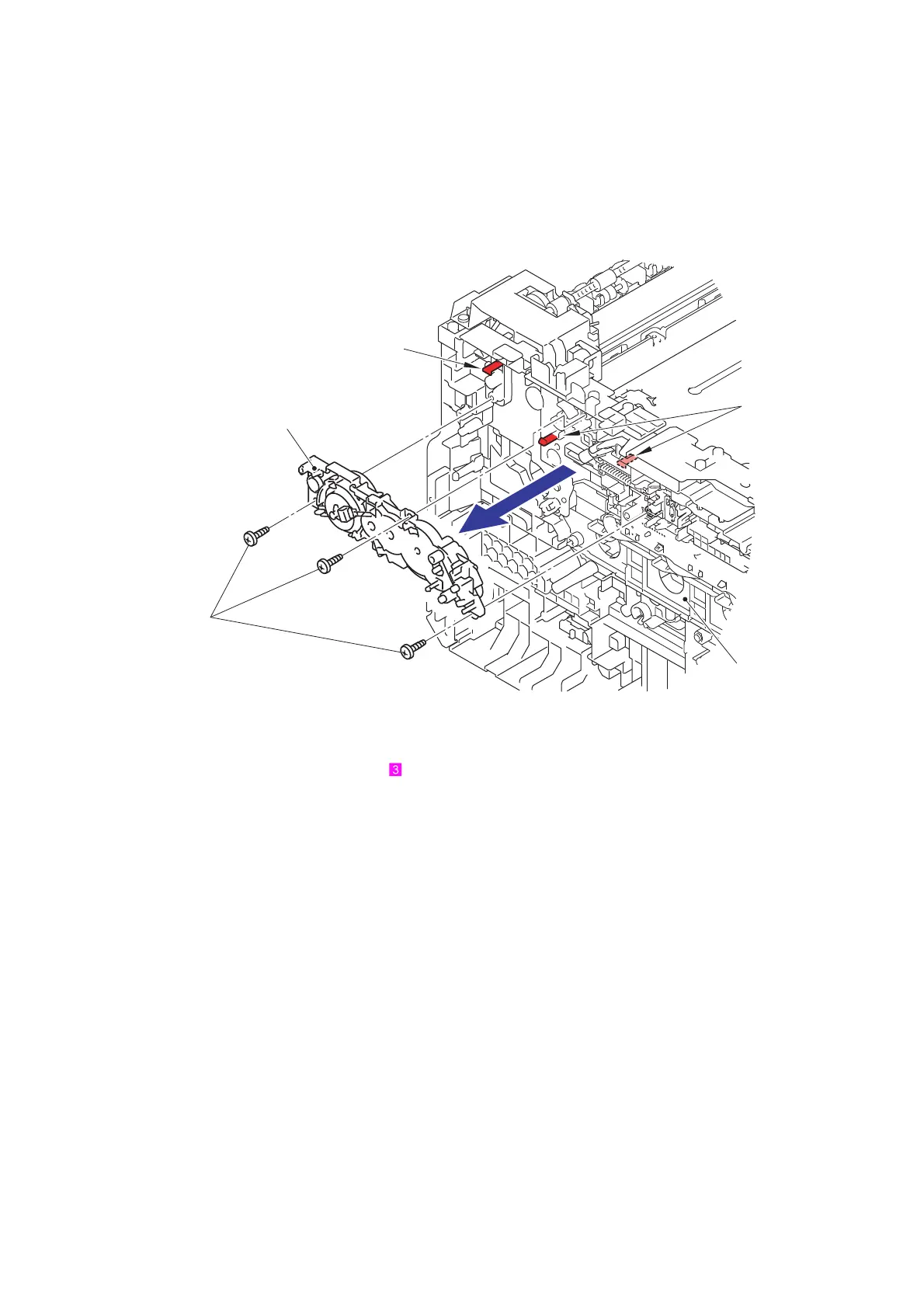

Fig. 3-210

Harness routing: Refer to “ Develop Release Drive Unit, Develop Release Sensor PCB

ASSY, Toner/New Sensor PCB ASSY”

Taptite bind

Hook

Develop release drive unit

Main body

Hook

B M4x12
