Brother MFC-L8600CDW

To Next Page

To Previous Page

3-109

Confidential

■ Legal model

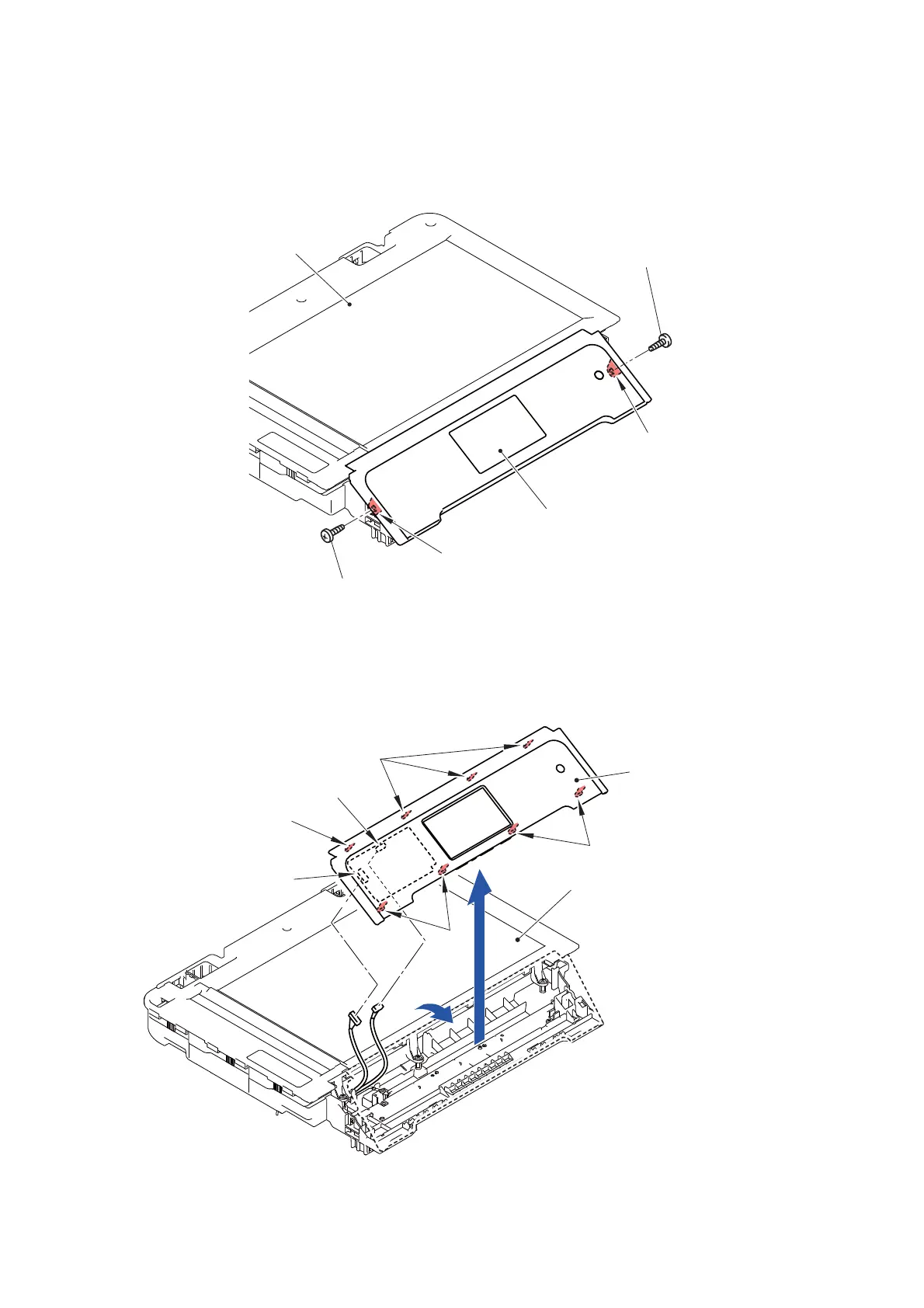

(1) Remove the two Taptite bind B M4x12 screws from the Control panel ASSY.

(2) Release the two Hooks at both sides of the Control panel ASSY.

Fig. 3-137

(3) Release the other eight Hooks and remove the Control panel ASSY from the Document

scanner unit.

(4) Disconnect the two Connectors (CN5 and CN7) from the Control panel ASSY.

Fig. 3-138

Taptite bind B M4x12

Control panel ASSY

Hook

Document scanner unit

Hook

Control panel ASSY

CN5

CN7

Hook

Document scanner unit
