Brother MFC-L8600CDW Service Manual

3-134
Confidential

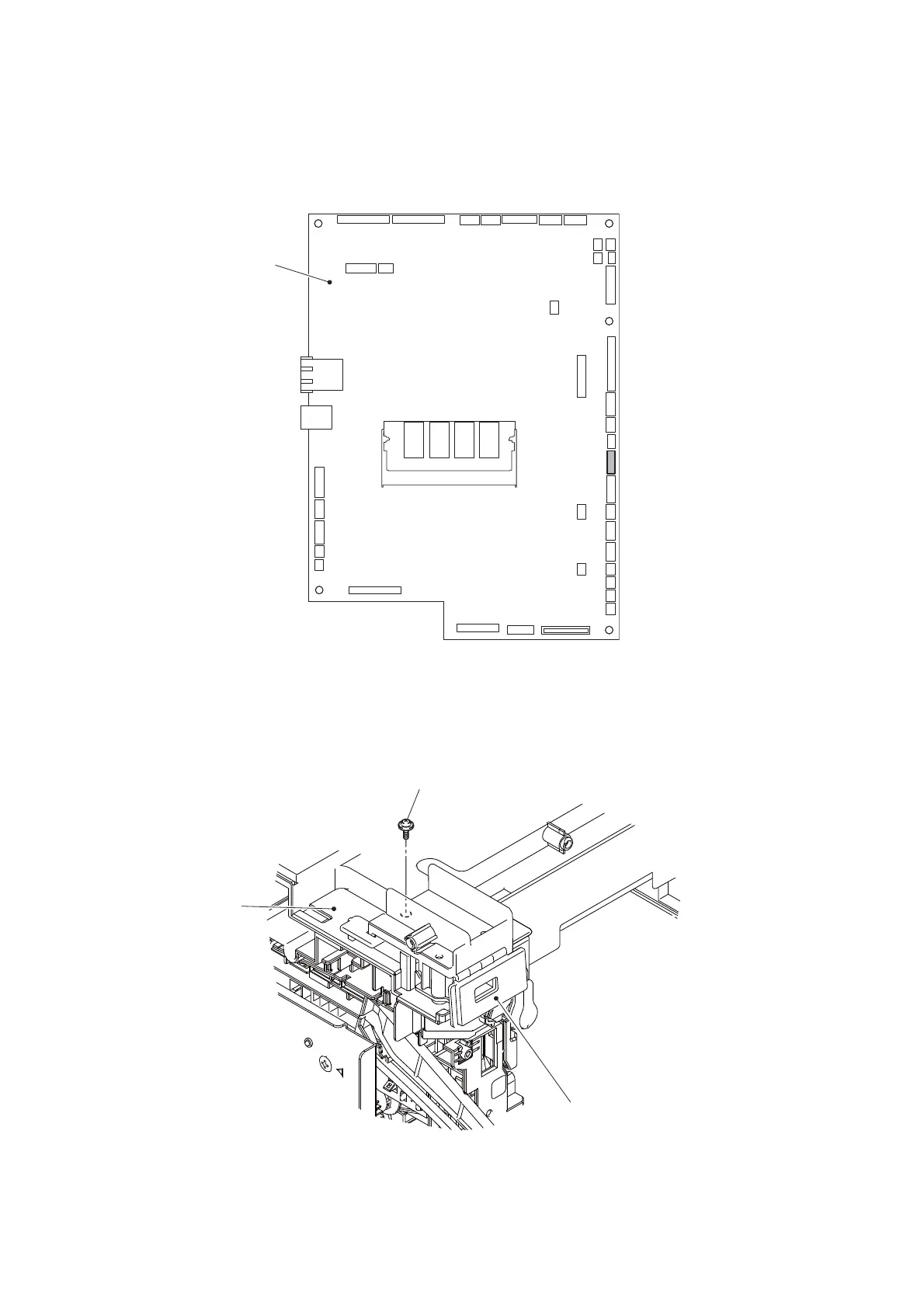

9.44 Joint Cover USB ASSY
(1) Disconnect the Connector (CN11) from the Main PCB ASSY.
Fig. 3-182
(2) Disconnect the wiring of the Main USB host harness ASSY.
(3) Remove the one Taptite bind B M4x12 screw.
Fig. 3-183
Main PCB ASSY
CN41
CN39
CN38 CN37
CN33
CN32
CN28
CN27
CN20
CN3
CN4CN5
CN2
CN6
CN7
CN21
CN8
CN10
CN12
CN11
CN9
CN13CN22
CN14
CN15
CN26
CN17
CN18
CN19
CN31CN30
CN45
CN40
CN47
CN46
CN44
CN43
CN42
CN16
CN49
Taptite bind B M4x12
Joint cover USB ASSY
Main body

Brother MFC-L8600CDW Specifications

General

Type	all in one
Color	white
Tray Capacity	300
Automatic Document Feeder Capacity	35 sheets
Paper Size	8.5" x 14"
Paper Handling	up to 300 sheets
Color Print Speed	30 pages per minute
Mono Print Speed	30 pages per minute
Print Resolution Color	up to 2400 x 600
Maximum Number of Pages Per Month	up to 40, 000
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Cartridges	tn331bk, tn336bk, tn331y, tn336y, tn331m, tn336m, tn331c, tn336c, dr331cl
Number Of Cartridges	4
Internal Memory	yes
Network	wired, wireless
Connectivity	usb, google cloud print
OS Compatibility	windows, mac os, linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	16.1 inches
Width	19.8 inches
Net Weight	63.5 pounds
