3-142
Confidential

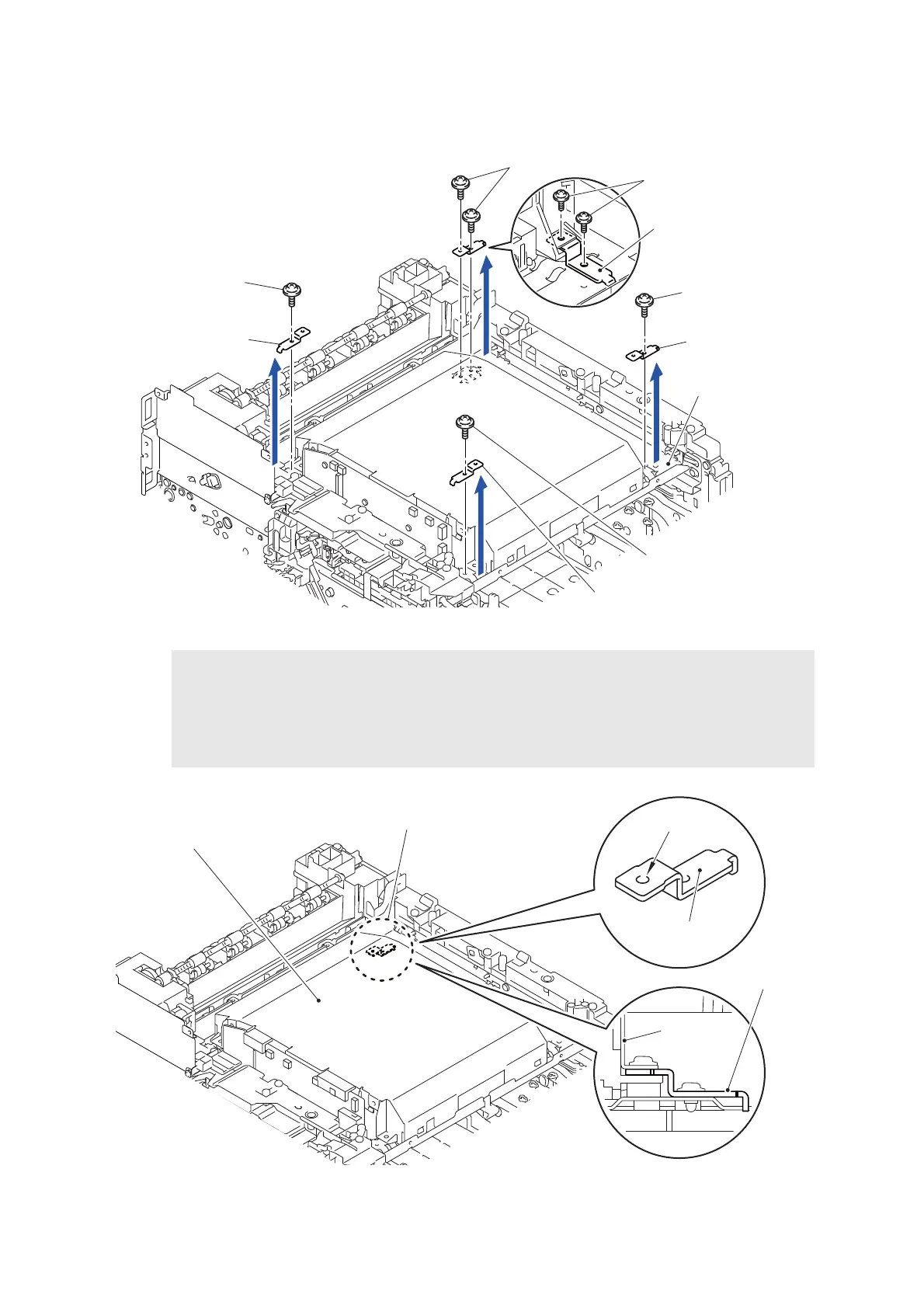

(6) Remove the five Taptite cup S M3x6 SR screws and remove the four Scanner holders
from the Scanner plate.
Fig. 3-194
Fig. 3-195
Assembling Note:
- When assembling the Scanner holder to “A” of the Laser unit, be sure to use the Scanner
holder of which “B” is a screw and not to use other Scanner holders.
- When assembling the Scanner holder to “A” of the Laser unit, be sure that the Scanner
holder is placed as shown in the figure.
Taptite cup S M3x6 SR
Scanner holder
Taptite cup S M3x6 SR
Taptite cup S M3x6 SR
Taptite cup S M3x6 SR
Taptite cup S M3x6 SR
Scanner plate
Scanner holder
Scanner holder
Scanner holder
<Front side>
Laser unit
“A”
Scanner holder
“B”
<Front side>
Scanner holder
Laser unit
To Next Page
