Brother MFC-L8600CDW Service Manual

3-157
Confidential
9.57 Paper Eject Origin Sensor

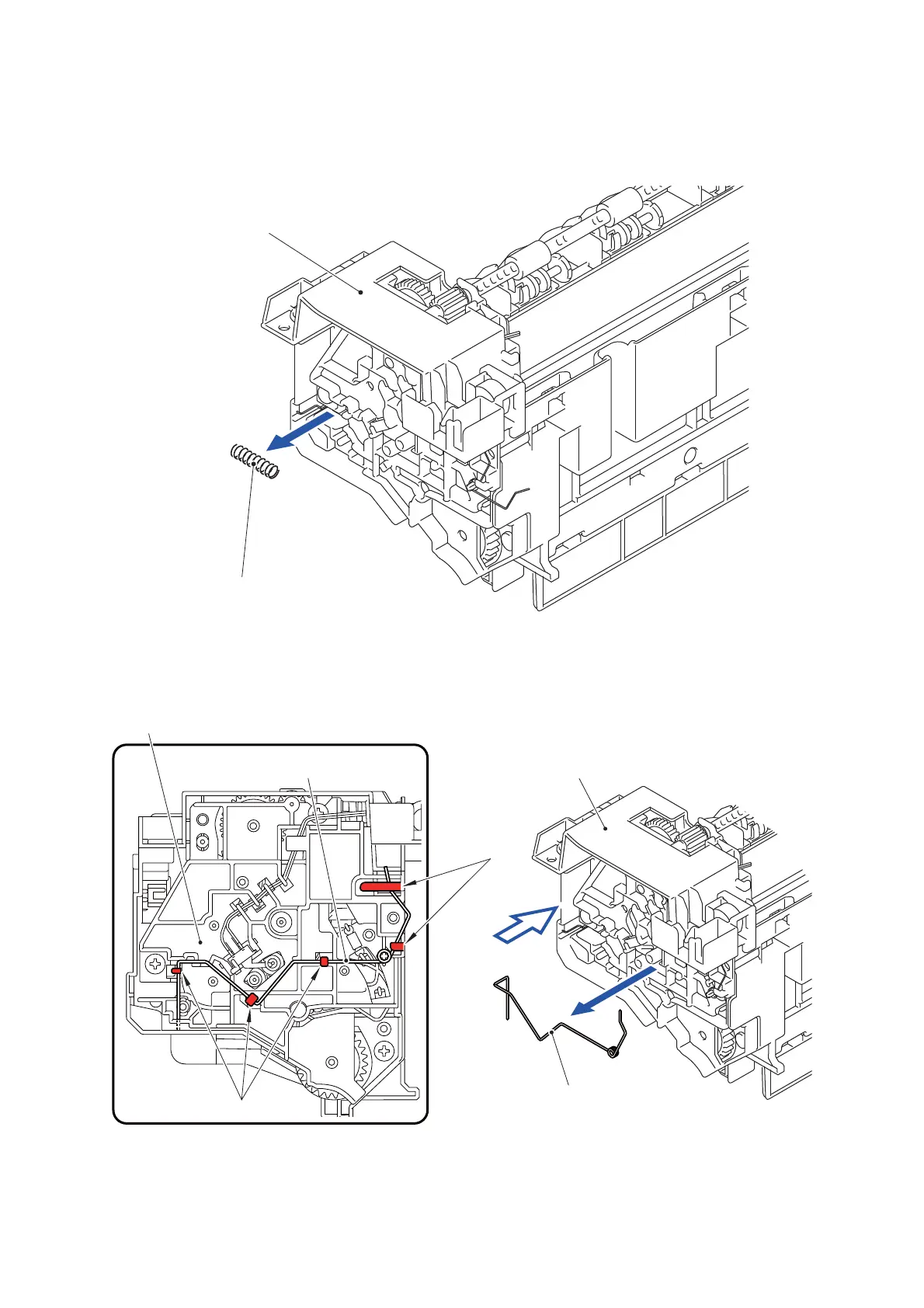

(1) Remove the Eject ground wire 1 from the Paper eject ASSY.
Fig. 3-219
(2) Release the five Hooks and remove the Eject ground wire 2 from the Paper eject ASSY.
Fig. 3-220
Paper eject ASSY
Eject ground wire 1
Hook
Hook
Paper eject ASSY
Paper eject ASSY
A view
<A view>
Eject ground wire 2
Eject ground wire 2
