Brother MFC-L8600CDW Service Manual

3-176
Confidential

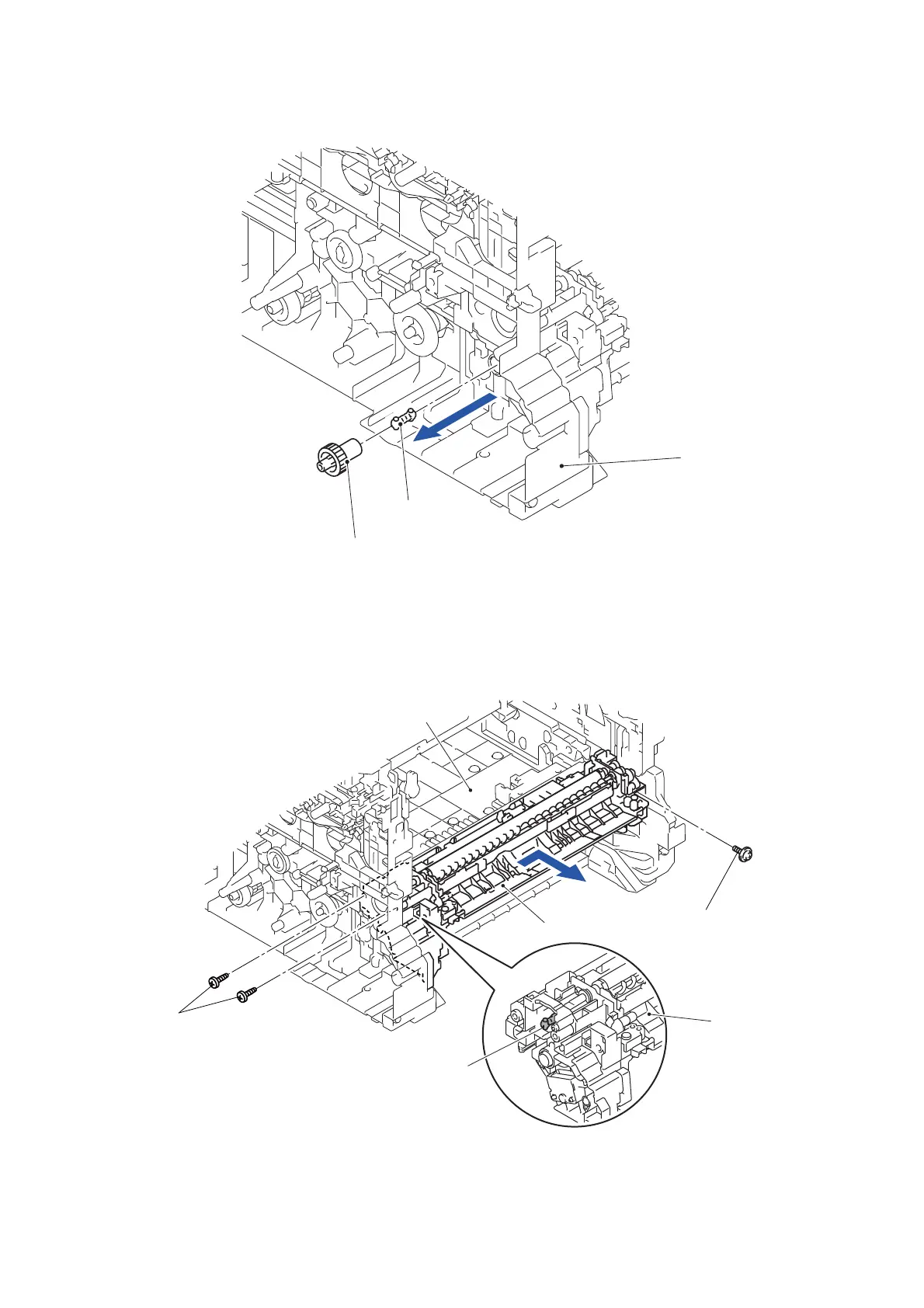

(5) Remove the PF drive gear 21 and PF drive joint from the Main body.
Fig. 3-254
(6) Remove the Taptite cup B M3x12 screw from the Paper feed unit.
(7) Remove the two Taptite bind B M4x12 screws, then shift the Paper feed unit to the right,
and remove it from the Main body.
Fig. 3-255
PF drive gear 21
PF drive joint
Main body
<Left side>
Taptite cup B M3x12
Paper feed unit
Taptite
Main body
bind B
M4x12
Paper feed unit
<Front side>
Registration roller drive joint

Brother MFC-L8600CDW Specifications

General

Type	all in one
Color	white
Tray Capacity	300
Automatic Document Feeder Capacity	35 sheets
Paper Size	8.5" x 14"
Paper Handling	up to 300 sheets
Color Print Speed	30 pages per minute
Mono Print Speed	30 pages per minute
Print Resolution Color	up to 2400 x 600
Maximum Number of Pages Per Month	up to 40, 000
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Cartridges	tn331bk, tn336bk, tn331y, tn336y, tn331m, tn336m, tn331c, tn336c, dr331cl
Number Of Cartridges	4
Internal Memory	yes
Network	wired, wireless
Connectivity	usb, google cloud print
OS Compatibility	windows, mac os, linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	16.1 inches
Width	19.8 inches
Net Weight	63.5 pounds
