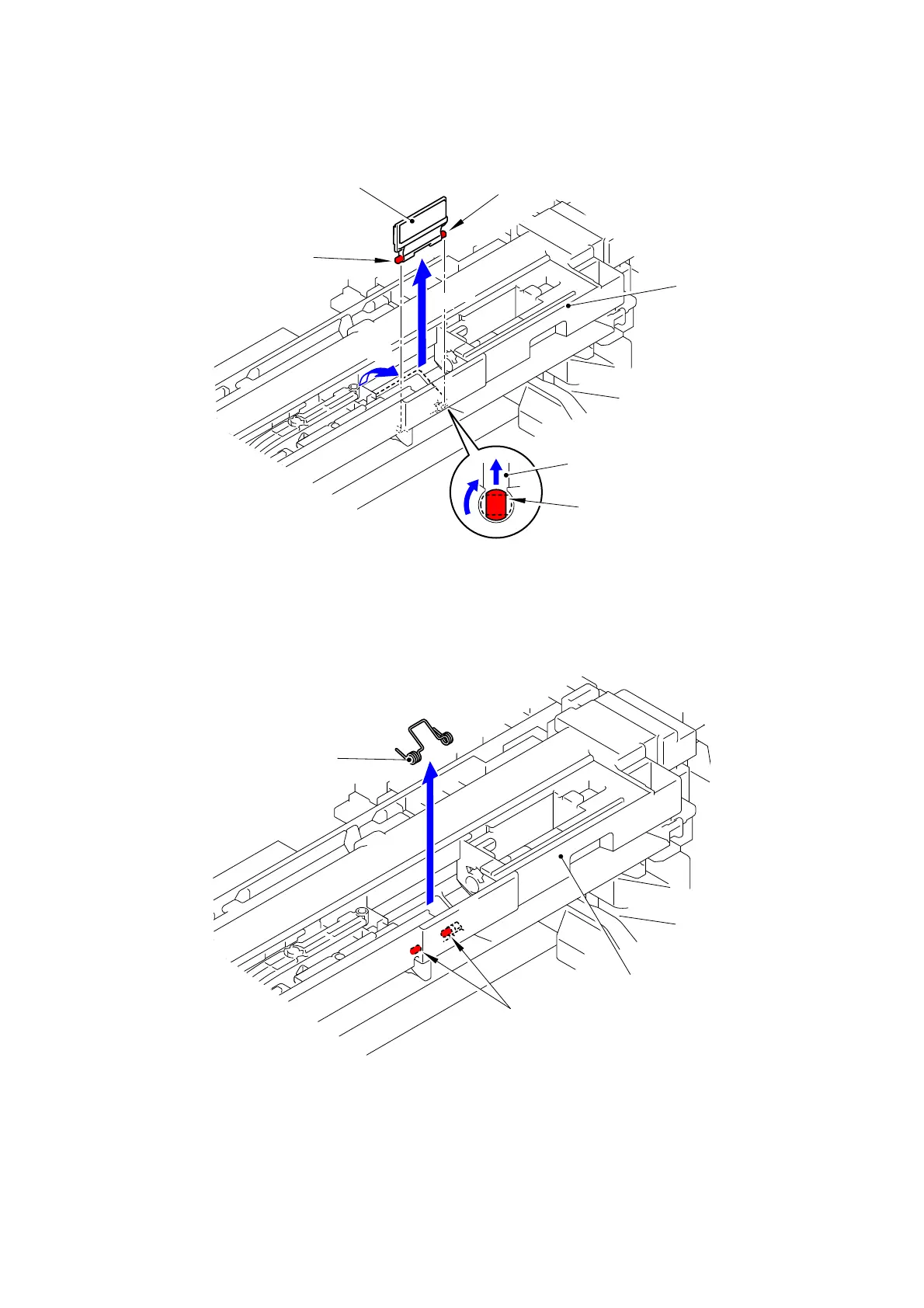

(6) Turn the MP separation pad ASSY upright to remove it from the MP upper cover ASSY.

Fig. 7-91

(7) Remove the MP separation pad spring from the two Pins of MP upper cover ASSY.

Fig. 7-92

(8) After replacing the PF kit MP, reset the counter. (Refer to “1.3.37 Reset counters for parts

(Function code 88)” in Chapter 5.)

MP separation pad ASSY

MP upper cover ASSY

MP separation pad spring

MP upper cover ASSY
