66.23 (1682.2mm) - 20 in.
72.23 (1809.2mm) - 25 in.
77.23 (1961.6mm) - 30 in.
37.0
(939.8mm)
29.51
(749.5mm)
25.97
(659.6mm)
38.06
(966.7mm)
37.29
(947.16 mm)
23.88
(606.5mm)
81°
6°
15°
60°

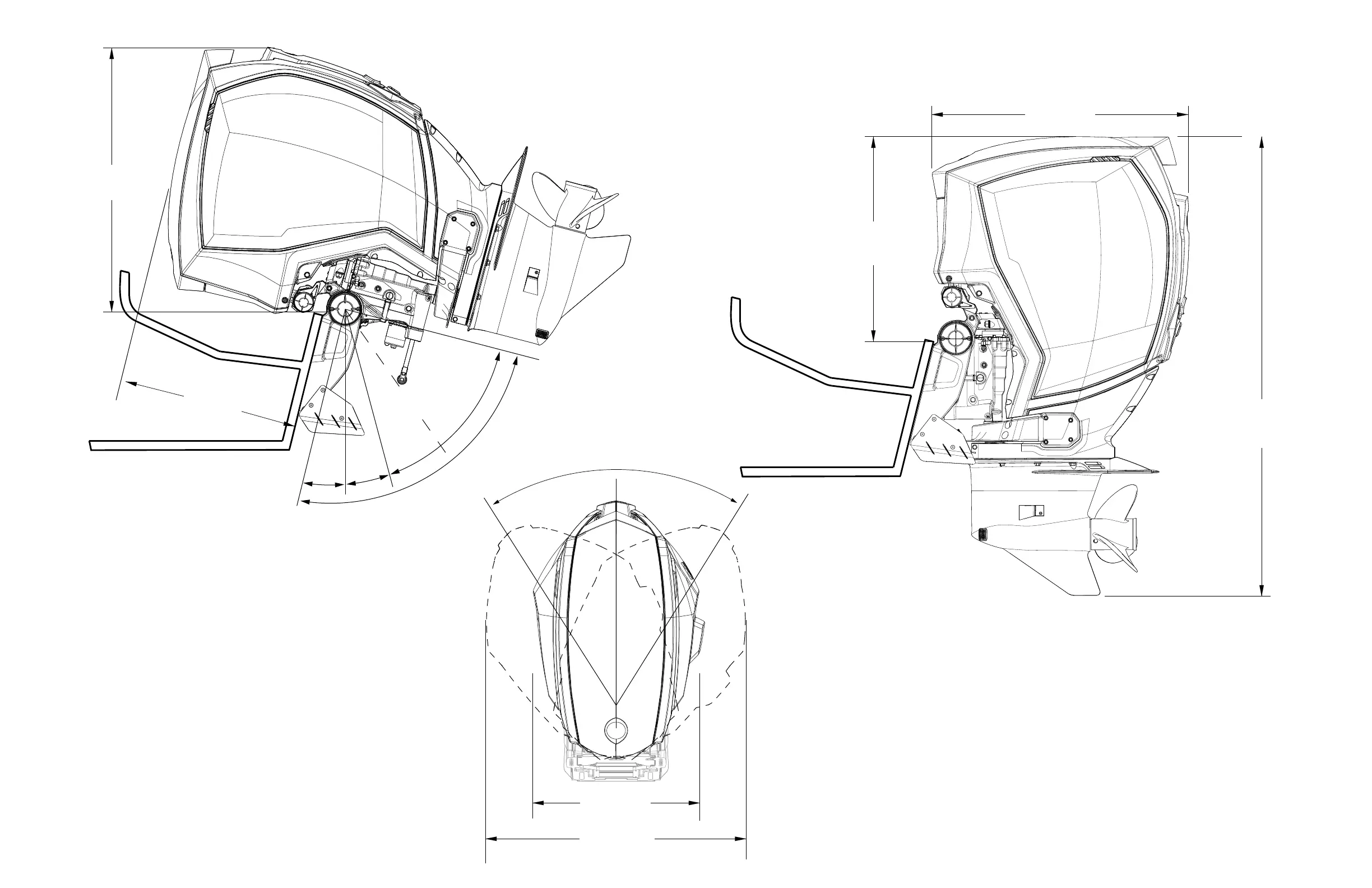

PROFILE DRAWING
Evinrude
®
E-TEC
®
G2
Full Featured 74° V6 3.4 L
64°
Power Trim & Tilt
FULL FEATURED MIDSECTION
Total Range: 81°
Total Trim Range: – 6° to 15°
†
Trail Lock Position: 35°
Total Tilt Range: 54°
All measurements based on:
Transom Angle: 14°
Transom Thickness: 2-3/4 in. (68.58 mm) Maximum
GRAPHICAL REPRESENTATION ONLY
All dimensions ± 1/4 in. (6.35 mm)
†
35°
