Plug Installation
Install the following plugs from the Owner’s Kit:
1. Apply Triple Guard grease to the threads of the
flywheel. Then install the Flywheel Thread
Plug, P/N 357323 to protect the threads from
corrosion.
2. Install the 3.5 inch Air Duct Plug, P/N 357310,
to help cool the stator.
IMPORTANT: Firmly press on the perimeter of
the plug to install. When the plug is installed cor-
rectly, the center will be depressed approximately
0.25 in. (6 mm).
3. Install the 4.0 inch Center Frame Plug,
P/N 356050, and the 2.0 inch Timing Pointer
Plug, P/N 356468, to provide correct air flow to
the engine.
NOTICE
Install plugs as indicated. Plugs MUST be
installed to prevent water entry and/or engine
performance issues.
Make sure plugs are securely installed to pre-
vent loosening during engine operation.

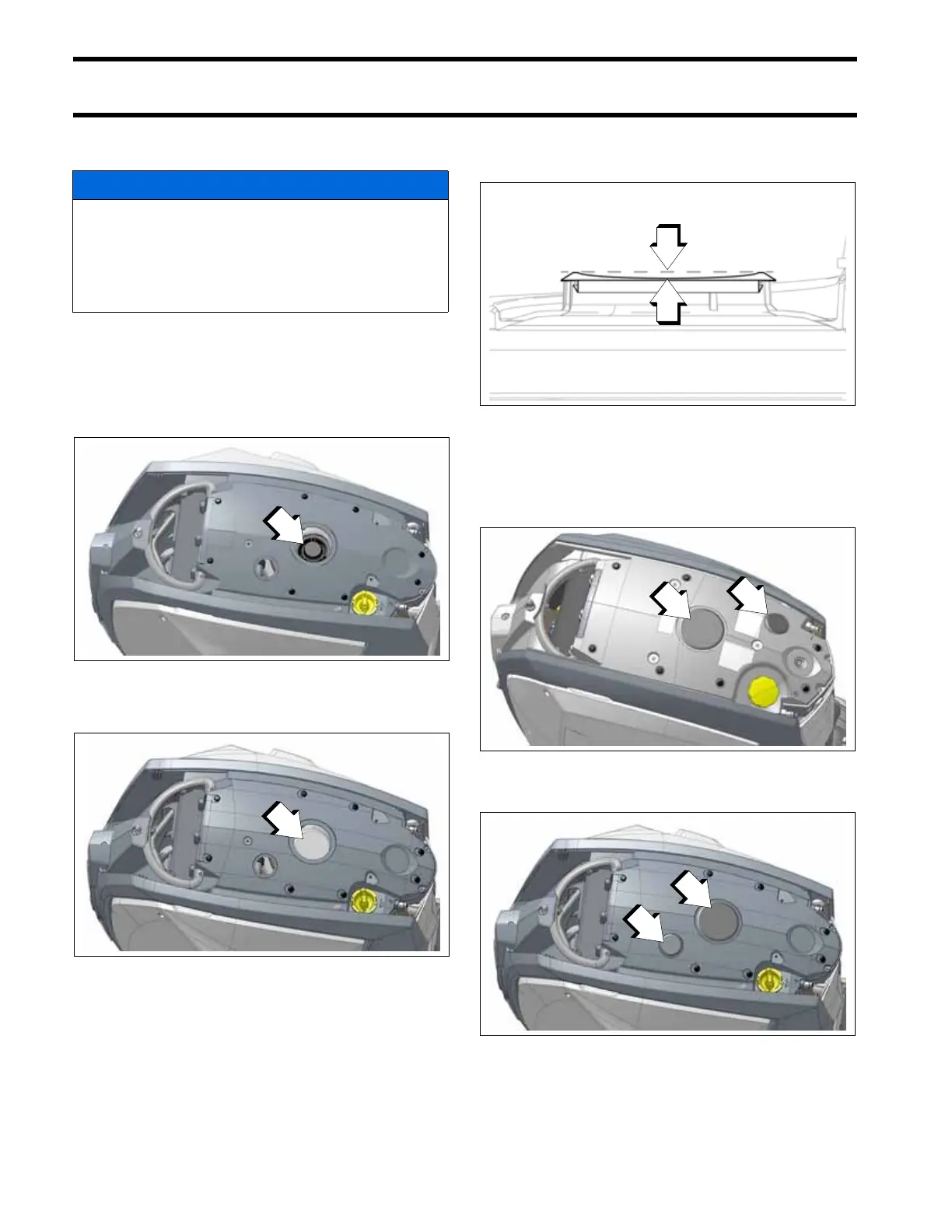

1. Flywheel thread protector
009102
1. 3.5 inch air duct plug
009103
1
1
Air Duct & Plug (sectioned view shown)
009956
1. Center of plug depress 0.25 in (6 mm)
66° V6, 150 - 200 HP Models
009908
1. 4 inch center frame plug
2. 2 inch timing pointer plug
74° V6, 200 H.O. - 300 HP Models
009104
1. 4 inch center frame plug
2. 2 inch timing pointer plug
