Outboard Installation
Outboard Mounting

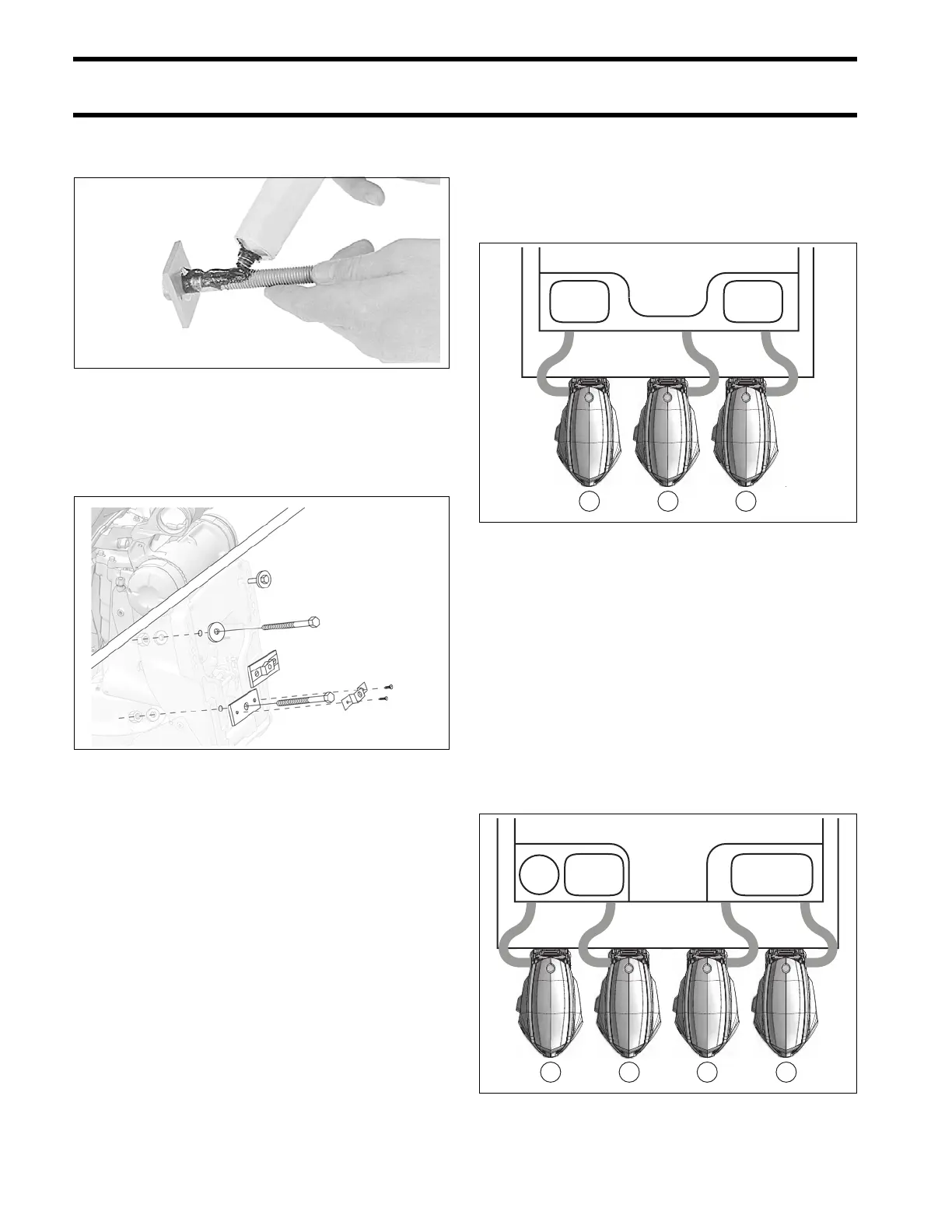

Apply marine sealer under hex heads of bolts, on
the mounting plates, and to the bolt shanks.
Assemble transom mounting plates on mounting
bolts.
Install the mounting bolts through the transom
from the inside of the boat.
Position the square aluminum transom mounting
plates (when applicable) so the retainer holes are
horizontal.
Position hex head of bolt with flats toward holes in
the mounting plates. Install retainer over hex head
of the bolt and secure it with screws provided.
Install all washers and nuts. Tighten nuts and
bolts to a torque of 40 ft. lbs. (54 N·m).
Multiple Outboard Transom
Mounting Locations
A three outboard installation REQUIRES 2 DPS
outboard models.
Install DPS outboards in the following transom
positions:
• 1 and 2, or
• 2 and 3, or
• 1 and 3
A four outboard installation REQUIRES 2 DPS
outboard models. One DPS outboard MUST be
mounted on the port side of the boat and the other
on the starboard side of the boat.
Install DPS outboards in the following transom
positions:
• 1 and 3, or
• 2 and 3, or
• 2 and 4
Do NOT install DPS outboards together in tran-
som positions 1 and 2, or 3 and 4.
0078A
009101
Transom Positions - Three Outboards
Transom Positions - Four Outboards
