Predelivery
Cover Installation
Cover Installation

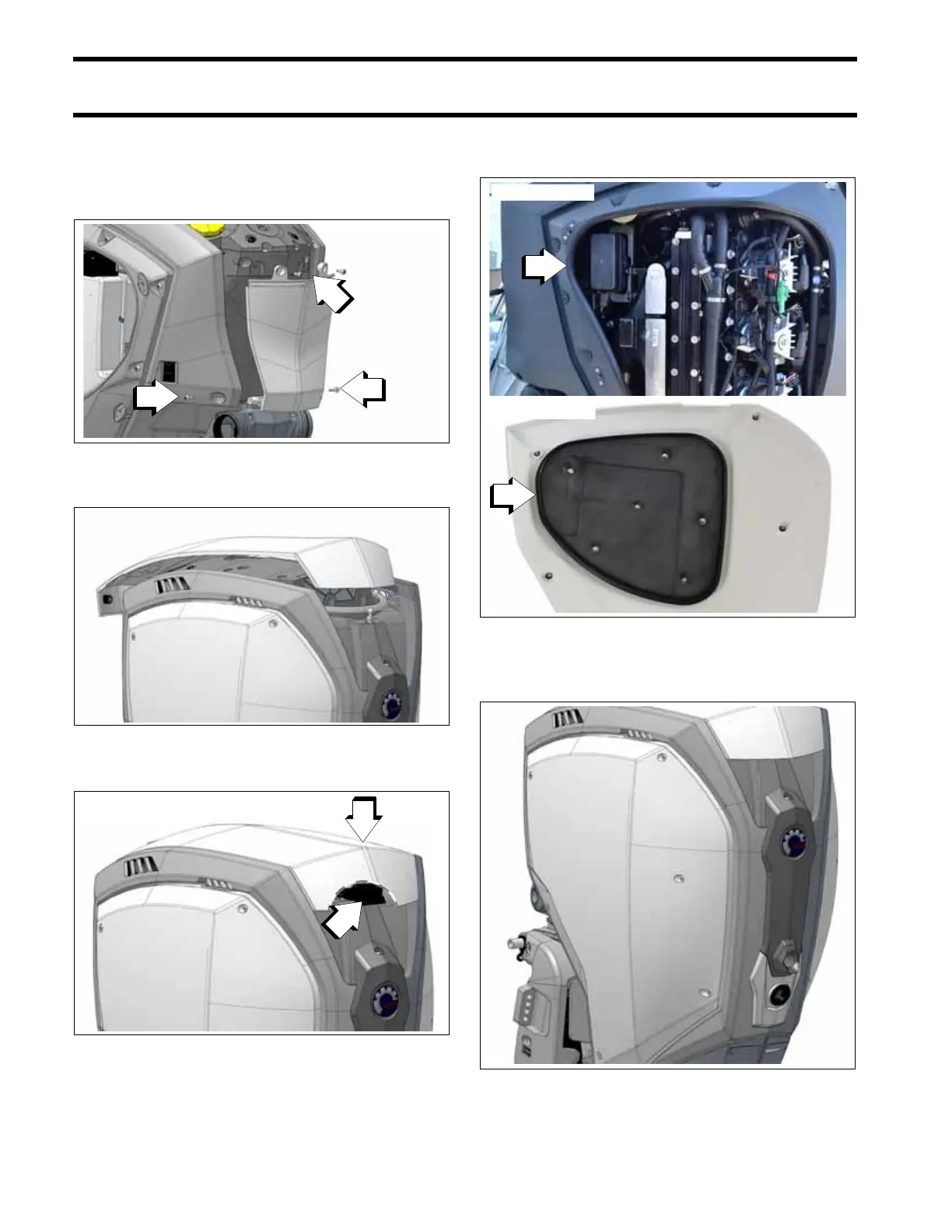

Install the front cover. Install the upper screws
first. Then tighten the four front cover screws.
Install the top cover.
Push down to secure the latch.
Use a shop towel to liberally apply Silicone Spray,
P/N 775630 to port and starboard rubber seals.
Install the port and starboard covers. Tighten the
screws one-quarter turn.
1. Screws 010266
010262
Top Cover (cut-away view shown) 010261
1. Latch
1. Rubber seal 010268
1. Quarter-turn screws 010264
