BRP Evinrude E-TEC G2 150 HP - 66° V6 Models Hose and Cable Lengths (Full Featured Midsection)

64
Outboard Rigging
Buss Cable, Hoses, and Wire Routing and Connections

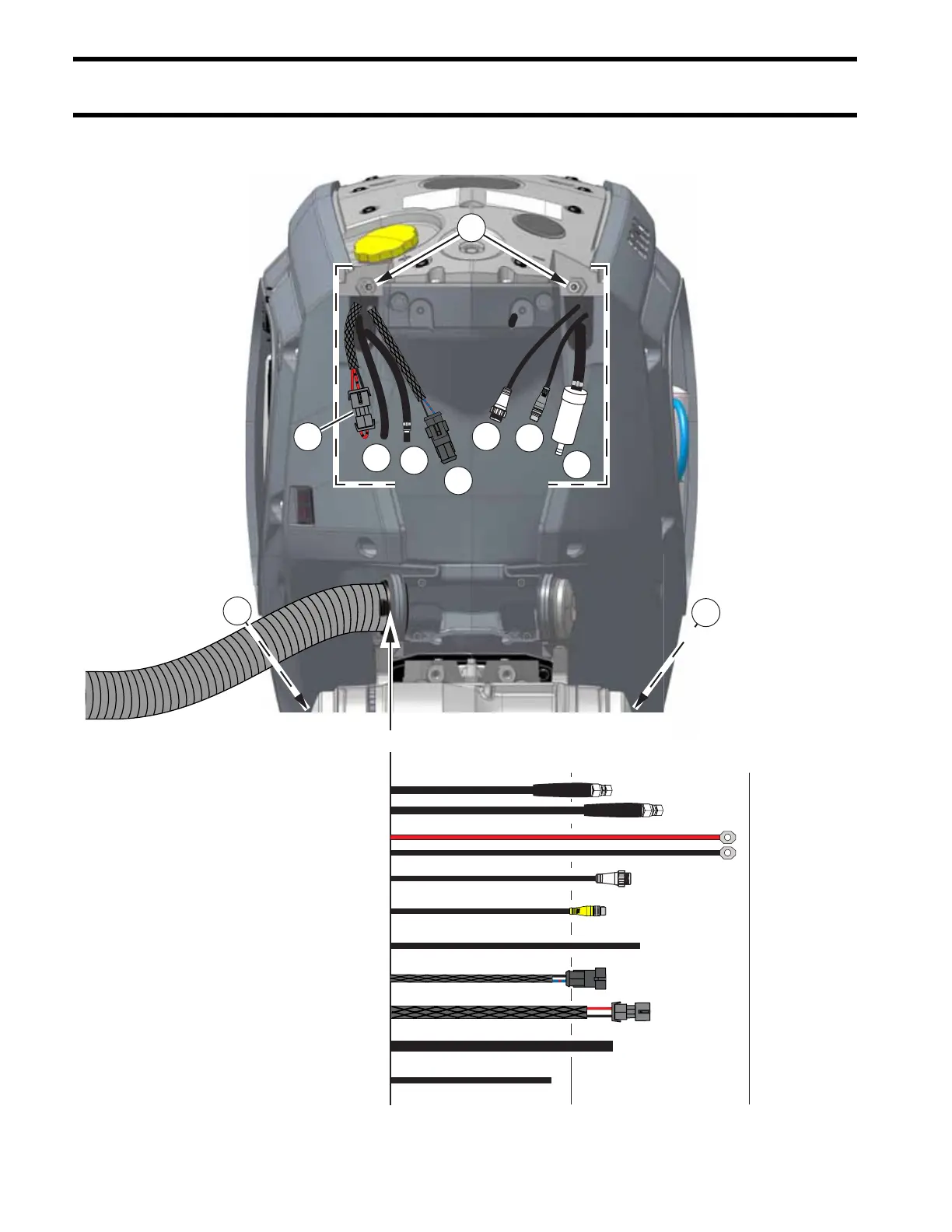

66° V6 Models Hose and Cable Lengths (Full Featured Midsection)
009936
6
9
4
2
7
1
8
3
5
0 5 10 15 20
254 508
10
Component inches mm
1. Starboard Steering Hose 12 305
2. Port Steering Hose 15 381
3. Battery Cables 21.5 457
4. NMEA 2000 Network 13.25 337
5. Control Network 13 330
6. Flush Hose 14 356
7. Remote Oil Tank Connector 12 305
8. Auxiliary Battery Connector 14.5 368
9. Fuel Hose 12 305
10. Remote Oil Tank Hose 9 229
