BRP Evinrude E-TEC G2 150 HP - Page 157

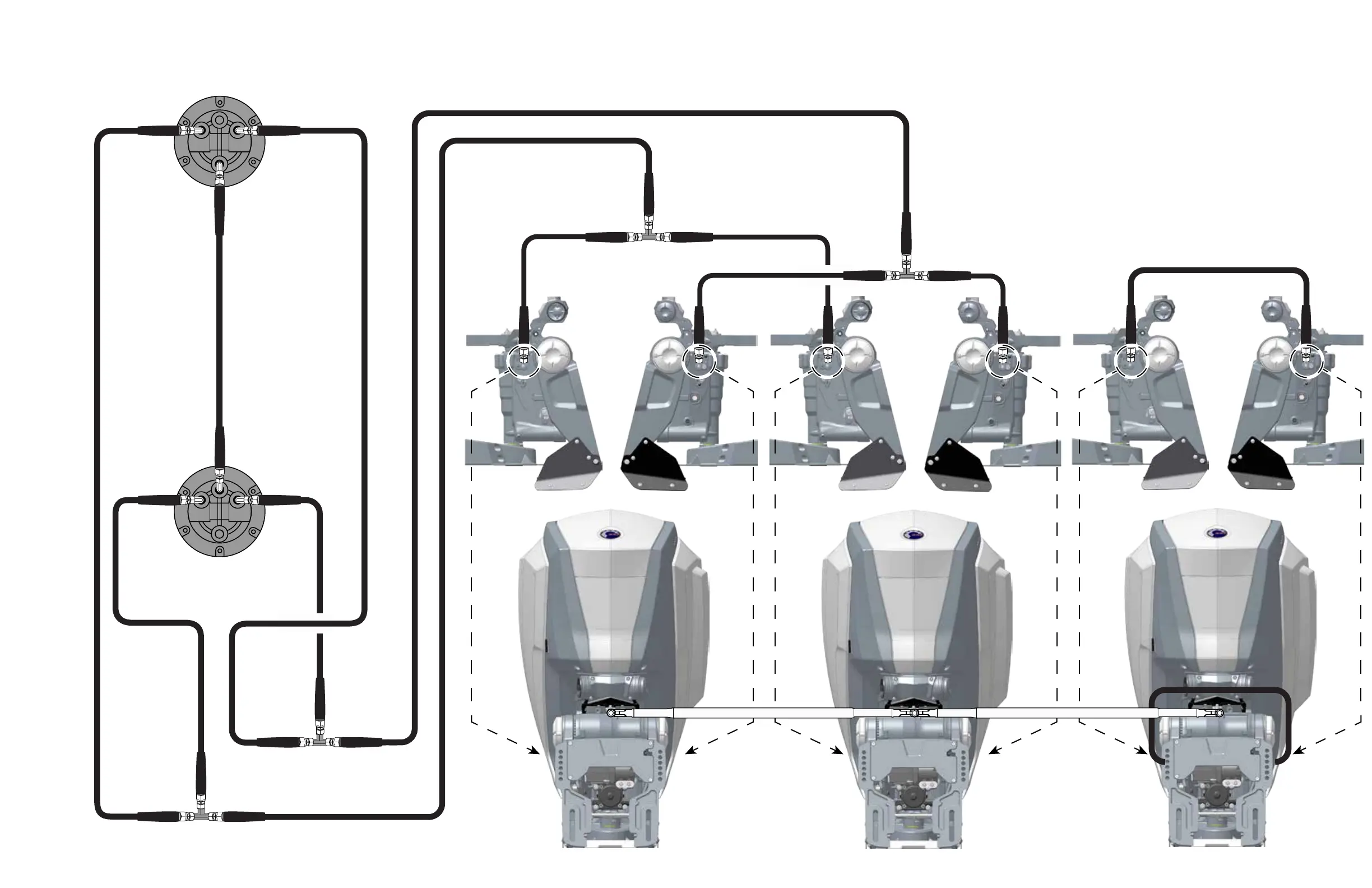

06_Steering Hose Diagram
2 Stations
3 Engines:
2 DPS, 1 non-DPS
2 Standard Rotation & 1 Counter Rotation
Or 2 Counter Rotation & 1 Standard Rotation
Mechanical Tie Bar
Starboard
Port
DPS DPS non-DPS
