42
Boat Rigging
Cable and Hose Installation

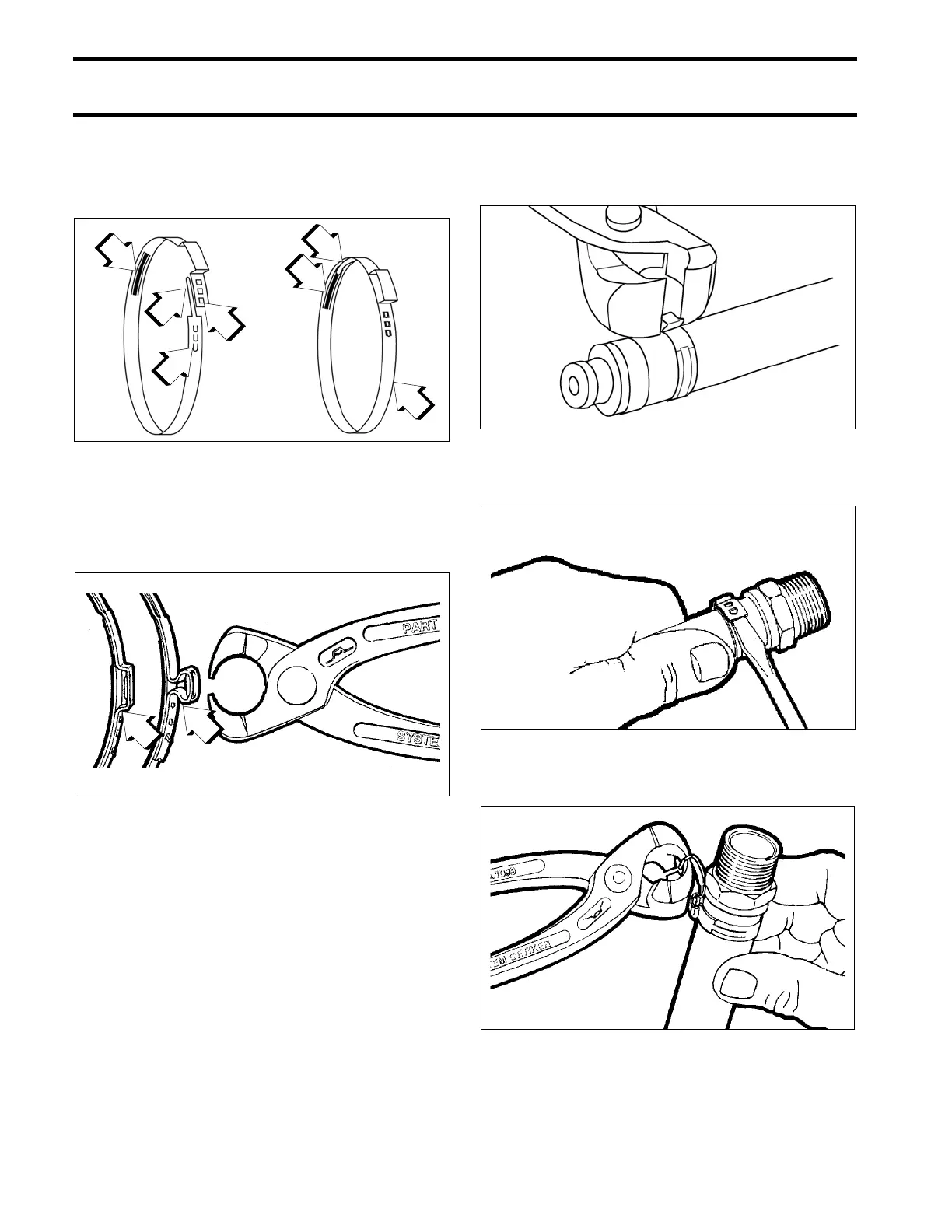

Larger size Oetiker clamps may come apart
during handling. To reassemble the clamp, con-
nect the end loop to the end hook. Make sure the
alignment tab is installed into the alignment slot.
• Close clamp ear fully with Oetiker pincers (pli-
ers).
Clamp Removal
Method 1: Position Oetiker pincers across clamp
ear and cut clamp.
Method 2: Lift end of stepless clamp with screw-
driver.
Method 3: Use Oetiker pincers (pliers) to grip
clamp. Pull clamp off of connection and discard.
1. End loop
2. End hook
3. Alignment tab
4. Alignment slot
5. Correctly assembled clamp
009095
1. Open clamp
2. Closed clamp
000092
000108
000090
000091
