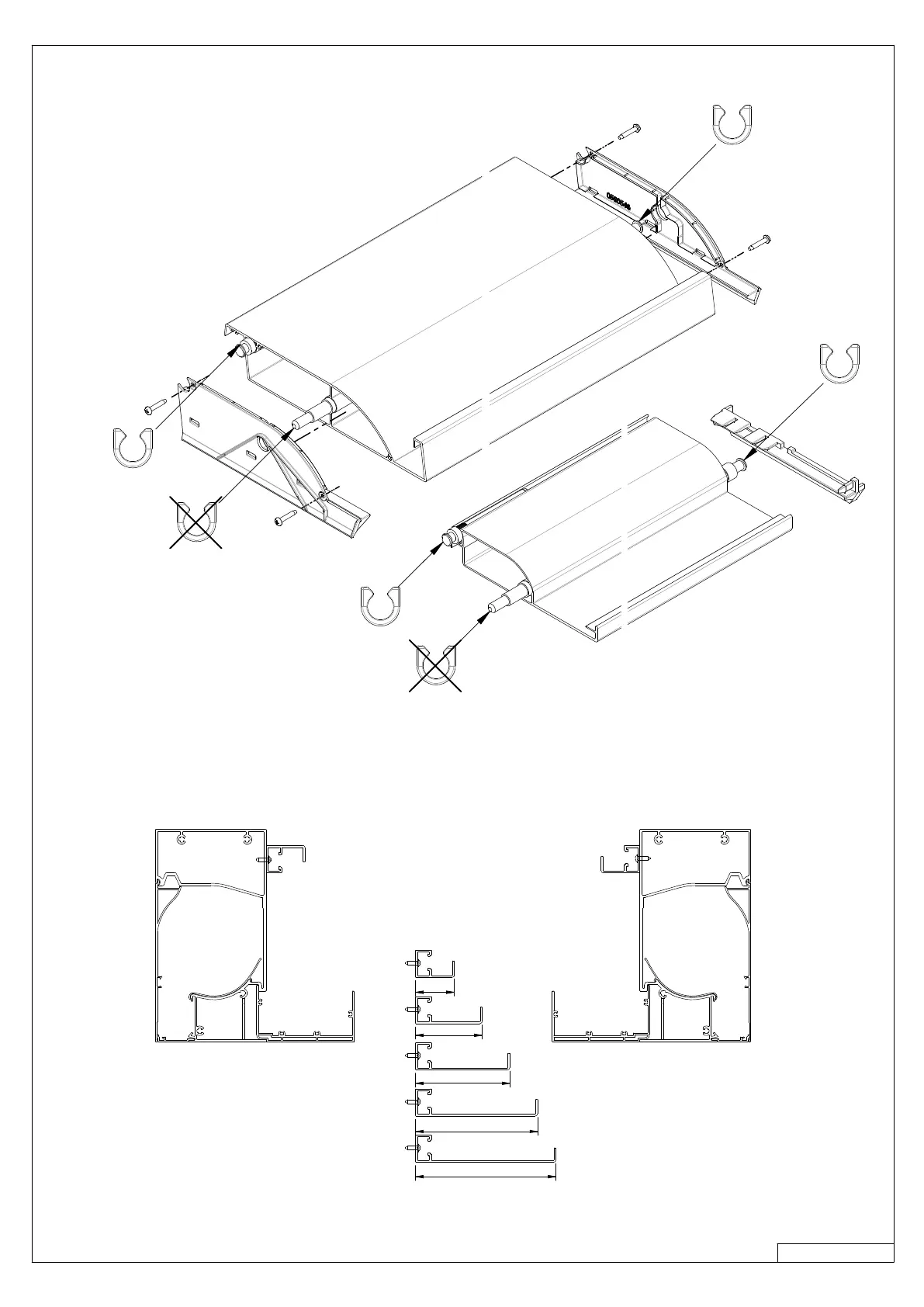

6.a PREPARATION OF THE LOUVRES
› Foresee every louvre with two water guides.
› Clips a small bearing onto every axle with an edge.
6 LOUVRES
6.b FIRST LOUVRES
› Fix the "first louvres" to the mainhousings W1 and W2.
› The holes are already pre-drilled in the mainhousings.
6”
5-1/4”
4”
2-7/8”
1-5/8”
2W1W
Different types - First louvre
