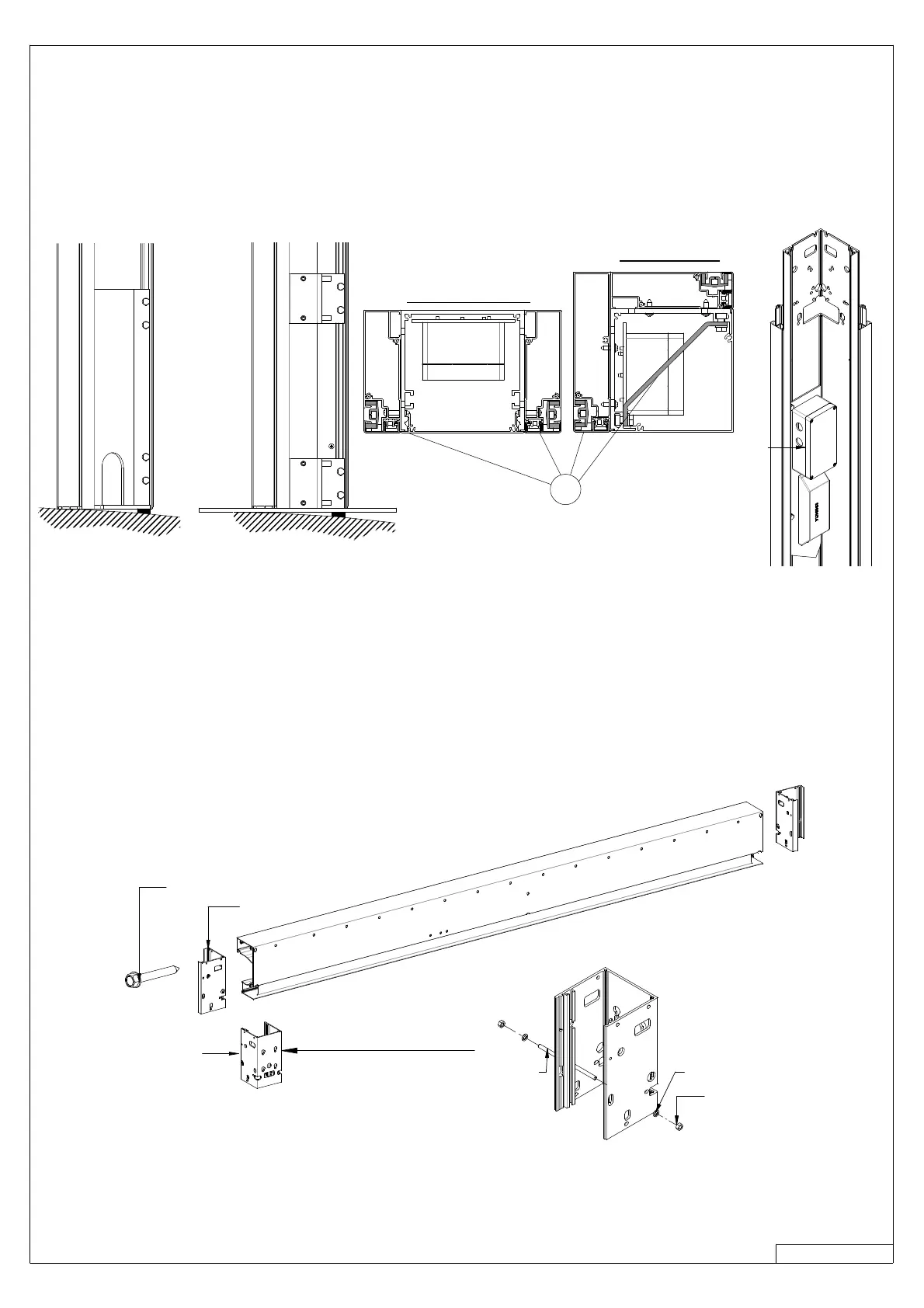

2. PLACING THE VERTICAL POLES
3. MOUNTING THE CROSS MEMBERS
2 x 4 DIN7504K 6.3x50
Pole Support
Floorplate 20x20
Groundanchor
Electrical
Supply
1
SINGLE POLE
COUPLING POLE
Coupling Pole
Threaded rod M6x156
DIN 934 M6
washer DIN 125 M6
Single Pole
› In case of wallfixation, screw the short poles on to the side of the cross members.
› For a coupled unit prepare the junction part, as shown on the drawing below.
› Hook the cross members on to the walladapter.
› Remove the Pole supports from the vertical poles, also remove the premounted screenguides, and the reinforcement (1).
› Attach the pole supports or floorplates onto the floor.
› Check the dimenions from the previous page again, before fastening the bolts.
› Place the vertical pole (possibly with pre-assembled screen guides) over the supports.
› Make sure that the pole is mounted perfectly vertical.
› If necessary fill up the bumps.
› One of the poles contains the electrical supply for the louvremotor and, possibly, the led lights.
Make sure this pole is placed on the right position (according to your order).
