BRUSTOR B200 - Single Unit Cross Member Mounting; Two-Part Roof Cross Member Mounting

OL-B200(XL)-05
SW10
4x
1
2
3
Longer bolt
SINGLE
ROOF IN 2 PARTS
DIN 912 M8x25
3/8” to 5/8”
Motor cable
Wall fixation
!
Gasket

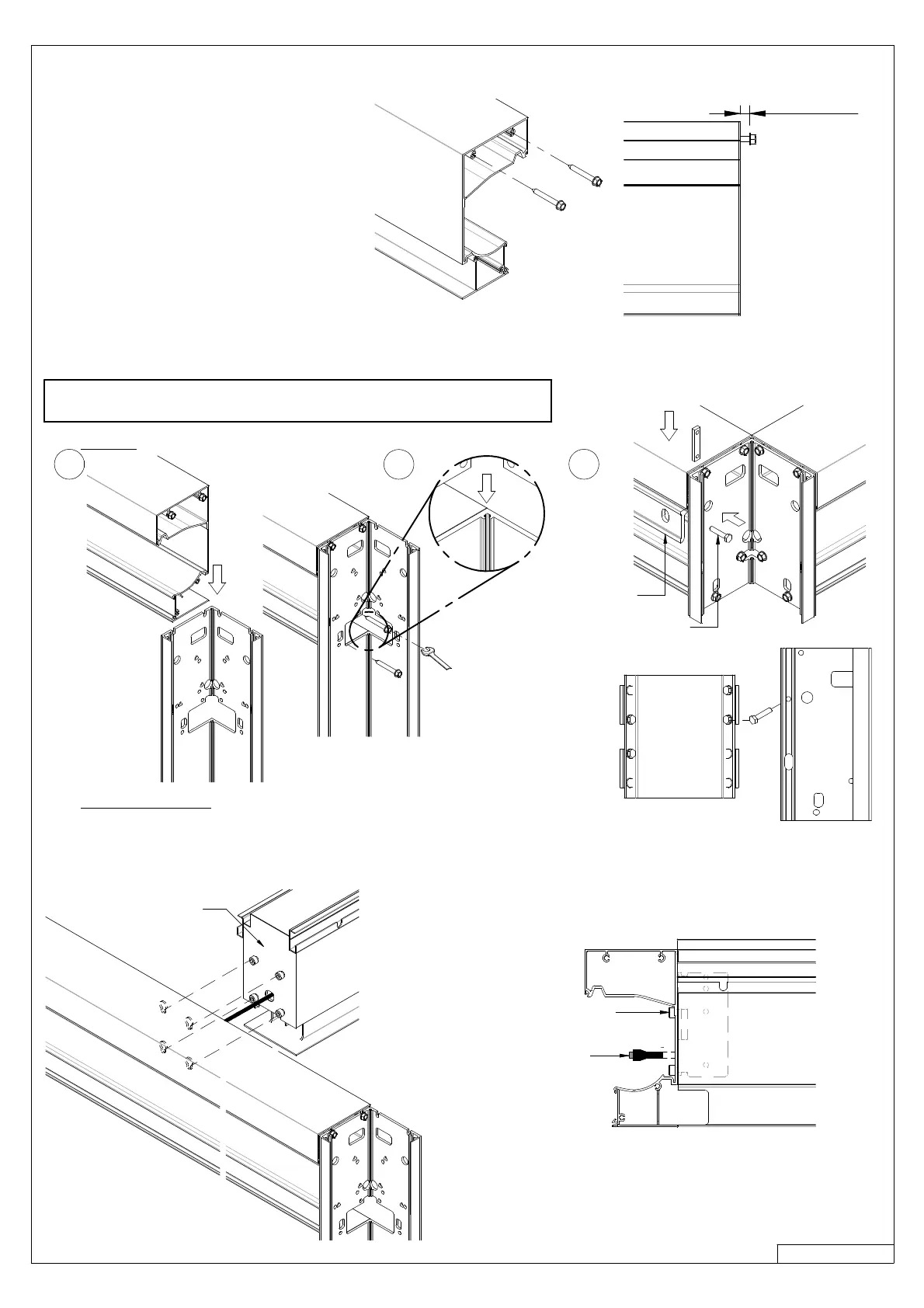

› Screw 4 bolts (M8x25) in the coupling profile at the left and right side, screw them until 3/8” to 5/8” from the end
› Make sure the gasket is installed
› Hook the middleguide between the 2 screenboxes
› Secure both sides of the middleguide with 4 bolts through the cross members. (M8x25)
› Remove the rollertubes from the screens.
› On both ends of the screen, screw the two upper screws in the profile (6.3x50).
› Do not fasten them completely, leave 3/8” to 5/8” free space.
› Hook the cross member
s on to the vertical poles (1).
› Completely tighten both screws.
› Screw the two lower screws in the profile.
Make sure the mainhousing is positioned correctly to the corresponding holes in the pole. (2)
› Place the cross member with the premounted louvremotor on the right place (according to your order).
› In case of wallfixation, secure the cross member by mounting a bolt
on both sides of the screen (3).
DIN933 M6x30
