OL-B200(XL)-08
5. LOUVRE MOTOR
option 1
option 2
PVC
SINGLE
ROOF IN 2 PARTS
3

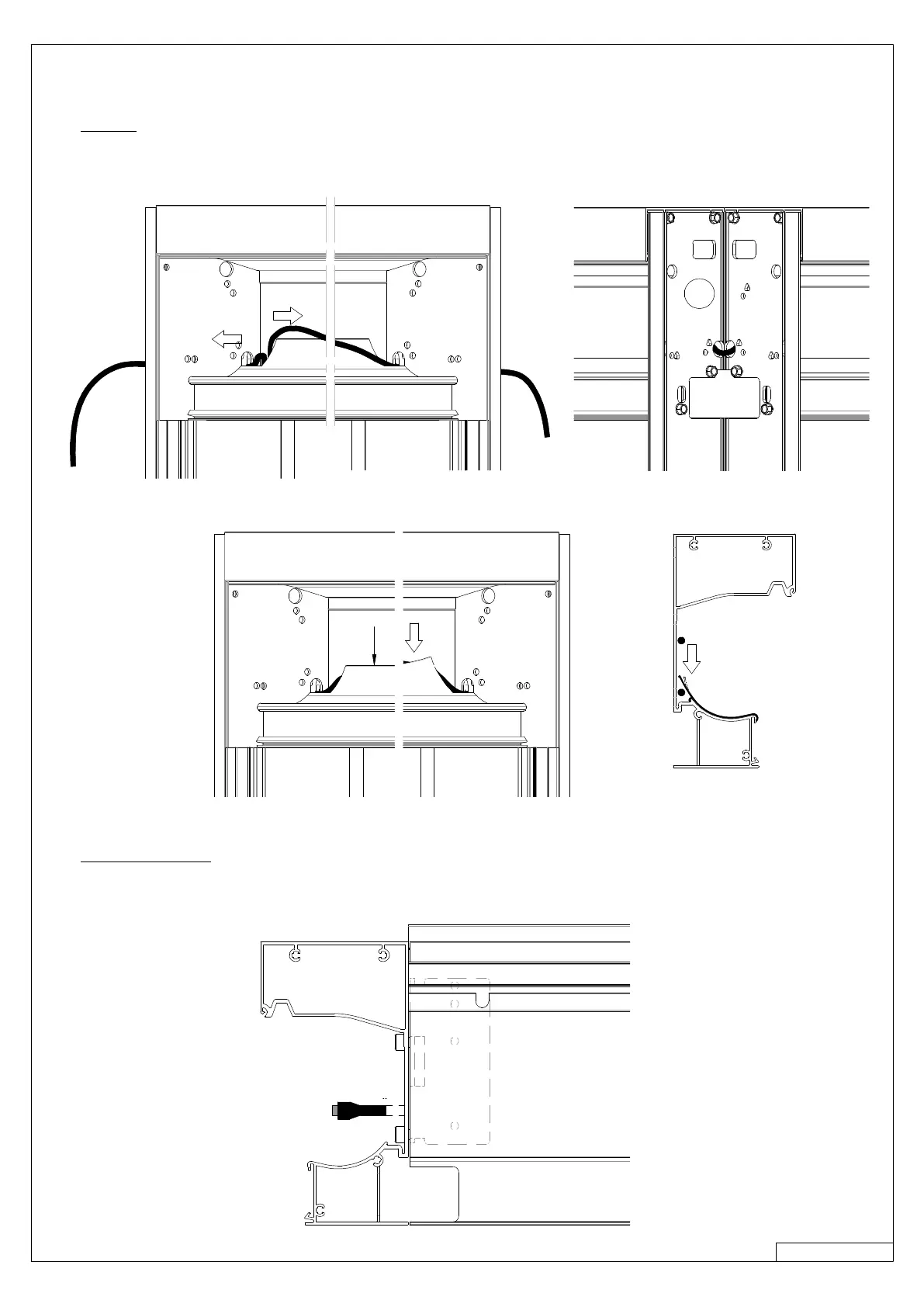

› Guide the cable to the left or to the right, depending on the position of the wiring box.
› Store the motorcable behind the lip of the PVC fabric support profile (see single).
› Place the cable of the pre-assembled louvremotor as shown on the following drawing.
› Depending on the position of the motor to the electrical supply, choose option 1 or 2.
› If necessary, the cable can be diverted inside the vertical poles (nr 3).
› Hide the cable behind the PVC fabric protection
› Position the cables tightly behind the PVC fabric support or stick them to prevent unevenness in the screen fabric.
