BRUSTOR B200 - Couple;Door Profile Cross Member Mounting

OL-B200(XL)-06

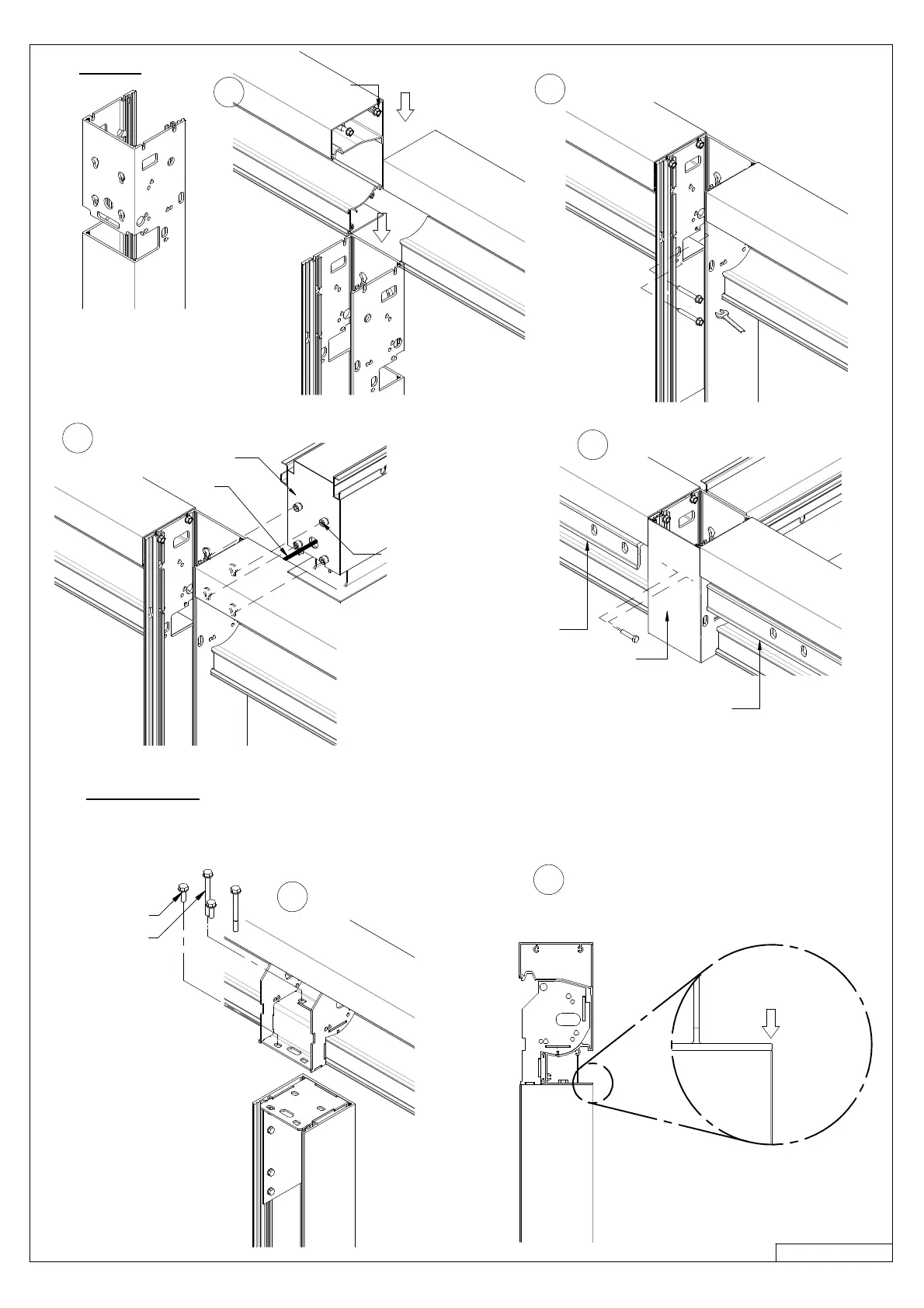

Coupling profile
1
2
3
1
COUPLE
DOOR PROFILE
4 x DIN 912 M8x25
Coverplate couple pole
wall fixation
6.3 x 50
Motor cable
Gasket
Wall fixation
Wall fixation
M8 x 25
M8 x 80
1
2
!
› Remove the rollertubes from the screens.
› Place the door profile below the unit and fix it. (1)
› Make sure the profile and the mainhousing are perfectly aligned. (2)
