8. DRAIN
SINGLE COUPLE

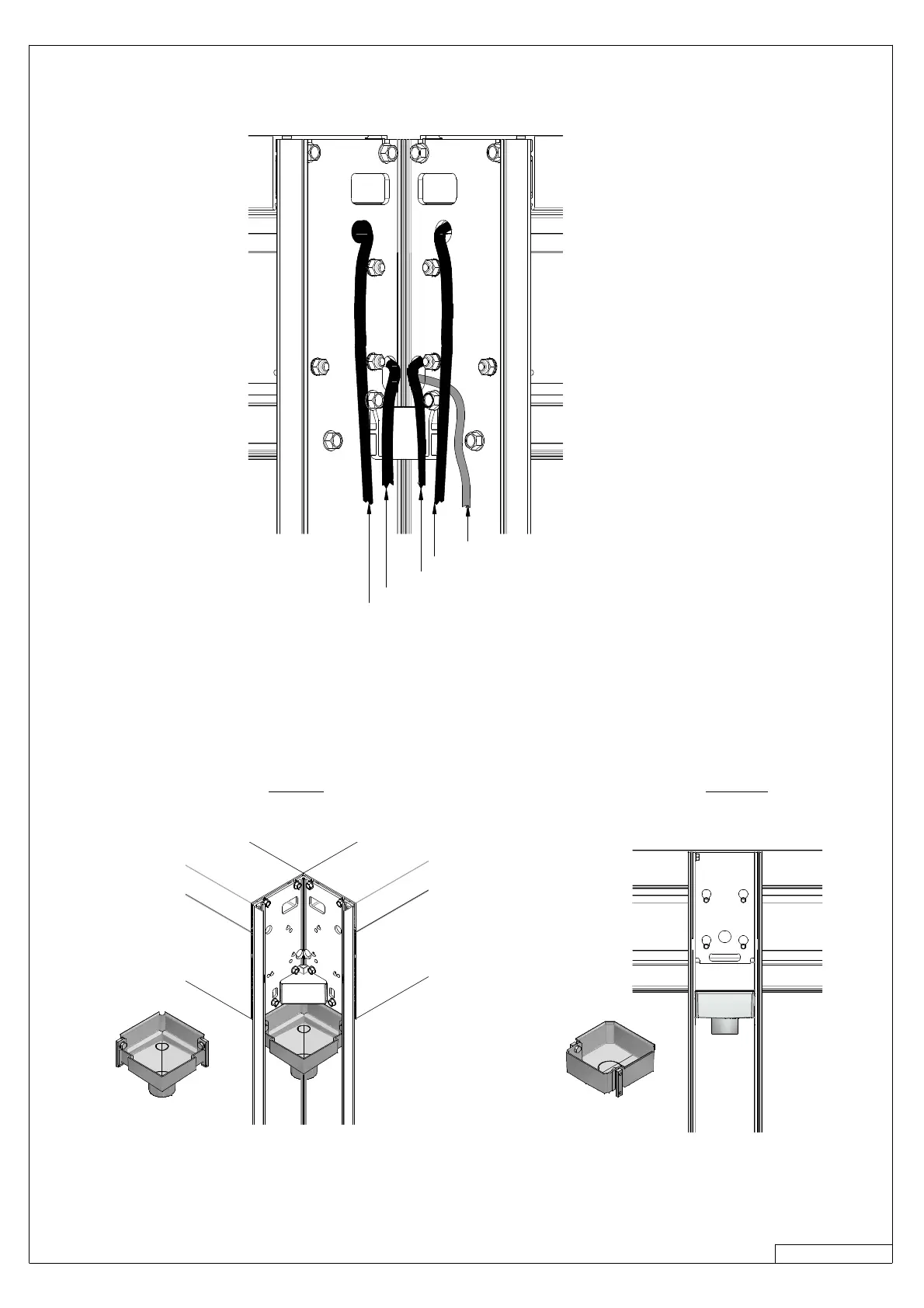

› After installing all the motors, the vertical pole with the electrical supply should look like this:
› The number of cables depend on the numbers of screens that have been installed.
› Connection to the electrical supply: see instruction page inside the boxes of the electrical supplies.
› Place in one or more vertical pole a support for the drain.
› If possible, place the drain on the lowest side of the louvres. 1drain / 49ft².
› Tighten all bolts.
› The water evacuation pipe can not be installed in a
door profile.
Cable louvremotor
Cable screenmotor (nr 2 on diagram 7.a)
Cable screenmotor (nr1 on diagram 7.a)
Cable screenmotor (nr 1 on diagram 7.a)
Cable screenmotor (nr 2 on diagram 7.a)
To Next Page
