OL-B200(XL)-20

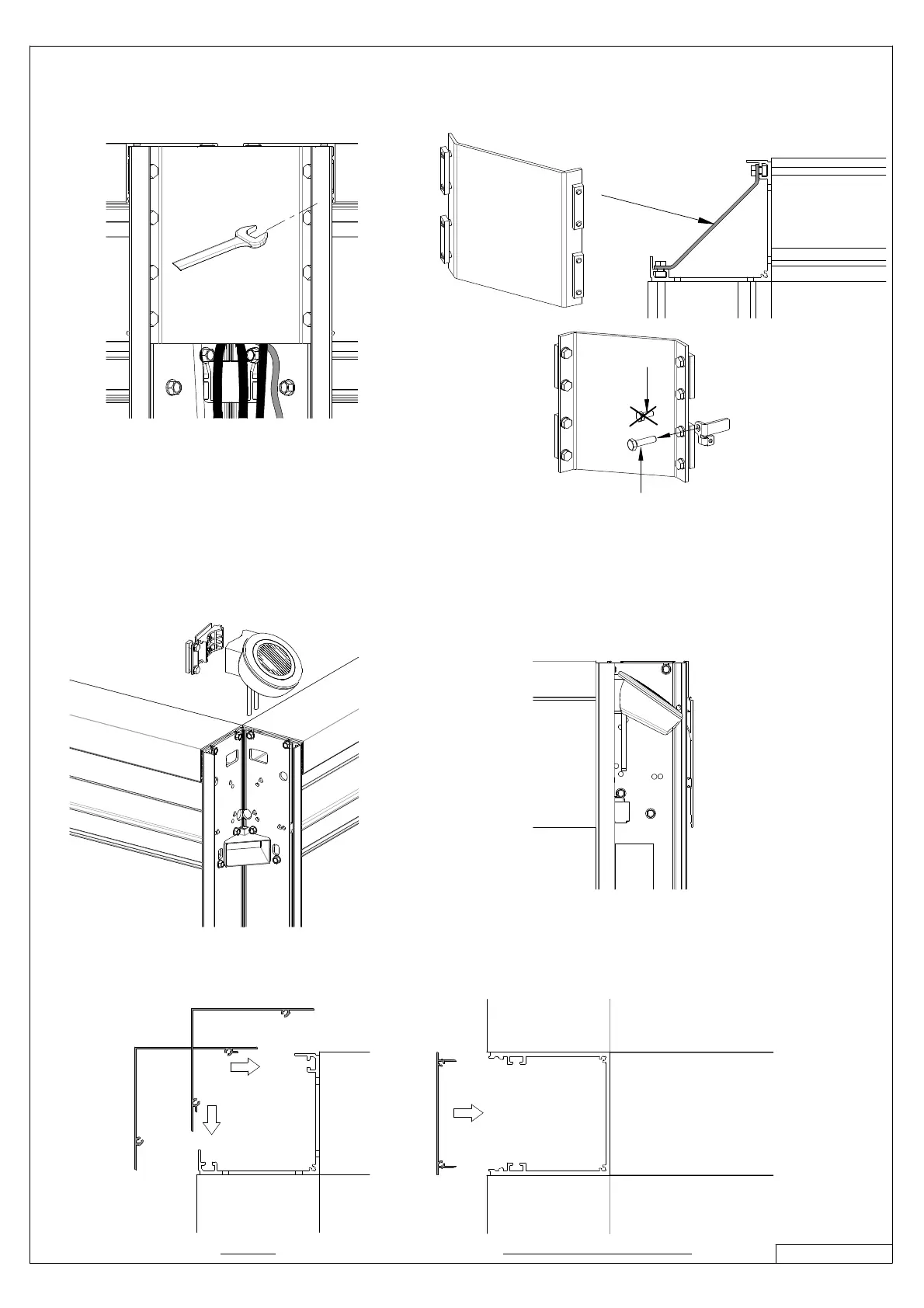

13.d COVER VERTICAL POLES
SINGLE COUPLE / DOOR PROFILE
13.b REINFORCEMENT
sw10
8x
13.c RAIN/SNOW SENSOR
M6x25
M6x12
› Screw the rain sensor on the suppor, and bring it in the vertical pole.
› When the rain sensor is mounted in a pole without electrical supply, guide the cable through the screens.
› Place the rain sensor as high as possible in pole, but make sure that the sensor is mounted completely inside the pole.
› Place a cover on every vertical pole, and secure the cover by mounting a top cover on top of the poles.
› The cover can be mounted in two directions.
› Do not place a top cover when a rain sensor has been mounted.
› Place a reinforcement in every vertical pole.
› When a rainsensor will be mounted in the vertical pole, slide the reinforcement 140mm down.
› Replace one bolt with a longer model (M6x25) to lock the cover mainhousing.
5-1/2”
