OL-B200(XL)-11
COUPLE OR ROOF ROOF IN 2 PARTS
FRONT VIEW
1
2
FRONT VIEW
L2
L1

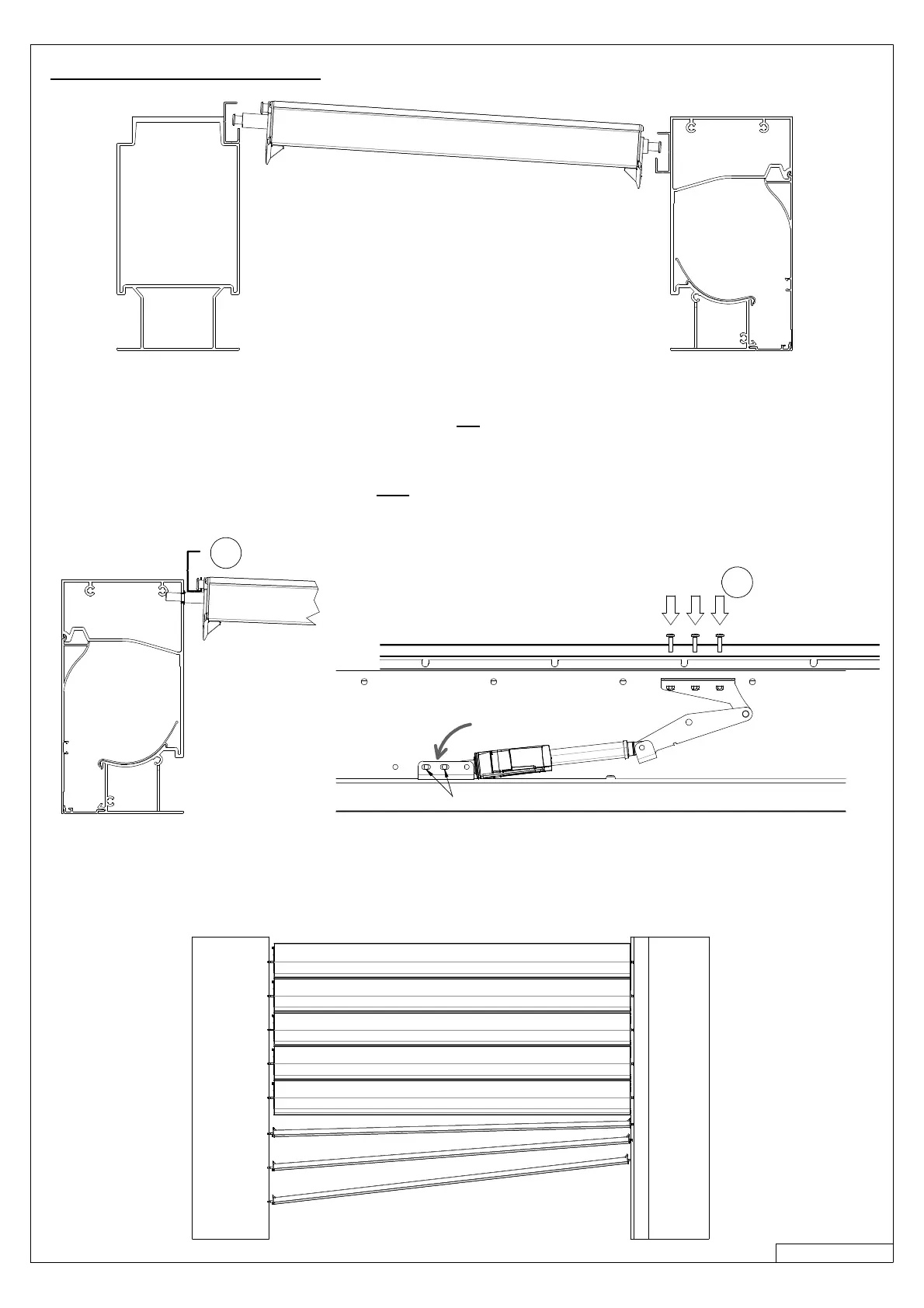

› Place a few louvres at one side.
› Turn the motor so it's positioned horizontally.
› Position the movable louvreholder, and hook the already installed louvres. (1)
› Then fix the movable louvreholder to the motor bracket. Do
not
tension the bolts at the bottom yet! (2)
›
First program the motor:
Push the PROG button for 2 seconds. Motor moves up and down shortly. In case of a 2M
control, push the PROG button shortly. Second motor will move up and down. Choose a channel on the remote and
confirm by pushing up and down at the same time. Motor moves up and down shortly.
› Now close the roof completely untill you hear a
click
. Then fix the motor.
› Complete the programming of the motor by following the instructions inside the control box.
› Now place the other louvres.
› Place the final 3 louvres in the holes on the L2 side, but don't hook them on the L1 side yet.
› Position them temporarily slanting between L1 and L2 so that there's enough place to easily install the final louvre.
› Also preferably position them upright, instead of flat.
› Hook the louvres into the L1 when all louvres are mounted at the L2 side.
› Then also hook the final louvres into the movable louvreholder.
"
c
l
i
c
k
"
fix the motor completely
