BRUSTOR B200 - Adjusting the Construction; Adjusting for Levelness; Adjusting for Perpendicularity

OL-B200(XL)-07

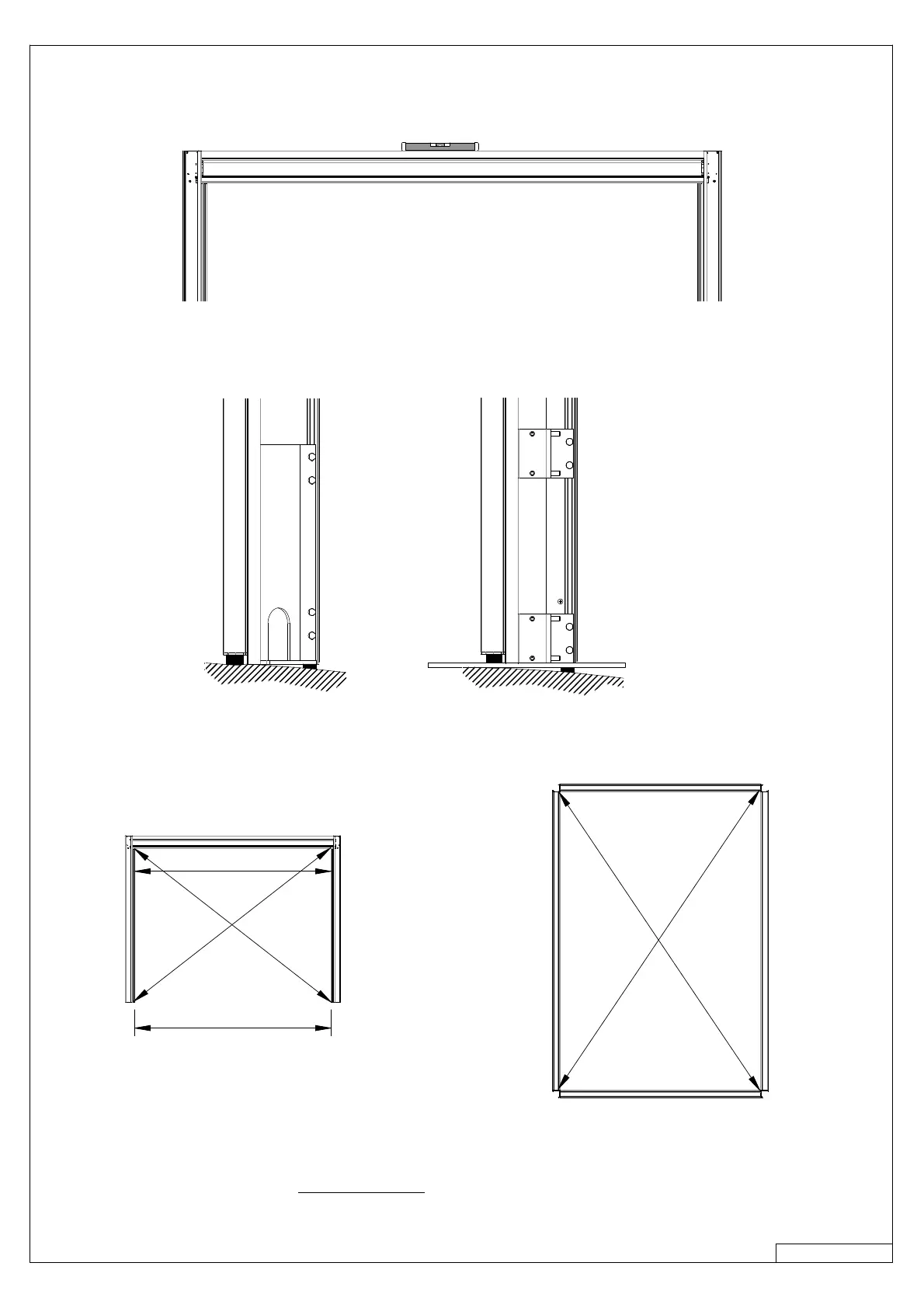

4 ADJUSTING THE CONSTRUCTION
4.a LEVELNESS
L1
L1
L
2
L
2
4.b PERPENDICULARITY
L
3
L
3
Pole Support
Floorplate 20x20
Ground anchor
Side View
Top View
› Check the top side of the construction with a laser or a level.
› If necessary, adjust the construction.
› Move the vertical poles upward untill the top side of the contruction is completely level.
› If necessary use some provisional filling.
› Check the perpendicularity trough the following dimension (L1 ± 2mm !).
› Also check the diagonals of the top side.
› If necessary, the pole supports allow a small adjustment.
› Once everyting has been adjusted, tighten all
the bolts.
› Remove the provisional filling.
(L1 ± 1/8” !).
