BT UPS Enterprise SNMP Agent
Issued by: BT
Version no: 6.1
Date: March 2019
3 NetAgent, UPS and Network Connection
NetAgent II and NetAgent Mini provides External and Internal model for different UPS
interface requirement. Please reference the following description for detailed information
of UPS and network connection.
3.1 Install the NetAgent II with UPS and Network

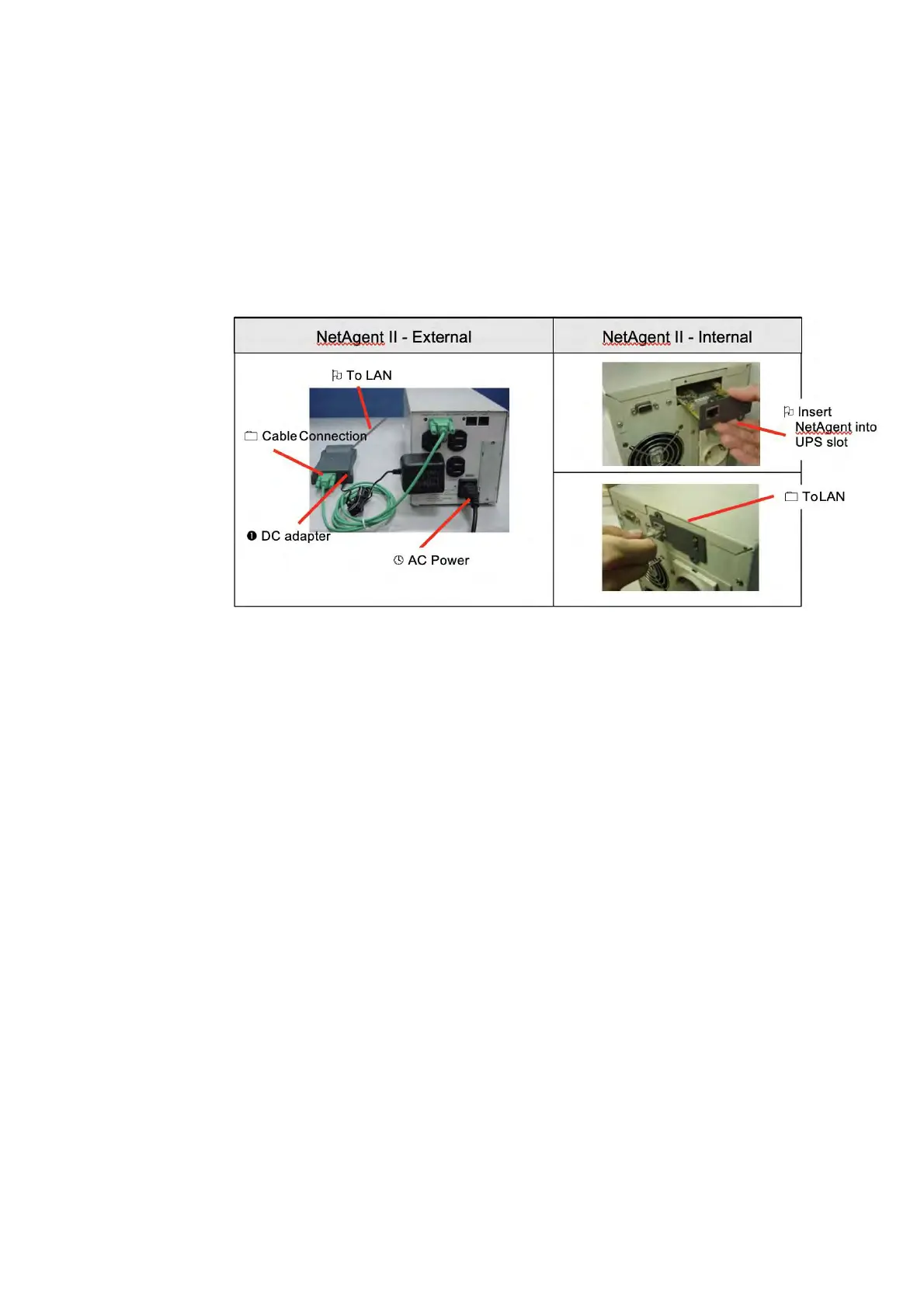

Fig.5 NetAgent II Installation
3.1.1 For External NetAgent II
• Connect the NetAgent II Adapter to LAN, using the appropriate UTP port.
• Connect the specified serial cable (M2501/M2502/M2505) from
NetAgent II Adapter to the serial port of UPS.
• Plug supplied AC adapter to the wall socket, the other side connection with
NetAgent Adapter.
• UPS with AC
3.1.2 For Internal NetAgent II
• Insert the Net Agent Card into the slot of UPS.
• Connect the Net Agent Card to LAN, using the appropriate UTP port.
To Next Page
