BT UPS Enterprise SNMP
Agent
Issued by:
BT
Version
no:
6.1
Date:
March 2019
Page
6
of
103

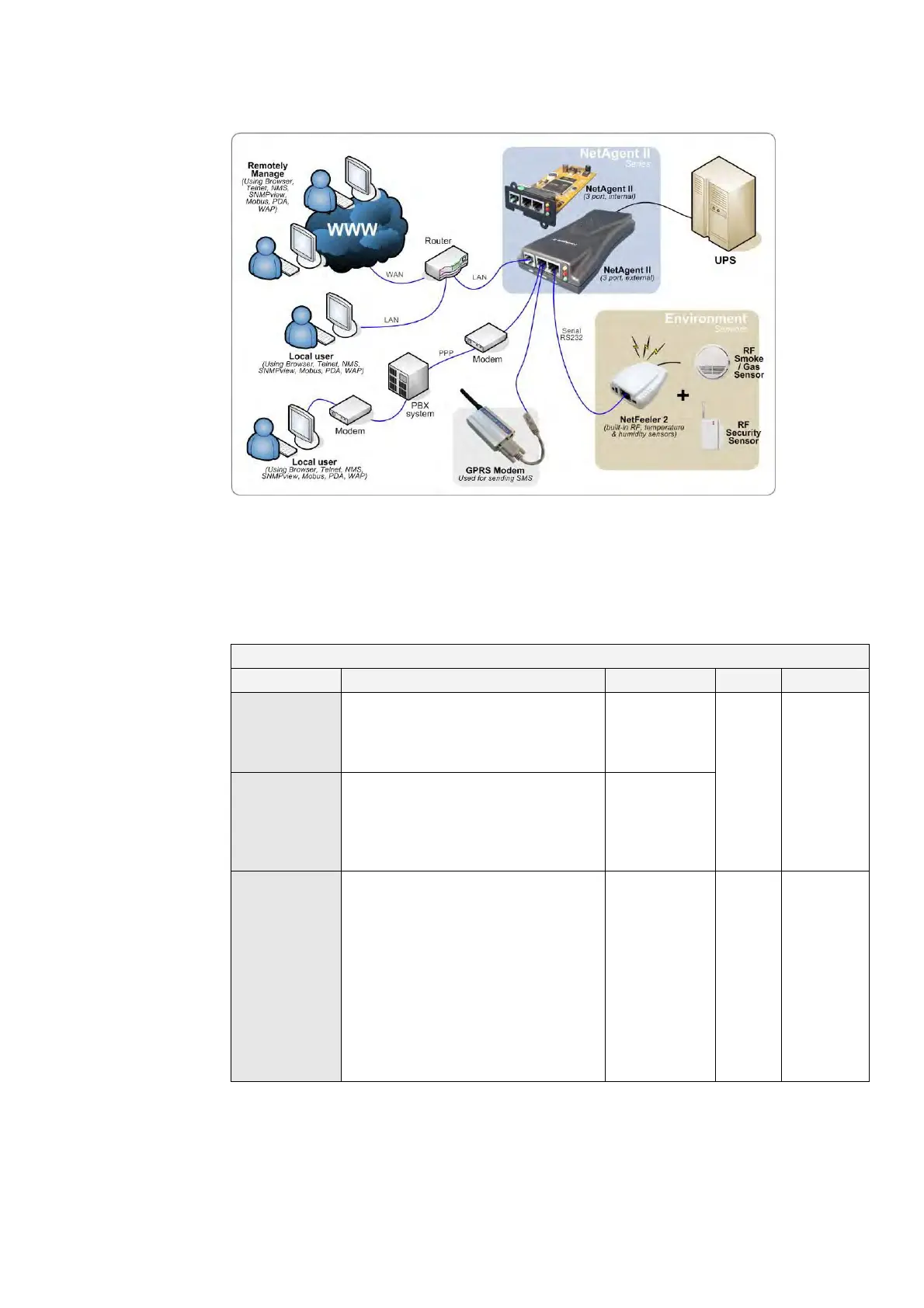

Fig.2 3 Port NetAgent II Di
agram
1.3
NetAgent Models
1.3.1
NetAgent Models
NetAgent II Model
P/N
Package Contents
Internal/External
1/3 Ports
1/3 phases
CP504 CT504
1Port Internal
card
NetAgent Utility
CD
User
Manual
Internal
CP503 CT503
1Port External
card
NetAgent Utility
CD
User
Manual
Adaptor
External
1 Port
1/3 phases
BP505
3 Port External
Agent
NetAgent Utility
CD
User
Manual
M2501 Cabl
e (for
Contact
Closure
UPS)
M2502 or M2
505 Cable
.
(for
RS232
UPS)
M2506 Cabl
e (for
Modem)
9V DC
adapter
External
3 Ports
1/3
phases
5
7
Table of Contents
Default Chapter
2
Table of Contents
2
1 Introduction
4
Features
4
Applications
4
Netagent Makes Your UPS on the Internet
4
Netagent Provides Shutdown Utilities
5
Netagent II for Surrounding Monitoring
5
When We Need the Netagent?
5
Netagent Models
6
Pictures of Netagent II
7
Pictures of Netagent
9
Netagent II Outlook
9
Netagent Mini Outlook
11
Netagent9 Models
11
Netagent 9 Package Contents
14
Netagent 9 Outlook
15
Netagent 9 Mini Outlook
16
2 Netagent UPS Installation
18
3 Netagent, UPS and Network Connection
19
Install the Netagent II with UPS and Network
19
For External Netagent II
19
For Internal Netagent II
19
Install the Netagent Mini with UPS and Network
20
4 Using Netility Setup IP Update Firmware
21
Install Netility
21
5 UPS Web Management by Netagent
26
Introduction
26
Netagent UPS Web Interface
27
System Status
29
System Information
29
Network Status
29
Basic Information
29
UPS Information
30
Battery Information
30
Rating Information
30
Current Status
30
Remote Control
31
10 Second Test
31
Deep Battery Test
31
Test until Battery Low
31
Meter/Chart
32
UPS Buzzer On/Off
32
Modem Status (for 3 Ports Netagent II Only)
33
GSM Modem Operating Status
33
Environment Sensors-Netfeeler II
34
Environment Humidity
34
Water Status
34
Gas Status
34
Configuration
35
UPS Properties
36
UPS Recorded
36
Test UPS
36
Warning Threshold Value
36
UPS On/Off Schedule
37
Weekly Schedule
37
Date Schedule
37
Wake on LAN
38
IP Address
38
Subnet Mask
38
DNS Server IP
39
Ethernet
39
Dynamic DNS
39
Domain Name
39
Pppoe
40
Wireless
41
Snmp
42
MIB System
42
Access Control
42
Manager IP Address
42
Trap Notification
44
Receiver IP Address
44
Trap Type
44
Device Connected
45
Snmp Udp
45
Email
46
Email Setting
46
Recipient’s Email Address (for Event Log)
46
Email Server Requires Authentication
46
Recipient’s Email Address (for Daily Report)
47
Send Email for Daily Report ( Hh:MM)
47
Send Email When Event Log Overflows (500 Records)
47
Send Email When Data Log Overflows (500 Records)
47
To Send SMS by Single Port of Netagent
48
SMS Settings
48
Modem Setting
49
Receiver Cellular Number and Message Content
50
Netswitch (BT Series Only)
50
Netswitch Setting
50
Netswitch Status
51
Netswitch Action
52
Web/Telnet
52
User Account User Name
52
RADIUS Server Settings
53
Enable RADIUS in Web/Telnet Login
53
IP Filter
53
SSL Public Key Information
53
SSL Certificate Information
54
System Time
55
Auto Restart
55
Backup Time
56
Time between Log Backup
56
Netfeeler II
57
Security Label
57
Critical Underrun
57
Critical Overrun
57
Email Preferences
58
Log Information
58
Event Log
58
Date/Time
59
Event
59
Sms
60
Data Log
60
Env. Humidity
61
Save Data Log
61
Help
62
Search Netagent
62
Serial Port Debug
62
Port Information
62
Sent Information
63
Received Information
63
Save/Restore Settings
63
Firmware Update Setting
64
Auto Update
64
Firmware Update
64
6 Telnet (Remote Configuration)
65
Telnet Configuration
65
Introduction
65
Set IP Address
66
Set SNMP MIB System
66
Set SNMP Access Control
66
Set SNMP Trap Notification
66
Set E-Mail
67
Telnet Configuration
67
7 Clientmate - Windows Shutdown Utility
69
Install Clientmate
69
Using Clientmate
69
Config
70
General
70
Host Connection
70
Power Failure
71
Scheduled Shutdown
71
Closed Files
72
AC Power Status
74
Battery Status
74
Status History
74
8 Snmpview - Windows Based UPS Management System
75
System Requirements
75
Install Snmpview
75
Introduction
75
Using Snmpview
76
Snmpview Buttons
77
Enumerate(D)
78
Add UPS
79
Delete UPS
79
Browse Device
80
Export Configuration
80
Import Configuration
80
Open Archive Event Log
80
Open Archive Data Log
81
View(S)
82
Large Icons
82
Small Icons
83
Details
83
Map Background
84
SMS Notification
85
Trap List
85
UPS Monitor
86
UPS Loading
86
Meter
86
Digital
86
UPS Management
89
To Configure SNMP of Its Netagent UPS
89
SNMP Option
90
Change Password
91
User Management
91
9 Appendix A - Update the Firmware of Netagent UPS
93
10 Appendix B -3 Ports Netagent II with SMS Modem
96
GPRS MODEM Installation
99
11 Appendix C -SMS Server with SMS Modme
99
SMS SERVER Software Installation
100
SMS Server Software Configuration
101
Netagent Sends SMS Via Modem
101
